"Hidden Headlamps on the 66/67 Dodge Chargers"
1967 Dodge Charger |
 1966 Dodge Charger |

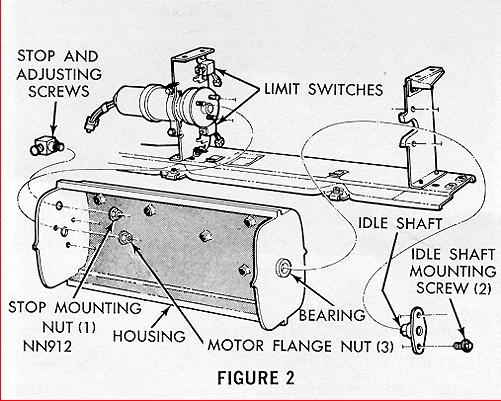

3-D Diagrams of Hidden Headlight Components
|
 |
"Chilton's Auto Repair Manual, Hardcover 1970 Edition"
This includes a Service Diagnostic Chart for troubleshooting headlight problems.
*** PLEASE NOTE ***
This is the "CORRECTED" version of the hidden headlamp circuit.
 |
 |
Service Diagnostic Chart |
|
