POV SCENEFILE
(CSG.POV)
#include "colors.inc"
#include "shapes.inc"
#include "textures.inc"
#include "glass.inc"
#include "metals.inc"
#include "woods.inc"
#include "metals.inc"
#include "stones.inc"
#include "skies.inc"
// define camera locations
camera {
// fisheye view
ultra_wide_angle
angle 150
location <0,1,-3>
up <0,1,0>
right <1,0,0>
look_at <0,1,2>
// Creating blurring effects (optional)
// focal_point <0.5,1.5,1.5>
// aperture 0.05
// blur_samples 4
}
// define multiple light sources
// ambient light
global_settings { ambient_light color White } // color defined in COLORS.INC
light_source { <2,4,-3> color Yellow } // Pointlight source
light_source {
<2, 10, -3>
color White
spotlight // Spotlight source
radius 15
falloff 18
tightness 10
area_light <1, 0, 0>, <0, 0, 1>, 2, 2 // Arealight source
adaptive 1
jitter
point_at <0, 0, 0>
}
light_source {
<10, 10, -1>
color Red
spotlight
radius 12
falloff 14
tightness 10
area_light <1, 0, 0>, <0, 0, 1>, 2, 2
adaptive 1
jitter
point_at <2, 0, 0>
}
light_source {
<-12, 10, -1>
color Blue
spotlight
radius 12
falloff 14
tightness 10
area_light <1, 0, 0>, <0, 0, 1>, 2, 2
adaptive 1
jitter
// Light fading effects
fade_distance 5
fade_power 1
point_at <-2, 0, 0>
}
// background color
background {color SkyBlue}
// draw CSG: (Sphere \ Cone) U Cylinder results in a unusual ice-cream!
union {
difference {
sphere {
<0.5,1.5,1.5>, 0.65 // center and radius of sphere
texture {PinkAlabaster} // texture defined in TEXTURES.INC
normal {bumps 0.4 scale 0.2} // adding bumpiness
pigment {turbulence 0.05} // stirs up pattern for more
// polishing effects
finish {phong 1} // highlight color for shiny effects
}
cone {
<0,1,0>,0.175 // center and radius of one end
<1,2,3>,0.4 // center and radius of other end
texture {Gold_Metal}
pigment {turbulence 0.05}
finish {Shiny}
} // shiny finish
}
cylinder {
<0.5,1.5,0.5> // center of one end
<0,1,0> // center of other end
0.2 // radius of cylinder
scale 1.3 // expand cylinder
translate <-0.2, -0.55, 0.5> // move to appropriate position
rotate <0,-3,0> // rotate to align with sphere
pigment {turbulence 0.05}
texture {DMFWood4 scale 4} // scale wood patterns by same
// amount in all directions
finish {Shiny}
}
translate y*-0.3
}
// make candy tiles
#declare Tile = superellipsoid {
<0.5, 0.5>
scale <1, .05, 1>
}
#declare Offset = 2.1
#declare Row = union {
object { Tile }
object { Tile translate z*Offset }
object { Tile translate z*Offset*2 }
object { Tile translate z*Offset*3 }
object { Tile translate z*Offset*4 }
object { Tile translate z*Offset*5 }
object { Tile translate z*Offset*6 }
object { Tile translate z*Offset*7 }
object { Tile translate z*Offset*8 }
object { Tile translate z*Offset*9 }
object { Tile translate z*Offset*10 }
object { Tile translate -z*Offset }
object { Tile translate -z*Offset*2 }
object { Tile translate -z*Offset*3 }
object { Tile translate -z*Offset*4 }
object { Tile translate -z*Offset*5 }
object { Tile translate -z*Offset*6 }
}
union{
object { Row }
object { Row translate x*Offset }
object { Row translate x*Offset*2 }
object { Row translate x*Offset*3 }
object { Row translate x*Offset*4 }
object { Row translate x*Offset*5 }
object { Row translate x*Offset*6 }
object { Row translate x*Offset*7 }
object { Row translate -x*Offset }
object { Row translate -x*Offset*2 }
object { Row translate -x*Offset*3 }
object { Row translate -x*Offset*4 }
object { Row translate -x*Offset*5 }
object { Row translate -x*Offset*6 }
object { Row translate -x*Offset*7 }
texture { Candy_Cane }
finish { phong 1 phong_size 50 reflection .35 }
}
// create a watery glout
plane {
<0,1,0>,0 // normal to plane
texture {Water}
finish { ambient .4 diffuse .7 }
}
// create hand to hold ice-cream
blob {
threshold .65
sphere { <-.23,-.32,0>,.43, 1 scale <1.95,1.05,.8> } //palm
sphere { <+.12,-.41,0>,.43, 1 scale <1.95,1.075,.8> } //palm
sphere { <-.23,-.63,0>, .45, .75 scale <1.78, 1.3,1> } //midhand
sphere { <+.19,-.63,0>, .45, .75 scale <1.78, 1.3,1> } //midhand
sphere { <-.22,-.73,0>, .45, .85 scale <1.4, 1.25,1> } //heel
sphere { <+.19,-.73,0>, .45, .85 scale <1.4, 1.25,1> } //heel
cylinder { <-.65,-.28,0>, <-.65,.28,-.05>, .26, 1 } //lower pinky
cylinder { <-.65,.28,-.05>, <-.65, .68,-.2>, .26, 1 } //upper pinky
cylinder { <-.3,-.28,0>, <-.3,.44,-.05>, .26, 1 } //lower ring
cylinder { <-.3,.44,-.05>, <-.3, .9,-.2>, .26, 1 } //upper ring
cylinder { <.05,-.28,0>, <.05, .49,-.05>, .26, 1 } //lower middle
cylinder { <.05,.49,-.05>, <.05, .95,-.2>, .26, 1 } //upper middle
cylinder { <.4,-.4,0>, <.4, .512, -.05>, .26, 1 } //lower index
cylinder { <.4,.512,-.05>, <.4, .85, -.2>, .26, 1 } //upper index
cylinder { <.41, -.95,0>, <.85, -.68, -.05>, .25, 1 } //lower thumb
cylinder { <.85,-.68,-.05>, <1.2, -.4, -.2>, .25, 1 } //upper thumb
sphere { <-.65,.28,-.05>, .26, -1 } //counteract pinky knuckle bulge
sphere { <-.65,-.28,0>, .26, -1 } //counteract pinky palm bulge
sphere { <-.3,.44,-.05>, .26, -1 } //counteract ring knuckle bulge
sphere { <-.3,-.28,0>, .26, -1 } //counteract ring palm bulge
sphere { <.05,.49,-.05>, .26, -1 } //counteract middle knuckle bulge
sphere { <.05,-.28,0>, .26, -1 } //counteract middle palm bulge
sphere { <.4,.512,-.05>, .26, -1 } //counteract index knuckle bulge
sphere { <.4,-.4,0>, .26, -1 } //counteract index palm bulge
sphere { <.85,-.68,-.05>, .25, -1 } //counteract thumb knuckle bulge
sphere { <.41,-.7,0>, .25, -.89 } //counteract thumb heel bulge
pigment { Flesh }
scale 0.5
translate <-1,1,0.9>
rotate <0,45,0>
translate y*-0.3
}
// Creating sky effects (sunset)
sky_sphere {
pigment {
gradient y
// color mapping
color_map {
[0.000 0.002 color rgb <1.0, 0.2, 0.0> color rgb <1.0, 0.2, 0.0>]
[0.002 0.200 color rgb <0.8, 0.1, 0.0> color rgb <0.2, 0.2, 0.3>]
}
scale 2
translate -1
}
pigment { // bozo pattern
bozo
turbulence 0.65
// turbulence patterns
octaves 6
omega 0.7
lambda 2
color_map {
[0.0 0.1 color rgb <0.85, 0.85, 0.85> color rgb <0.75, 0.75, 0.75>]
// rgbt = translucent color
[0.1 0.5 color rgb <0.75, 0.75, 0.75> color rgbt <1, 1, 1, 1>]
[0.5 1.0 color rgbt <1, 1, 1, 1> color rgbt <1, 1, 1, 1>]
}
scale <0.2, 0.5, 0.2>
}
rotate -135*x
}
// Creating multiple layers of ground fog
fog {
distance 150
color rgb<0.3, 0.5, 0.2>
fog_type 2
fog_offset 25
fog_alt 1
turbulence 0.1
turb_depth 0.2
}
fog {
distance 150
color rgb<0.5, 0.1, 0.1>
fog_type 2
fog_offset 15
fog_alt 4
turbulence 0.2
turb_depth 0.2
}
fog {
distance 150
color rgb<0.1, 0.1, 0.6>
fog_type 2
fog_offset 10
fog_alt 2
}
// declare rainbow's colors
#declare r_violet1 = color rgbf<1.0, 0.5, 1.0, 1.0>; // rgbf = fogging color
#declare r_violet2 = color rgbf<1.0, 0.5, 1.0, 0.8>;
#declare r_indigo = color rgbf<0.5, 0.5, 1.0, 0.8>;
#declare r_blue = color rgbf<0.2, 0.2, 1.0, 0.8>;
#declare r_cyan = color rgbf<0.2, 1.0, 1.0, 0.8>;
#declare r_green = color rgbf<0.2, 1.0, 0.2, 0.8>;
#declare r_yellow = color rgbf<1.0, 1.0, 0.2, 0.8>;
#declare r_orange = color rgbf<1.0, 0.5, 0.2, 0.8>;
#declare r_red1 = color rgbf<1.0, 0.2, 0.2, 0.8>;
#declare r_red2 = color rgbf<1.0, 0.2, 0.2, 1.0>;
// create the rainbow
rainbow {
angle 42.5
width 5
distance 1.0e7
direction <-0.2, -0.2, 1>
jitter 0.01
color_map {
[0.000 color r_violet1]
[0.100 color r_violet2]
[0.214 color r_indigo]
[0.328 color r_blue]
[0.442 color r_cyan]
[0.556 color r_green]
[0.670 color r_yellow]
[0.784 color r_orange]
[0.900 color r_red1]
}
}
// Creating text
difference {
box { <-3.5, -1, 0.1>, <3.5, 1, 1>
texture { T_Stone10 } // stone texture defined in STONES.INC
}
text { ttf "timrom.ttf" "ICE-CREAM" 0.15, 0
pigment { BrightGold }
finish { reflection .25 specular 1 }
translate -3*x
}
scale 0.2
translate y*0.1
}
// Creating right ice-cube
superellipsoid {
<.1, .1>
texture { Glass2 }
scale 0.2
translate 0.6
translate x*0.5
}
// Creating left ice-cube
superellipsoid {
<.1, .1>
texture { Glass2 }
scale 0.2
translate 0.6
translate x*-1.4
}

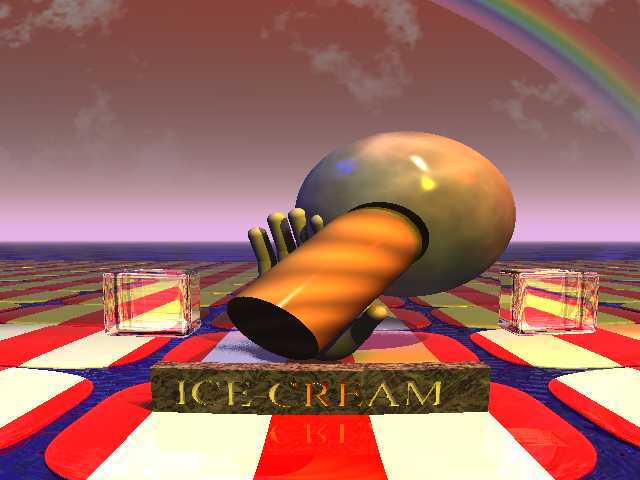

POVRAY-Trace 3.1 Render Output:
