This was the third annual nyNoise show, and I was lucky to be part of all
three. This year I showed off a really cool Single-Ended 833A amp. You
can see some pictures on Steve's web site (I was in the Second Group of

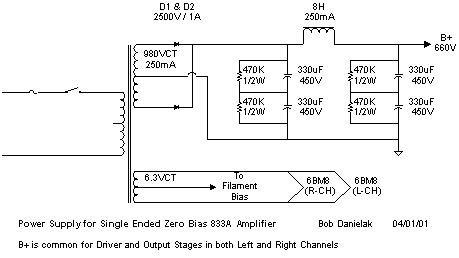

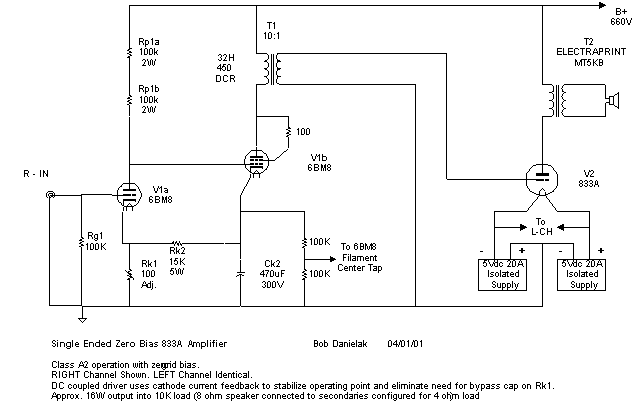

The schematic for the SE 833A amp is shown HERE. The schematic for its power supply is shown HERE.
I also demo'ed my Automotive
Tube Amp (see link above) to the folks outside the event. I got a great
parking spot right outside Arlene's Grocery, but wound up getting a parking
You can see the nose of my Fiat X1/9 (with tube amp inside) in one
of the pictures on Steve's nyNoise
This year I tested the other end of the power spectrum by building a Stereo
3CX300A1 100W amplifier. Scroll down about 1/2 down the nynoise2000 pace
to see a picture. The schematic is shown HERE.
some point I will add some detail for this amp, but it is loosely based
upon my "Beast"
referenced elsewhere on this page.
