Bundeswehr Chronograph: Wristwatch with Flyback Function

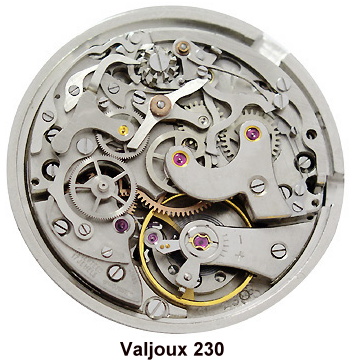

Heuer (pronounced hoyer) built several thousand of these in contract batches from 1967-1981 for the West German military, replacing Hanhart and other makers. They were issued to aid in combat and navigation timing. 3H and T tritium luminous paint symbols used during the 1960's, no longer legally needed but the proofs are sometimes used to make a watch look more militant. Similar Sinn 156 were available after production ended on the Swiss Heuer. Different looking Tutima, among others, were issued that used the same automatic movement as the Sinn. German Sinn still makes cases and "15 30 45" bezels that are identical to original. Mine wasn't issued to a West German soldier but it was made to 1960's NATO Mil-Spec regardless of when it was put together. Band: 6645-12-145-6415 Bund, 4 screw back: BUNDESWEHR 6645-12-146-3774. Heuer-Leonidas S.A. Biel, Switzerland (inside case). Based on the 1916 caliber 23, Valjoux 230: 17 jewels, manual wind, 36 hour power reserve, 18,000 bph, incabloc shock, plastic crystal, water resist 3 ATM. I've noticed the bridge designs interchange between various older Valjoux components but am not qualified to comment as to why, doesn't seem to be by type or date. China makes good unlicensed copies of the Heuer/Sinn military case and strap that are visually similar to the European made, movements themselves can't be cheaply faked. Link to a scanned tech manual.

Dimensions: 51mm long x 43mm wide (minus stem) x 14mm thick (15.5mm w/leather protector). I bought April 2005.


Military Automatic 08/15 Ges. Gesch. Nr. 827761

Mechanical watch built by Glycine that sold for US$75 alongside more expensive watches and cheaper quartz, got it in Penzberg, West Germany. November 1989. Swiss Harley Ronda 2538: 22 jewels, microrotor automatic, 38 hour reserve, 21,600 bph, incabloc, Discu-safe snap case, plastic crystal, water resist 5 ATM.

Dimensions: 43mm long x 37mm wide (minus stem) x 9mm thick.


Limes Nightflight 2

Favorite watch I wear most. Top quality lower costing model (compared to glitzy manufacturers) I've enjoyed since May 2000. Lost an original screw but a brass replacement fits fine. Limes (pronounced leemess) has an American representative office in Los Angeles. Built in Germany with a modified Swiss ETA 2824-2 movement: 25 jewels, automatic wind, 40 hour reserve, 28,800 bph, incabloc, 6 screw view back, mineral crystal, water resist 50M with screw down crown.

Dimensions: 48mm long x 39mm wide (minus stem) x 11mm thick.
