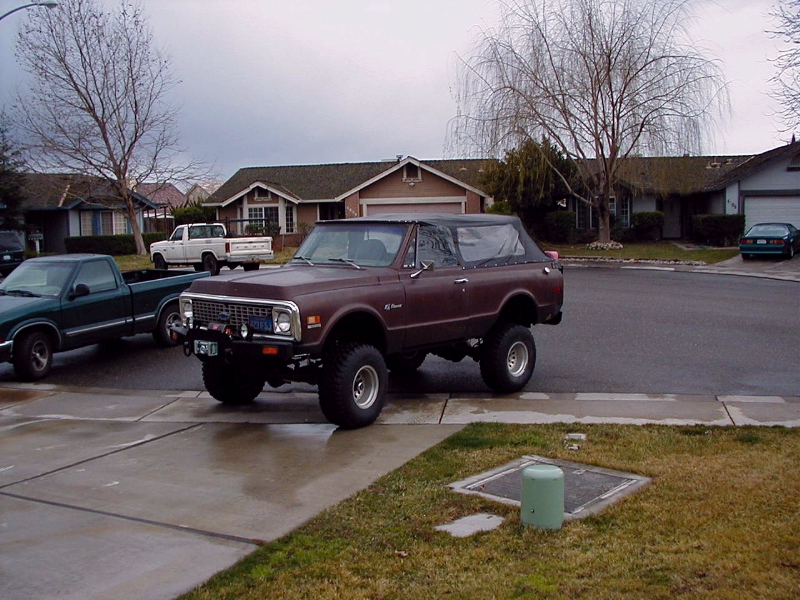

MY 1972 CHEVY K5/BLAZER

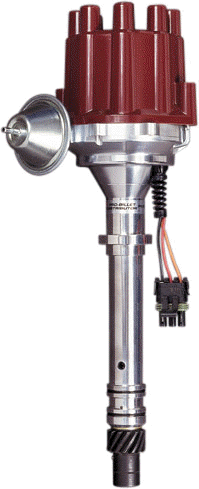

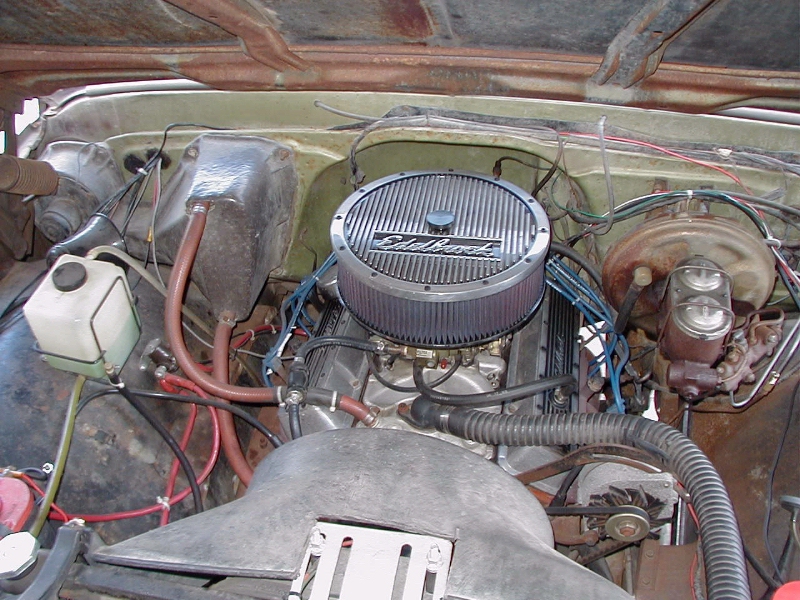

This weekend warrior has a rebuilt 350 with a 750cfm Edlebrock Q-Jet, Performer intake, MSD Pro-Billet Distributor w/ BlasterII coil and MSD 6A box, 1.94/1.50 heads, RV type cam, TRW Flat Top pistons and 4" K&N Filtercharger! Dual Optima 800U batteries with the Awesome Hellroaring BIC isolator/combiner. The exhaust goes through Headman headers, 2 1/2" pipe and two chamber Flowmaster mufflers!

A SM465 4 Speed with Granny low is mated to the 350 with a CenterforceII clutch kit and the NP205 T-Case; Front axle is a Dana 44 with Power-Lock & Dana 4.09 R&P, Warn 30 spline ChromeMoly axelshafts w/297 UJoints, ORD Heavy Duty front shakels, ConFerr super skid axel truss, Rancho 4" front springs, aftermarket sway bar w/ Persson Tuff disconnects. The Rear is a Dana 60 with a Power-Lock & Dana 4.11 R&P and Mark Williams 1 3/4" 35 spline axle shafts, ORU diff cover, Superlift 5 1/2" rear springs w/RS9000s all four corners, 3" body lift w/Energy body mount kit, and 33" Dunlop Mudrovers being controlled by a Borgeson u-joint style steering shaft with the help from RockStomper's RockRod (unbendable tierod)!         Much Much More.................................

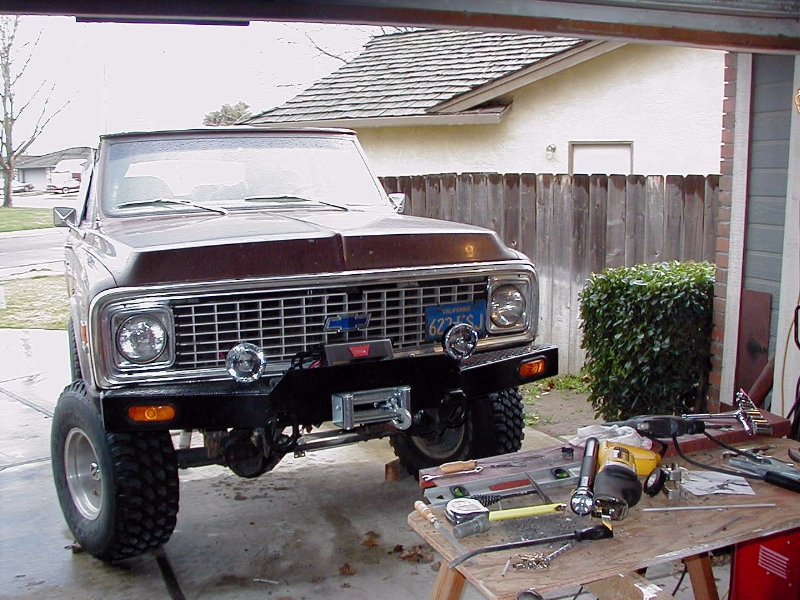

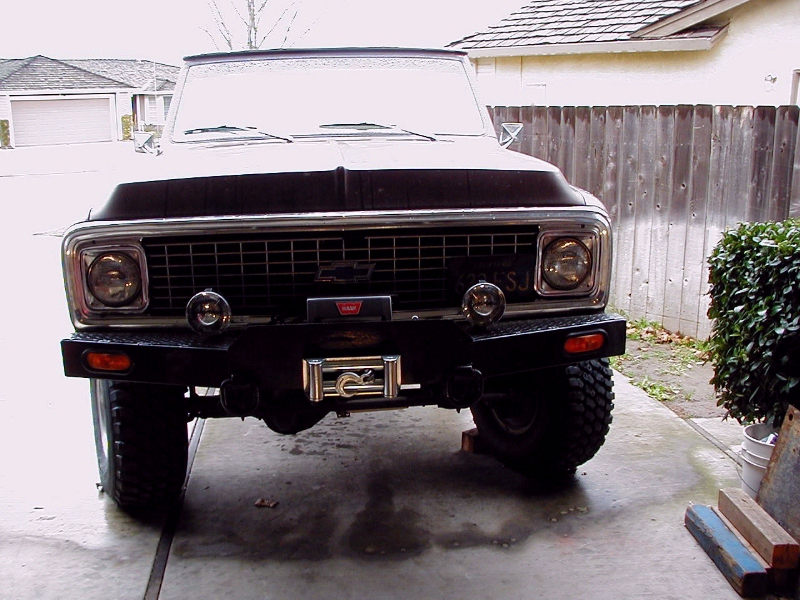

        Finally got my Warn HS9500i. :-)                          The boys at Pismo Dunes sand wrestling!

Also added two LightForce off-road lights                I love the way this turned out! Just like my vision.

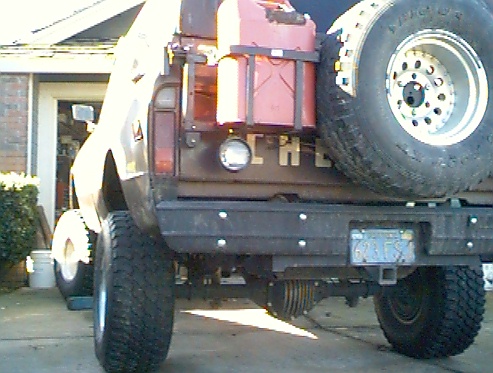

Look , Dana60      Ohyaa!

Would you like to place your 4x4 on my site? email me some photos w/description!

Warn HS9500i install                            Tate's 72 CST

Louie's trail worthy Jimmy                        Pismo Dunes 2000

Bill's '75 Custom Camo                     Bob's '72 CST Feathers

E-Mail me with your comments or questions: BURT4X4
