Charlottetown Image Statistics

Here are some statistics for each of the images displayed on this site for Charlottetown. Such statistics come in the form of histograms which show the percentage of pixels that have a certain value, such as 0 to 255.

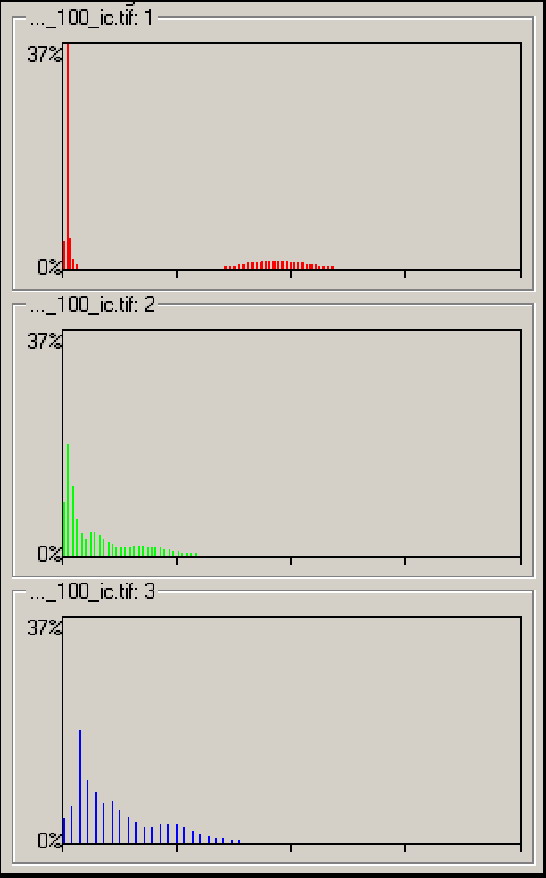

Figure 5.1: The histogram for Figure 3.1, the infrared image of Charlottetown.

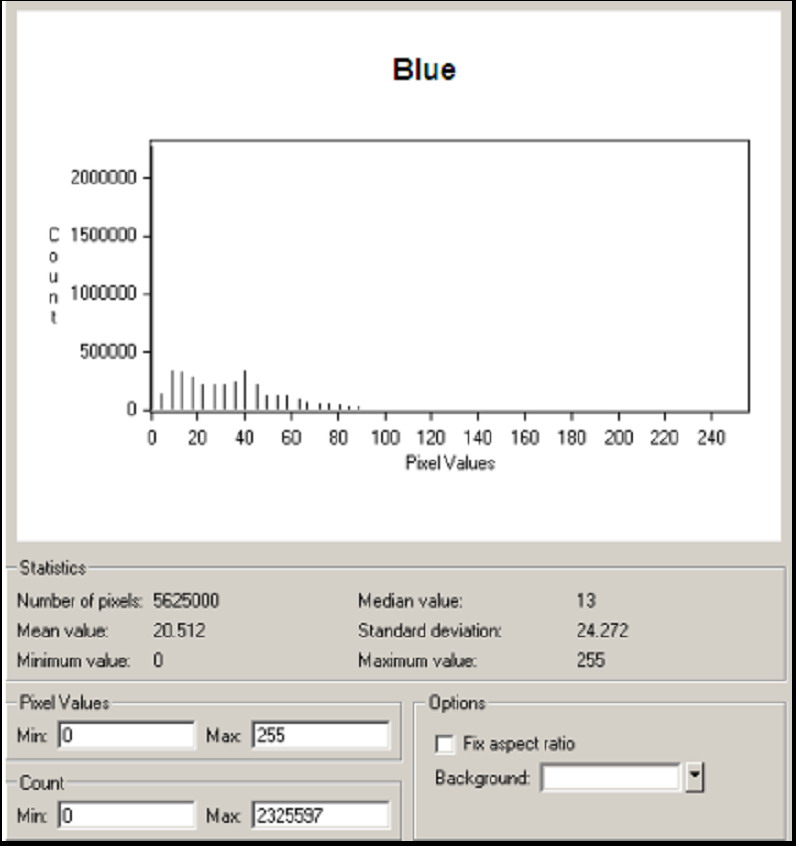

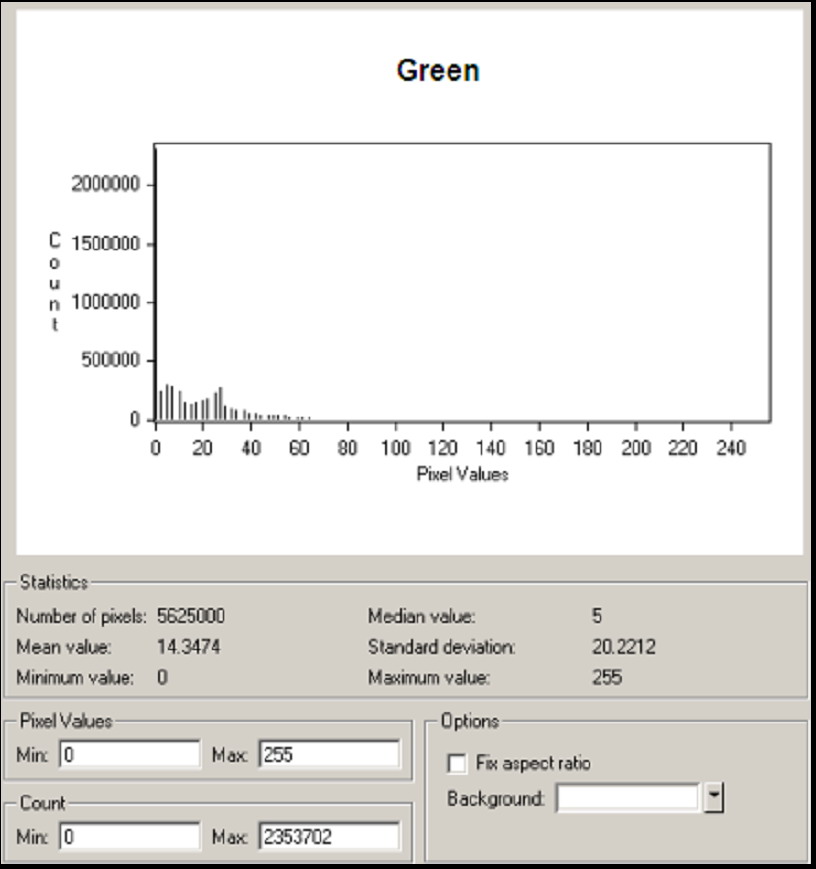

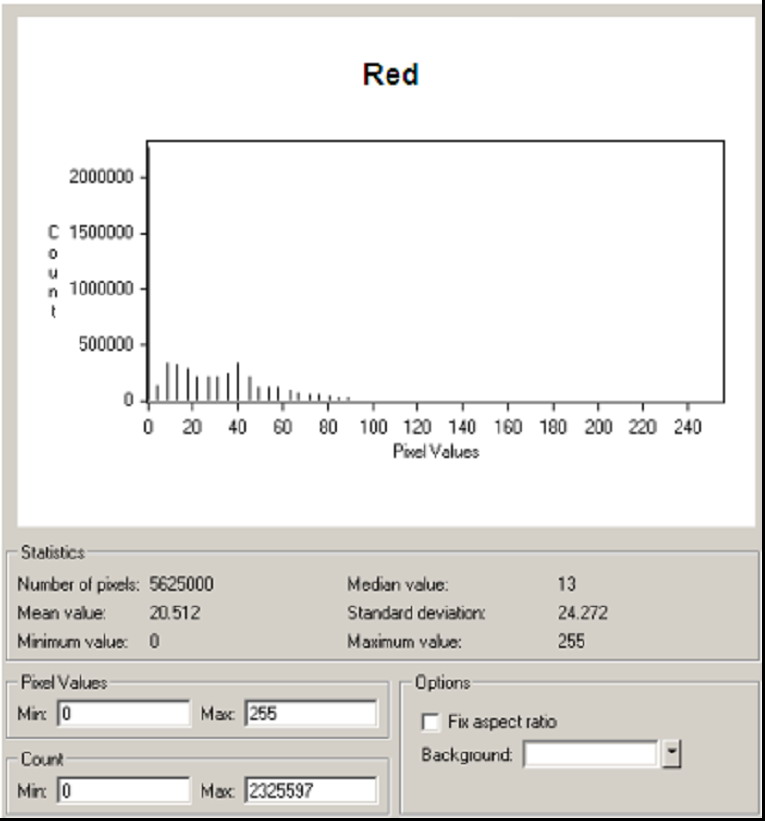

Figure 5.2: Specific statistics for the red, green, and blue channels for Figure 5.1. The maximum and minimum values are shown, as well as mean values for pixels.

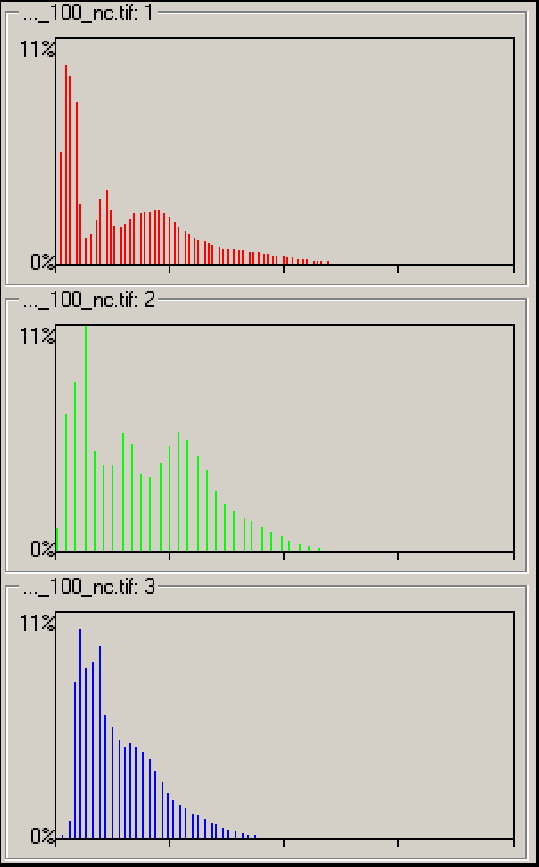

Figure 5.3: The histogram for Figure 3.3, the natural colour composite image of Charlottetown.


Figure 5.3: Specific statistics for the red, green, and blue channels for Figure 5.2. The maximum and minimum values are shown, as well as mean values for pixels.

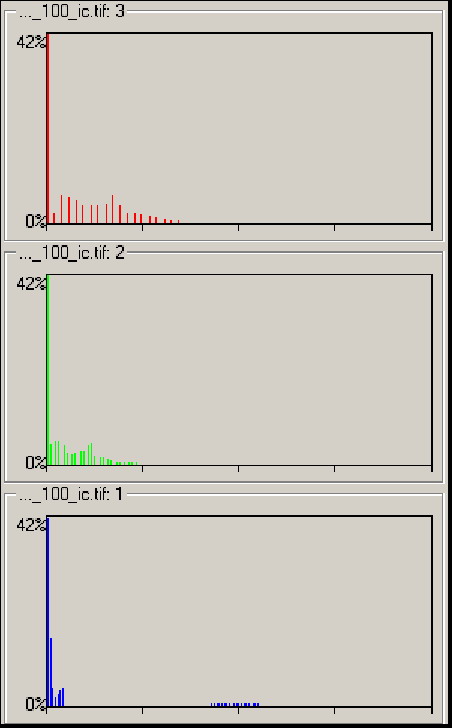

Figure 5.4: The histogram for Figure 3.4, the different spectral band combination image of Charlottetown.


Figure 5.3: Specific statistics for the red, green, and blue channels for Figure 5.2. The maximum and minimum values are shown, as well as mean values for pixels.

All three histograms and their statistics show that much of the images are comprised of darker pixels than brighter ones. For example, by looking at Figure 5.4, one will notice that a high percentage of the pixels are situated to the left of the graphs. These pixels are dark because much of the surface under study did not reflect wavelengths back from the surface. Instead, they absorbed the radiation. This is especially true for deep water bodies. However, Figure 5.3, a histogram for the natural colour composite image, shows a more varied range of pixels values.
