Separation of Sodium Perchlorate from cell liquor

The diagram below shows the mutual solubility of Sodium Chlorate and Sodium Perchlorate. It give an idea of what amounts of product that will be expected to crystallise out of a solution if you know what the concentrations of the salts are. Sodium Perchlorate can be isolated in different hydrates from the liquor, the common one is the mono hydrate. The anhydrous form will be precipitated out of solution if the concentration of Perchlorate is high and the temperature of the solution is above 52C (the exact temperature depends on the concentration of Perchlorate present in solution).

From looking at the graph you can see that Sodium Perchlorate is very soluble indeed and the only really sensible way to get it out of solution is to concentrate the solution by boiling away lots of the water. If you have run your Perchlorate cell for long enough for to convert most of Chlorate to Perchlorate and then destroyed the remaining Chlorate using chemicals you can simply boil all the water away.

[DIAGRAM OF MUTUAL SOLUBILITY OF Na CHLORATE AND PERCHLORATE]

The graph above is a simplified version of the original graph which can be viewed below.

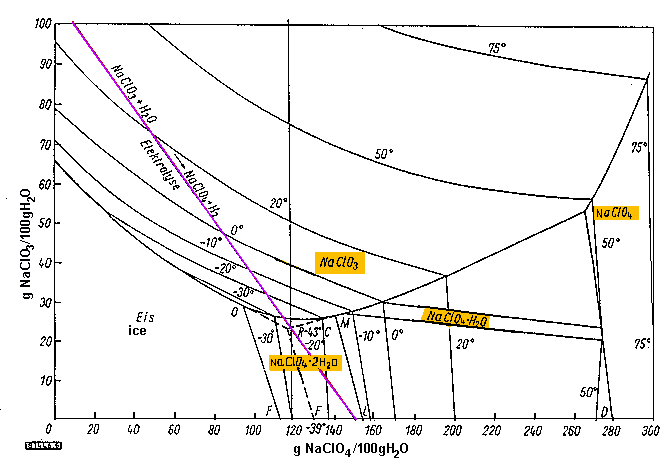

The graph below is somewhat complicated because of the fact that Sodium Perchlorate will ppt out of solution in different hydrates, of zero, one and two water molecules. This depends on concentration and temperature.
The blue line represents a solution of Sodium Chlorate being electrolyzed.
The top end of the line cuts the Chlorate axis at 110g/100ml water. At 110 grams chlorate per 100ml water we have a 52% solution which is about 760 grams per litre solution which is what is usually the starting concentration of Chlorate (for Perchlorate making). This gives about 126.5 grams of NaClO4. However, this requires another 16.5 grams of oxygen to be added, which comes from about 18.6 grams (ml) of water. The result is 126.5 grams of NaClO4 per (100 - 18.6 = 81.4) grams of water, or 155 grams of NaClO4 per 100ml of water. This is the point at where the bottom end of the graph cuts the Perchlorate axis.

[DIAGRAM OF MUTUAL SOLUBILITY OF Na CHLORATE AND PERCHLORATE SHOWING DIFFERENT HYDRATES OF PERCHLORATE THAT WILL PPT]

The source of this graph is:
A Legendre,"Herstellung von Perchloraten durch Elektrolyse", Chemie-Ing.-Techn. 34, 1962, number 5, page 379.

In regard to the removal of Perchlorate hydrates see also the text by Paul Pascal, New Treatise on Inorganic Chemistry. Vol. II, No. 1, p. 353 and FIG. 37 (1966), which reports the ternary NaClO4 /NaClO3/H2O diagram.
