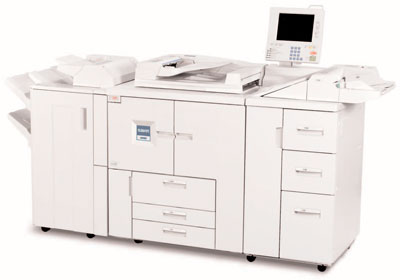

The Savin 4090 Multi-Function B&W Copier. With per-page costs comparable to duplicators, and the addition of a 15-sheet bookletmaker, D&J Copymasters are now able to deliver even faster turnarounds for black-&-white documents on standard 20lb paper, 60lb offset, 67lb bristol and even 80lb cover paper.The 4090 is a serious workhorse that can get the job done with minimal time required to oversee its operation. With the addition of the Adobe® Postscript Level-3 RIP, we can take your documents (see the file guide) directly from your floppy disk, Zip100/250 disk, CD-R/RW or email and send it straight to the machine.
| 4090 Copier Specifications | |
| Printing Process | 4 Way Laser Diode Array, Dry Process (Dual Component) |
| Reading Element | 4 Channel CCD Array |
| Copy/Print Resolution | 1200 x 1200 dpi |
| Scanning Resolution | 600 dpi |
| Gray Scale | 256 Levels |
| Document Server | Storage up to 15,000 Pages |
| Speed | First Copy: 3.5 Seconds (platen) Continuous Copy Speed: 90 copies/minute Multiple Copy: Up to 9,999 |
| Original/Copy Size | Original Type: Book/Sheet Original Size: Up to 11" x 17" Copy Size: 5.5" x 8.5" to 11" x 17" Copy Type: Plain Paper, Transparencies, Tabs, Index, Covers |
| Duplex | Type: Four Pages Stackless Interleave Capacity: Unlimited Paper Size: 5.5" x 8.5" to 11" x 17" Paper Weight: 20 lb. Bond - 90 lb. Index Reduction/Enlargement: 25%, 50%, 65%, 73%, 78%, 85%, 93%, 121%, 129%, 155%, 200%, 400% plus two user programmable ratios |
| Zoom | 25% - 400% in 1% increments |
| Warm Up Time | Less that 360 seconds |
| Quantity Indicator | 1 to 9,999 |
| Dimensions (W x D x H) | 82.8" x 33.8" x 58.1" (Main Frame) 91.3" x 33.8" x 58.1" (Full System) |
| Weight | 859.4 lbs. |
| Paper Supply (Standard) | Paper Feed: 1,000 Sheets x 2 Trays (Tandem Tray) 500 Sheets x 2 Trays Paper Size: 5.5" x 8.5" - 11" x 17" (12" x 18" with Optional Bypass Tray) Paper Weight: 16 lb. Bond to 90 lb. Index (depending on Tray) Total Capacity: 8.050 Sheets (with Optional LCT and Bypass Tray) |
| Standard Accessories | |
| Auto Reversing Document Feeder |  |
| Original Feeding Speed | 80 OPM |
| Original Size | 5.5" x 8.5" to 11" x 17" |
| Original Weight | 16 - 42 lb. Bond (Simplex) 16 - 34 lb. Bond (Duplex) |
| Original Stack Capacity | 100 Sheets |
| Document Server Specifications | |
| Number of Jobs | Up to 3,000 |
| Number of Pages | Up to 2,000 per Document |
| Maximum Capacity | 15,000 Pages |
| Supported OS | Win 95/98, Win ME, Win NT 4, Win 2000, Win XP, Macintosh, UNIX |
| Supported Printer Languages | PCL5e, PCL6 and RPCS; Postscript 3 (Option) |
| Document Server Features | Booklet and Magazine Mode, Printing, Sample Sets, Change File Name, Save Printing Conditions, Connect Copy Print, Set Password, Job Preset (10 Jobs), Merge File, Sort By User ID or Time, Search by Document File Name |
| Document Editor Functions | Change File Name, Delete File, File Insertion, Delete Page, Insert Page, File Merge |
