Modifications-/Improvements-/Adjustments

Information

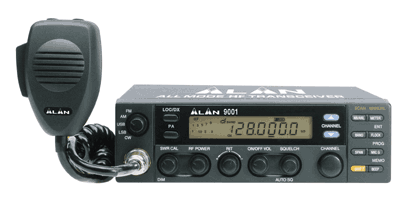

Alan 9001

Emperor TS-5010 "Shogun"

Sommerkamp TS-5010

Frequency Expansion

Open the radio

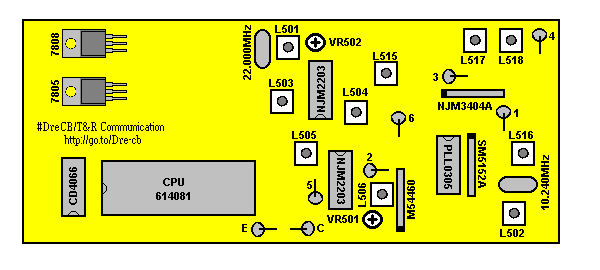

Find CPU Board
On the CPU PCB, find resistors R 539 and R 540
Remove them, or cut one side of them

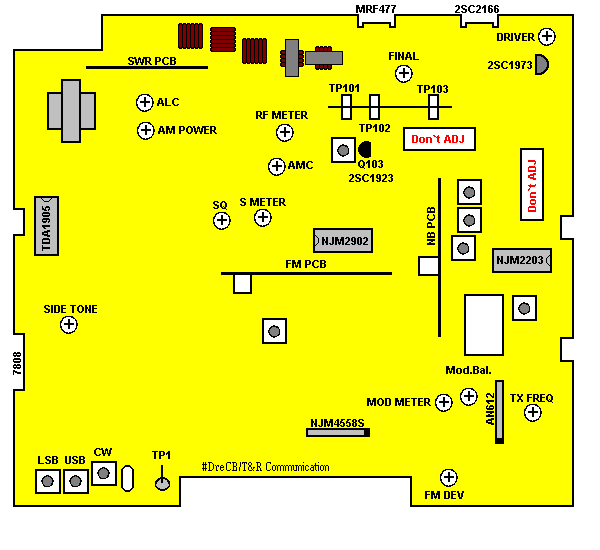

Adjustment Information



Audio Limiter - R247

VR 101 - Squelch

VR 102 - S-Meter

VR 103 - SSB Power

VR 104 - CW

VR 105 - Carrier Balance

VR 106 - FM Deviation

VR 107 - Modulation Meter

VR 108 - TX Freq.

VR 109 - RF Meter

VR 110 - AM Modulation

VR 111 - AM/FM Power

VR 112 - Final BIAS (MRF477 60 mAmp.)

VR 113 - Driver BIAS (2SC2166 60 mAmp.)

 Mike Wiring :

1 - AUDIO

2 - GROUND/MASSA

3 - TX

4 - UP

5 - DOWN
