Main Print
| Reading Point | Adjustment | Description | Value |
|---|---|---|---|

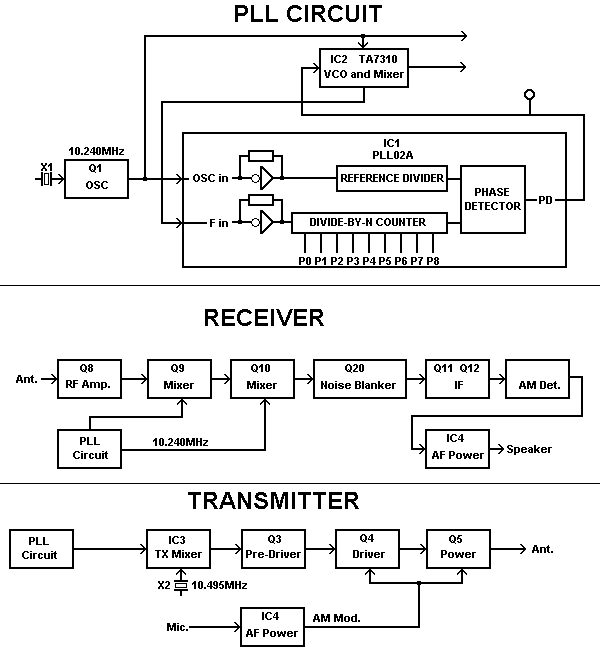

| OSCILLATOR | |||
| CT1 | 10.240MHz | ||
| Check | 10.495MHz | ||
| TP | VCO-Coil | VCO DC Voltage | 2,5 Volt @ 27.175MHz |
| RECEIVER | |||
| T5 | RF Input | ||
| T6 | RF Input | ||
| L14 | 1st IF | 10,7MHz | |
| T7 | 1st IF | 10,7MHz | |
| T8 | 2nd IF | 455kHz | |
| T9 | 2nd IF | 455kHz | |
| T10 | AM Detector | 455kHz | |
| TRANSMITTER | |||
| L2 | PLL Output to Converter | ||
| T2 | PLL Output to Converter | ||
| L5 | Transmitter Output | ||
| T3 | Transmitter Output | ||
| T4 | Transmitter Output | ||
| L11 | Transmitter Output | ||
| L12 | Transmitter Output | ||
| METER | |||
| RV4 | RF Power Meter | ||
| RV501 | SWR Meter | ||
| RV3 | RF S-Meter | ||
| . | |||
| RV1 | Squelch | ||
| RV2 | AM Modulation | 90% |
