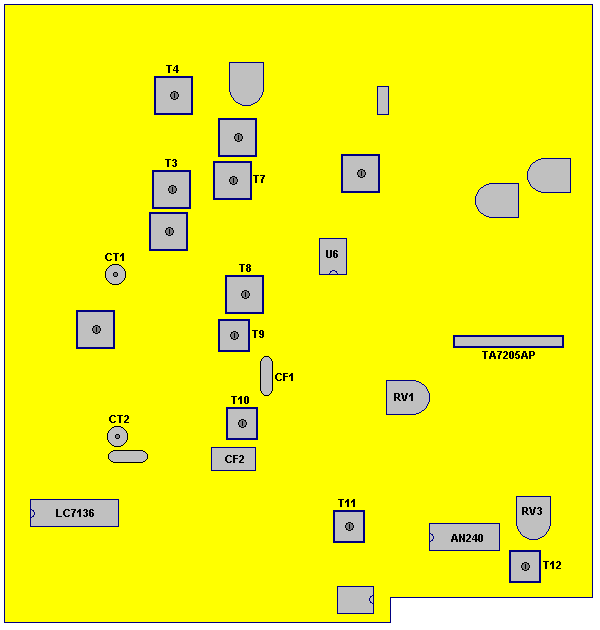

MainPrintnr. PTBM134A0X

Adjustment

CT2 10.240MHz Reference Frequency
T1 VCO Coil

T6 RF Input
T7 RF Input
T8 IF 10.7MHz
T9 IF 10.7MHz
T10 IF 455kHz
T11 IF 455kHz

T12 FM Discriminator (Demodulator)
VR2 FM-Deviation (FM-Modulation)

T2 Transmitter
T3 Transmitter
T4 Transmitter
