Arguments Against The Dinosaurian Ancestry of
Birds
Bird Ancestors: A Shrinking Temporal Discordance
Several creationist authors have argued that the bird-like theropod taxa
are actually 20 million years younger than Archaeopteryx, and that
this is evidence against the theropod ancestry of birds. A review of how
this time discordance argument has evolved over the past decade reveals
its weakness. It is true that until rather recently, bird-like dinosaurs
were known only the mid-late Cretaceous (e.g. Velociraptor mongoliensis),
in deposits much younger than those containing Archaeopteryx.
For instance, as recently as the mid 90's, opponents of the theropod-bird
hypothesis were saying that "most of the supposed similarities between
urvogel and dinosaurs are seen in birdlike dinosaurs that lived 80 to 100
million years later" (Feduccia, 1994, p. 32). By 1996, they were musing
that, to theropod-bird proponents "it is inconsequential that birdlike
dinosaurs occur some 75 million or more years" after Archaeopteryx
(Feduccia, 1996, vii). And by 1999, the gap closes even further, and Feduccia
(1999, p.4740) wonders "why these superficially birdlike theropods only
occur in the fossil record 30 to 80 million years after the appearance of
the earliest known bird." Now, creationists and other opponents of the
theropod-bird hypothesis are arguing for a discordance of 20 million years.
And not surprisingly, more recent finds show that even this is a slight overestimate,
since Sinovenator, a very bird-like theropod from from the lowest
part of the Yixian Formation, dates to 128Ma, making it 17 million years
younger than the Archaeopteryx specimens from the Jurassic of Germany
(Xu et al, 2002). So, the time discordance has been dramatically reduced,
from 80-100 million years, to 75 million years, to 30 million years, to
17 million years.
And despite the rarity of fossil lagerstatten, and particularly of well-preserved
fossil birds in general (note that both Archaeopteryx and the Liaoning
theropods are from rare lagerstatten), there is now suggestive but incomplete
fossil evidence that some of the bird-like theropod groups, such as dromaeosaurs
(the same family of theropods as many of the Liaoning 'dino-birds'), did
in fact exist prior to Archaeopteryx. Witmer (2002, p. 19) notes:
There are much greater time discordances in the dinosaur fossil
record (Sereno 1997b, 1999a) than this one. But, moreover, there are a variety
of of fragmentary specimens (mostly teeth) of animals that closely resemble
those of dromaeosaurids and troodontids recovered from Middle Jurassic deposits
that predate Archaeopteryx by 20My (Evans and Milner, 1994; Metcalf and Walker,
1994). Similarly, Zinke (1998) reported an extensive collection of theropod
teeth from deposits perhaps just slightly older than Archaeopteryx; Zinke
made firm assignments of these teeth to Dromaeosauridae (29 teeth), Troodontidae
(14 teeth), and Tyrannosauridae (3 teeth). Finally, Jensen and Padian (1989)
described fragmentary but provocative skeletal material of maniraptoran
theropods from the Late Jurassic Morrison Formation.
Also, there are some curious features of the critics' positions that should
be pointed out. For instance, from an 'old earth' perspective, which accepts
the validity of radiometric dating and stratigraphic correlation, the weakness
of the argument is demonstrated by ghost lineages and lazarus taxa. These
are taxa that are known from time A and from time C, but are not known from
intervening time B. Naish (1998) gives the example of the champosaurs, for
which there are ghost lineages of at least 45 million years long, from the
late Triassic to the middle Jurassic. And then of course there is the infamous
coelacanth, for which there is a ghost lineage of about 65 million years.
So unless Ross and other old-earth creationits hold that these taxa were
created, then went extinct, and then were created once again tens of millions
of years later -- unless they want to take that position, which seems unlikely-
then they would have to acknowledge that whatever time discordance does
exist for the theropod-bird hypothesis is not good evidence against that
hypothesis.
Finally, for Feduccia to complain of a temporal discordance is somewhat
hypocritical. As Brochu and Norell (2000) point out, when you consider all
of the proposed models for the ancestry of birds, including those of Feduccia,
and consider the consistency of all of the nodes in the cladogram with the
stratigraphic record, then the theropod hypothesis actually compares favorably
to all the alternatives.
The 'Collagen Fibers' of Sinosauropteryx?
One rather strange idea that seems to be widely accepted amongst creationists
is that the fibers of Sinosauropteryx are not integumentary structures
at all, but frayed collagen fibers that in life were part of a dermal frill.
According to one creationist article:
A remarkable fossil find from the Yixian formation in China revealed
the theropod dinosaur called Sinosauropteryx, which was nicknamed the "feathered
dinosaur." Subsequent studies have indicated that the feathers were probably
"frayed collagenous fibers beneath the skin."6 (Demise of the
'Birds are Dinoaurs' Theory).
Let's start with the reference, which is wrong. Reference 6 is to a commentary
in the journal Science by Gibbons, and does not include the quoted text.
However, it does make a reference to the now-refuted hypothesis (Geist 1997;
Feduccia, 1999), that the feathery structures of Sinosauopteryx were
not feathery at all, but rather were "frayed collagenous fibers from
beneath the skin" that were originally part of a dermal frill running
along the dorsal midline of the body. This was proposed following the discovery
of the first specimen of Sinosauropteryx prima, a dromaeosaurid theropod
with filamentous structures evident around the body. This claim was highly
questionable even when it was proposed, and more recent specimens from the
same deposits show that such a interpretation today is wholly untenable.
For one thing, even in the first described specimen, the feathery fibers
were not limited to the animal's sagittal plane, since the animal's head
is rotated slightly to the right, and the fibers thus interesect the left
dorsolateral surface of the skull rather than the sagittal plane. Moreover,
subsequently discovered specimens of Sinosauropteryx described by
Chen et al (1998) showed the filamentous structures not only along the dorsal
surface of the neck and back, as might be expected for a dermal frill, but
also along the margins of the tail, with patches on the side of the skull,
humerous and ulna.
In addition, other nonavian theropods from the same deposits, for instance
the therizinosaur Beipiaosarus inexpectus, have the same type of simple
filamentous structures as Sinosauroptryx prima present on both fore-
and hindlimbs, a distribution which again is clearly inconsistent with their
having been part of a sagitally-placed dermal frill. While these structures
are not identical to feathers of modern birds, they may well be feather
homologues and/or represent a primitve stage of feather evolution. These
structures are in fact integumentary structures, they were on the outside
of the skin, they clearly did not run down only the dorsal midline of the
body like a dermal frill, and both macroscopically and under magnification
they look nothing like collagen fibers. Also interesting in this context
is the report by Schweitzer et al (1999) that the filamentous structures
preserved around the head of Shuvuuia deserti were both hollow and
composed of beta keratin. If both observations are correct, then these structures
may well have been feather homologues, since feather rachi are the only type
of integumental cover that is both hollow and composed of beta keratin. At
present it is not possible to say how widely distributed such structures
were amongst dinosaurs, but they may have been more widely distributed than
previously assumed.
More importantly, recently discovered theropods show a more complex integumentary
structure, with complex branching, in some cases covering nearly the entire
body (e.g. Ji et al, 2001; Xu et al, 2001). Examples include Sinornithosaurus
millenii, Microraptor zhaoianus, and Microraptor gui
(Norell, 2002; Xu et al, 1999; Xu et al, 2000; Xu et al, 2003). Regarding
the integumentary structures present on the dromaeosaurid theropod Sinornithosaurus
milenni, Xu et al (2001, p. 200) noted the presence of "two types
of branching structure that are unique to avian feathers: filaments joined
in a basal tuft, and filaments joined at their bases in series along a central
filament." Feathers are the only known branching integumental structures
in vertebrates, and the structure of the 'feathers' of Sinornithosaurus
millenii match extremely well stages II and IIIA predicted by Prum's
(1999) developmental model of feather evolution. Also, though barbules are
not evident in these specimens, they may well have been present, given how
well-ordered the barbs are (without barbules, the barbs would be much more
clumped together). The newly described specimens of the newly described species
Microraptor gui, specimens IVPP V13352 and TNP00996, not to be confused
with Microraptor zhaoianus, are even more compelling (Xu et al, 2003; Prum,
2003). Here we have a theropod which can be "unequivocally referred to
Dromaeosauridae" (Xu et al, 2003, p. 336) possessing unequivocal 'avian'
feathers (see for instance, figure 2e in Xu et al, 2003). One of the interesting
features of is the presence of feathers on both forelimbs and hindlimbs,
making it the only known 'tetrapteryx.' This provides evidence that Microraptor
gui may well have been capable of gliding, consistent with an arboreal
origin of bird flight, making Microraptor gui signifcant as both
a morphological and a functional intermediate form.
Dinosaur Lungs
Based on Ruben et al (1997, 1999), many creationist websites claim that
theropod dinosaurs had crocodile-like pelvovisceral muscle pump (aka 'hepatic
piston') rather than the air-sac complex typical of modern birds, that
a transition from a crocodile-like lung to a bird-like lung is impossible,
and therefore that theropod dinosaurs could not have been ancestral to Archaeopteryx
and to later birds. As we'll see, however, the skeletal morphology morphology
of theropods, far from demonstrating the presence of a croc-style pelvovisceral
pump, actually strongly suggests just the opposite. Finally, the soft-tissue
evidence for pelvovisceral pump ventilation in theropods is entirely unconvincing.
Pelvic Morphology
Ruben et al are apparently the source for the rather absurd claim that
the pelves of crocodiles and theropods are very similar to each other but
are dissimilar to the pelves of Archaeopteryx- the point being that
the orientation of the pubis in theropods suggests possession of the pelvovisceral
pump lung, while the orientation of the pubis in Archaeopteryx is
inconsistent with this taxon having possessed this type of lung. One creationist
author writes:
. . . the pelvic bones of the theropod dinosaurs look nothing
like that of either modern birds or Archaeopteryx, but look very similar
to that of modern reptiles, such as the crocodile. There is no way for the
pubis of modern reptiles or the theropod dinosaurs to serve as an attachment
point for suprapubic muscles to serve in assisting breathing during perching.
Since there are no "intermediate" theropod which possesses a pelvic structure
similar to Archaeopteryx, it seems unlikely that they could have given rise
to Archaeopteryx (Demise of the
'Birds are Dinosaurs' Theory).

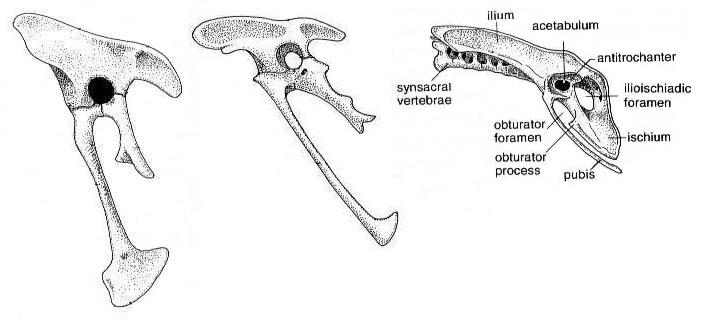

This is inaccurate on essentially every count. Below are three pelves. From
left to right, they belong to the dromaeosaur Deinonychus, Archaeopteryx,
and Aquila (Golden Eagle).
The reconstruction of Archaeopteryx's pelvis in Ruben et al (1997),
which is the source for several of the claims made in their paper and on
the website quoted above, is inaccurate. Ruben et al's figure 6b shows the
pubis of Archaeopteryx rotated backwards and nearly parallel with
the ischium, very similar to the condition seen in modern birds. But this
reconstruction of Archaeopteryx's pelvis is inaccurate and outdated,
based on the London and Berlin specimens. In all 3 of the specimens of
Archaeopteryx in which the pubis is well-preserved, the pubis is
oriented nearly vertically, or offset only slightly posterodorsally, as
is typical of most theropods, and is not nearly as retroverted as shown
as Ruben et al (1997). Elzanowski (2002) in his recent review of the Archaeopterygidae
comments that in the Maxberg, Eichstatt, and Munich specimens, the pubis
is nearly vertical. This is signficant, because the pelvis of Munich specimen
is clearly well preserved and the pubis is not broken from the ilium. Elzanowski
(2002, p. 144) writes:
The well-preserved pelvis in the Munich specimen (Wellnhofer,
1993) confirmed that the pubis was directed nearly vertically downward
as in Unenlagia (Novas and Puerta, 1997) and Rahonavis (Forster
et al, 1998). The pubis was only slightly retroverted, forming a cranial
angle of 110d with the long axis of the ilium (Wellnhofen, 1985). The caudal
orientation in the London and Berlin specimens is due to a dislocation
in the acetabulum . . . Whatever the exact angle, the orientation of the
pubis is intermediate between neornithines and the majority of nonavian
theropods, except for therizinosaurids and dromaeosaurids, which have the
pubis strongly retroverted (Norell and Makovicky, 1997). Ruben et al's (1997)
speculations about pulmonary ventilation in archaeopterygids being different
from that of the nonavian theropods are based on a reconstruction that exaggerated
the backward slant of the pubis in archaeopterygids.
This reconstruction is bolstered by the discovery of early birds
with well-preserved pelves, such as Rahonavis ostromi, in which
the pubis is indeed oriented vertically relative to the long axis of the
ilium. Interestingly, in footnotes 17 of their article Ruben et al admit
that "[t]he position of the pubis in Archaeopteryx has occasionally been
interpreted as having been vertical." Actually, no one today would reconstruct
the pelvis of Archaeopteryx as Ruben et al do, with the pubis effectively
parallel to the ischium. Clearly the pelvic morphology of Archaeopteryx
unites it with rather than divides it from theropod dinosaurs.
Also contary to Ruben et al, the pelvic morphology of crocodilians
is very different from that of theropods. The pubis of crococilians is
short and broad, not "elongate" as Ruben et al (1997) suggest, there
is no pubic boot as in theropods, the pubis becomes distally transversely
broad forming a plate that partially supports the abdomen, and crocodilian
pubes are actually uniquely mobile -- they swing back and forth to accomodate
the posterior displacement of the viscera during breathing (Paul, 2002,
p. 349-350). In theropods and early birds, by contrast, the pubis is never
mobile, the pubis is elongate and transversely narrow, the pubis is oriented
vertically or is retroverted as in birds, there is no distal transverse broadening
of the pubis, and the pubis is not mobile. In fact, the slenderness of many
theropod pubes, and the highly variable orientation of the pubis even in closely
related theropod taxa, is not consistent with thier having anchored such
a pump.
Other Adaptations Associated with Pelvovisceral Pumps
Other features of theropod anatomy argue against the presence of a
pelvovisceral pump in theropods as well. For instance, in all crocodilians
there is a well-defined, rib-free lumbar region. This lumbar region allows
the abdomen to expand during the inspiration phase, similar to human breathing.
Theropods lack a rib-free lumbar region. Paul (2002, p. 352-354):
Contrary to the opinions of Ruben et al (1997b, 1998) and Hengst
(1998), the trunks of avepod dinosaurs and crocodilians could hardly have
been more different. The double heading of the entire avepod dorsal rib
series is in sharp contrast to the crocodilians' winglike transverse processesses
(contra Hengst, 1998). The avepods' long, gracile pubes differ dramatically
from the broader, stouter crocodilian structure. . . Appedix
table 3 shows that the two groups do not share a single osteological adaptation
that supports the presence of a pelvodiaphragmatic muscle pump in any predatory
dinosaur. Quite the contrary, the operation of a pelvodiaphragmatic
pump appears to have been impossible in the latter. The absence of a smooth,
bony rib cage ceiling means that the ceiling was not specialized to accomodate,
and may have hindered, the strong back-and-forth movement of an expandable
lung, even if intracostal muscles and other tissues lined the ceiling of
the thorax. The lack of either a lumbar region or mobile pubes would have
hindered the abdominal volume changes inherent in the operation of a
pelvodiaphragmatic muscle pump. Because the abdominal surfaces of dino-avepod
pubes were usually narrow, especially the most gracile examples, they appear
too transversly narrow to anchor large, pelvodiaphragmatic muscles
(see Hutchinson [2001] for additional comments). Strongly retroverted pubes
were especially poorly suited for supporting these respiratory muscles. Of
the derived examples, the pubes of alvarezsaurs were too slender and weak
to anchor and resist the pull of pelvodiaphragmatic muscles. For that
matter, it is difficult to see how the pubis could have been a part of the
respiratory complex when its orientation and boot development was so variable
within the group as a whole, and even among close relatives.
Ruben et al (1997, p. 1258) claimed also that "theropods
lacked avianlike jointed or hinged ribs and an expansive sternum (9),
structures without which proper ventilatory airflow cannot be maintained
in the modern bird lung." However, recently described bird-like dromaeosaurs,
for instance Sinornithosaurus (Xu et al, 1999), do indeed posesss
several sternal ribs and sternocostal joints
as well. Second, it is clear that some theropods, such as Velociraptor, Sinornithosaurus
and Bambiraptor, had large sternal plates, some almost half as long
as the ribcage, relatively much longer than those of Archaeopteryx,
in which the sternum is about 12% the length of the rib cage (Paul, 2002,
p. 356). Paul (1997) observes:
. . . large ossified sternal plates -- at least as large as those
of kiwis -- were described and figured in dromaeosaurs and oviraptors
by Barsbold in 1983, and have been discussed and figured in many other
publications! In an odd way this denial makes sense, in that Ruben et al
1997b use an out of date cross-section of the ribcage of a dromaeosaur --
based on incomplete disarticulated remains -- in a futile effort to deny/ignore
the evidence provided by complete ribcages, that these near birds have
large sternal plates. These big sternal plates articulated with the coracoids
via a transverely long hinge joint which allowed the sterna to help ventilate
the antero-ventral air-sacs. Ruben et al also ignore the ossified dromaeosaur
sternal ribs published by Ostrom in 1969. They fail to mention the ossified
uncinate processes present on the fighting Velociraptor. Why do not Ruben
et al make any mention of the work by Britt (1994) or Reid (1996) showing
that the pneumatic vertebrae of theropods are strongly indicative of the
presence of pulmonary air-sacs? Fact is that advanced theropods had the most
bird-like trunks of any tetrapods.
Furthermore, Leahy (1998) points out that in "some juvenile precocial
birds, the sternum is very small, entirely cartilaginous, and the sternal
ribs do not yet articulate with the thoracic ribs (Fig. 7 in Olson, 1973),
yet these birds are fully capable of ventilating their lungs."
So, neither the sterna nor the ribs of theropods rule out the existence of
bird-like lung, any more than it rules out a bird-like lung in kiwis and
precocial chicks.
Ruben et al (1997, p. 1268) also claimed that the "well-developed
gastralia" of theropods are evidence for crocodilian hepatic piston
lungs. Yet, Archaeopteryx, Confuciusornis and other early
birds, unlike modern birds, also possessed gastralia like those possessed
by theropods. Caudipteryx, which most researchers consider an oviraptorid
but which Ruben and colleagues consider a flightless bird, also possessed
gastralia, as did Protarchaeopteryx and Microraptor.
Soft-Tissue Evidence for Pelvovisceral Pumps in Theropods
Ruben and colleagues have argued that rare soft-tissue evidence from
fossil theropods supports their having possessed pelvovisceral pump lungs.
Both Ruben et al and creationist commentators on Ruben et al have characterized
such as evidence as disproof of the theropod ancestry of birds. As we will
see, however, none of the soft-tissue evidence for pelvovisceral pumps in
theropods is convincing. Ruben et al (1997) write:
Recently described Early Cretaceous theropod specimens [Sinosauropteryx
(11)] retain preserved outlines of much of the visceral cavity. The cavity
exhibits complete thoracic-abdominal separation, defined by a remarkably
crocodilianlike vertically oriented partition coincident with the apparent
dome-shaped anterior surface of the liver (Fig. 5).
In fact, nothing in their figure 5 shows "complete thoracic-abdominal
seperation." This is one possible intepretation, but not the only one
nor even a particularly compelling one. The specimen in question does show
a darkened area, which may or may not be a flattened liver. The darkened
area does span the entire body cavity, but this does not prove a seperation
of thoracic and abdominal cavities, and in some birds the liver is also so
large as to nearly span the entire body cavity from sternum to vertebrae
(Paul, 2002, p. 347). Nor is it clear this darkened area represents the liver,
nor, if it is a liver, that the it spanned the body cavity during life; it
could be transversely flattened like a pancake. The alleged "dome-shaped
anterior surface of the liver" appears to be nothing but a preservational
artifact. An actual 'partition' (ie. a septum) is not seen on the fossil,
it is simply inferred from the shape of the putative liver. In fact, according
to Paul, Ruben et al (1997) actually misidentified sediment breakage as soft-tissue,
perhaps because they were working from photographs only and had not actually
seen the Sinosauropteryx specimen first-hand. Paul (1997) wrote:
It is important to understand that Ruben et al have not actually
seen any of the Sinosauropteryx specimens, they are making guesses based
on photos of just one specimen, photos that fail to show its 3-D complexity.
In Fig. 5A they use a low resolution, out of focus photo to contend that
there is a semi-circular anterior border to the abdominal cavity. There
is no such thing. Examination of higher quality, larger format photos on
the cover of the April 97 Audubon (counterslab) and Nov 14 97 Science (main
slab) and the March 97 Episode (both slabs) show that much of the supposed
border of the abdominal cavity is really an irregular break in the sediment!
This is especially obvious in the superbly detailed Audubon photo, where
the shallow rim of a large, semi-circular, light colored break under the
spinal column is clearly delineated both by cast shadows, and obvious breakage
of the ribs at that location, the rest of the ribs are complete. Ruben
et al saw this photo since they cited it in their paper, yet they make
no mention of the damage (either they missed it, or thought it unimportant).
Yet their arrow points to this break as the septum -- i.e. they misidentify
sediment damage as soft tissue anatomy. On the main slab there also appears
to be small, subrectangular break in the sediment projecting ventrally from
the larger area, perhaps paralleling a rib. If so, then this break forms
more of the border of the supposed abdominal cavity. Also, on the mainslab,
a small part of the dark area extends more anteriorly than they indicate,
resulting in a more pointed apex to the dark region than the nice gentle
curve they indicate. The rest of the "abdominal cavity" just consists of
vague, irregular, darkish stains with no particular pattern to them. Who
knows what they represent. Perhaps thoroughly degraded abdominal tissue
flattened to paper thinness, it will require careful examination and analysis
of the specimen to determine so or otherwise, there may never be definitive
results. The claim that the specimen shows a croc-like separation between
the lung and belly cavities via a septum is absurd, it shows nothing of
the sort.
And Paul (2002, p. 342-343):
Direct examination of the main slab shows extensive breakage
at the dorsoanterior edge of the carbonized material. The ribs are also
broken at this location. This break occurred when a thin layer of sediment
dislodged from the main slab and remained attached to its counterpart.
The dorsal arrow in Ruben et al (1997a) points directly to the edge of
this break. A large, complex set of breakage astride and running perpendicular
to the anterocentral edge of the dark tissue is present on both slabs. It
is partially filled with cement, which appears to have been colored to better
match the dark material. A narrow, irregular zone of dark material appears
to lie immediately forward of the crack. The material's anterior extent is
further obscured by the presence of a rib, but it appears to extent too far
anterodorsally to conform to the smooth convex arc described by Ruben et
al . On both slabs, the ventro-anterior border of the dark material is another
illusion created by an irregular zone of flakage of the superficial layer
of sediment: the ventral arrows in Ruben et al (1997a, 1999) point toward
this pseudoborder. . . Because more than 60% of the anterior edge of the
dark material consists of breakage and and the preserved edge is irregularly
formed, there is no well-formed, semicircular structure present on either
slab.
Ruben et al (1999) presented new observations from a new, exceptionally
well-preserved theropod specimen (Scipionx) in support of their
hypothesis that theropods possessed pelvovisceral pump ventilation. Those
observations include a trachea set low in the neck, a high-set colon, and
putative pelvodiaphragmatic muscle traces. The specimen is crushed, which
complicates inferences about the position of various organs in life. For
instance, though in birds the trachea typically is positioned dorsally
just under the vertebrae, and in crocodilians it runs more ventrally, the
ventrally-placed trachea may well have been displaced relative to life
position. In fact, the 10th cervical vertebra clearly has been displaced
ventrally (Paul, 2002, p. 348), which may have well resulted in ventral
displacement of the trachea. The putative pelvodiaphragmatic muscle
traces which Ruben et al call "probable remnants of the diaphragmatic
muscles" do not extend to the liver, are poorly preserved, and may represent
abdominal muscles such as M. obliquus or M. rectus (ibid).
The colon of Scipionyx does appear to be positioned dorsally, more
like that of crocodilians than those of modern birds. However, the uncrushed
theropod described by Martill et al (2000), the ony other theropod with
a preserved colon, appears to be ventrally placed, more like those of birds.
Martill et al write (p. 898):
The intestine extends well ventral to the vertebral column in
SMNK 2349 PAL, rather than in the dorsal abdominal cavity as restroed for
Scipionyx by Ruben et al (1999) by analogy with present-day crocodilians.
The reconstruction by Ruben et al was based on the holotype of S. samniticus,
which was crushed flat and thus, unlike the uncrushed material described
in this paper, cannot be interepreted as reliably preserving the original
three-dimensional confuguration of the viscera.
What's more, the theropod described by Martill et al, which they assigned
to compsognathidae (same theropod group as Sinosauropteryx), preserved
a vacuity behind behind the pubis which may represent a post-pubic
air sac, which would directly contradict the argument of Ruben et al. Martill
et al write (p. 898):
Based on the preservation of the small vacuities inside the lithified
intestinal tract, this large space represents the remnant of an original
body cavity. . . This space may have originally been filled with either liquid
or air. Conceivably a urinary bladder or ovaries could have occupied this
space, but, as in present-day crocodilians, these organs were probably restricted
to the abdominal cavity anterior to or in the gap between the sacrum and
the pubic apron. The most plausible candidate for a structure occupying this
vacuity is a postpubic air sac, which would have extended into the space
between the posterior surface of the pubic shaft, the dorsal aspect of the
pubic boot, and the ischia. Such an air sac could have been ventilated by
a dorsal pneumatic duct passing through the left side of the gap between
the sacrum and pubes and a ventral one passing through the distal opening
in the pubic apron.
References
Brochu, C.A. and Norell, M.A. 2000. Temporal congruence and the origin
of birds. Journal of Vertebrate Paleontology 20(1): 197-200.
Chen et al, 1998. An exceptionally well-preserved theropod dinosaur from
the Yixian Formation of China. Nature 391, 147 - 152.
Elzanowski, 2002. Archaeopterygidae (Upper Jurassic of Germany). In: Mesozoic
Birds: Above the Heads of Dinosaurs, L. M. Chiappe and L. M. Witmer (eds.),
University of California Press, Berkeley.
Evans, S.E. and Milner, A.R. 1994. Middle Jurassic microvertebrate assemblages
from the British Isles. In: N.C. Fraser and H.-D. Sues (eds.), In the Shadow
of the Dinosaurs: Early Mesozoic Tetrapods, Cambridge University Press, Cambridge,
303-321.
Feduccia, 1994. The great dinosaur debate. Living Bird 13, 29-33.
Feduccia, 1996. The Origin and Evolution of Birds. Yale Univ. Press, New
Haven, CT.
Feduccia, 1999. 1,2,3,=2,3,4: accomodating the cladogram. Proceedings
of the National Academy of Sciences 96, 4740-4742.
Geist et al, 1997. Implications of soft tissue preservation in the composognathid
dinosaur, Sinosauropteryx. Journal of Vertebrate Paleontology 7 (suppl.
to no. 3): 48A.
Gibbons, 1997. Plucking the feathered dinosaur. Science 278, 1229-1230.
Jensen and Padian, 1989. Small pterosaurs and dinosaurs from the Uncompahgre
fauna (Brushy Basin Member, Jurassic Formation:? Tithonian), Late Jurassic,
Western Colorado. Journal of Paleontology 63, 364-373.
Ji et al, 1998. Two feathered dinosaurs from northeastern China. Nature
393, 753-761.
Ji et al, 2001. The distribution of integumentary structures in a feathered
dinosaur. Nature 410: 1084-1088.
Leahy, 1998. Response to Ruben et al (1997). Internet posting: http://www.cmnh.org/dinoarch/1998Jan/msg00418.html
Martill et al, 2000. Skeletal remains of a small theropod dinosaur with
associated soft structures from the Lower Cretaceous Santana Formation of
northeastern Brazil. Canadian Journal Earth Sciences 37, 891-900.
Metcalf and Walker, 1994. A new Bathonian microverterate locality in the
English Midlands. In: In: N.C. Fraser and H.-D. Sues (eds.), In the Shadow
of the Dinosaurs: Early Mesozoic Tetrapods, Cambridge University Press,
Cambridge, 322-331.
Naish, 1998. Ghost lineage. Accessed online 6/25/03 at: http://www.dinosauria.com/jdp/evol/ghost.html
Norell et al, 2002. Palaeontology: 'Modern' feathers on a non-avian dinosaur.
Nature 416, 36 - 37.
Paul, 1997. Theropod lung unreality. Internet posting: http://www.cmnh.org/dinoarch/1997Nov/msg00450.html
Paul, 2002. Dinosaurs of the air. Johns Hopkins University Press, Baltimore,
Maryland.
Prum, 1999. Development and evolutionary origin of feathers. Journal of
Experimental Zoology 285, 291-306.
Prum, 2003. Dinosaurs take to the air. Nature 421, 323-324.
Ruben et al, 1997. Lung structure and ventilation in theropod dinosaurs
and early birds. Science 278, 1267-1270.
Ruben et al, 1999. Pulmonary function and metabolic physiology of theropod
dinosaurs. Science 283, 514-516.
Schweitzer et al, 1999. Beta-keratin specific immunological reactivity
in feather-like structures of the Cretaceous alvarezsaurid, Shuvuuia deserti.
Journal of Experimental Zoology (Mol Dev Evol) 285, 146-157.
Sumida and Brochu (2000). Phylogenetic context for the origin of feathers.
American Zoologist 40, 486-503.
Witmer, 2002. The debate on avian ancestry: phylogeny, function, and fossils.
In: Mesozoic Birds: Above the Heads of Dinosaurs, L. M. Chiappe and L. M.
Witmer (eds.), University of California Press, Berkeley, 3-30.
Xu et al, 1999. A therizinosauroid dinosaur with integumentary structures
from China. Nature 399, 350-354.
Xu et al, 1999. A dromaeosaurid dinosaur with a filamentous integument
from the Yixian Formation of China. Nature 401, 262-266.
Xu et al, 2000. The smallest known nonavian theropod dinosaur. Nature
408, 705 - 708.
Xu et al, 2001. Branched integumental structures in Sinornithosaurus and
the origin of feathers. Nature 410, 200 - 204.
Xu et al, 2002. A basal troodontid from the Early Cretaceous of China.
Nature 415, 780-784.
Xu et al, 2003. Four-winged dinosaurs from China. Nature 421, 335-340.
Zhang and Zhou, 2000. A primitive enantiornithine bird and the origin
of feathers. Science 290, 1955-1959.
Zinke, 1998. Small theropod teeth from the Upper Jurassic coal mine of
Guimarota (Portugal). Palaontologische Zeitschrift, 72, 1/2, 179-189.
