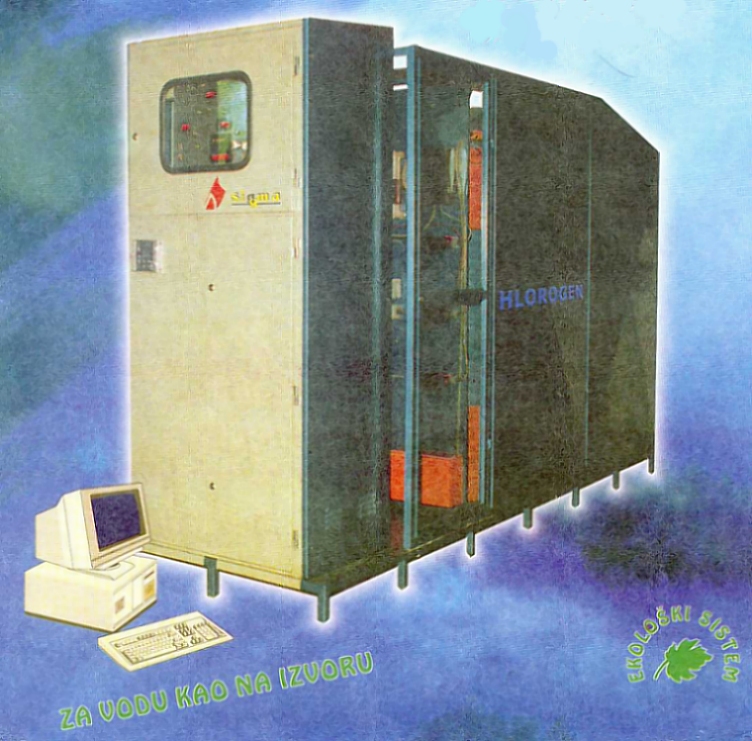

HLOROGEN
System for electrochemical disinfection of water

MAIN FEATURES

  • Very successful disinfection
  • Provides on-site production of sodium /hypochlorite on demand from brine (which is safer than chlorine gas)
  • Ecological technology
  • Removal of ammonia compo-unds from water
  • Low cost of exploitation
  • Medium investment expenses
  • Possibility of storage of salt for a long time of exploitation (0.5 to 1 year)
  • Unnecessity of trained workers for handling

ADVANTAGE OF THE SYSTEM HLOROGEN OVER THE EXISTING SYSTEMS IN THE WORLD

  • Theoretical ratio NaCl/NaClO is 2. The best ratio of the systems designed by others is 3, while our system HLOROGEN provides ratio 2.2 (2.2 kg of NaCl for production of 1 kg NaClO). This means that by using our system HLOROGEN 1B, which produces 1 kg of equivalent chlorine for 1 h (instead of the other system of the same capacity), one saves 7.000 kg of NaCl for one year of the system opeartion.

more information hlorogen - srpski jezik

.

view large picture


view large picture

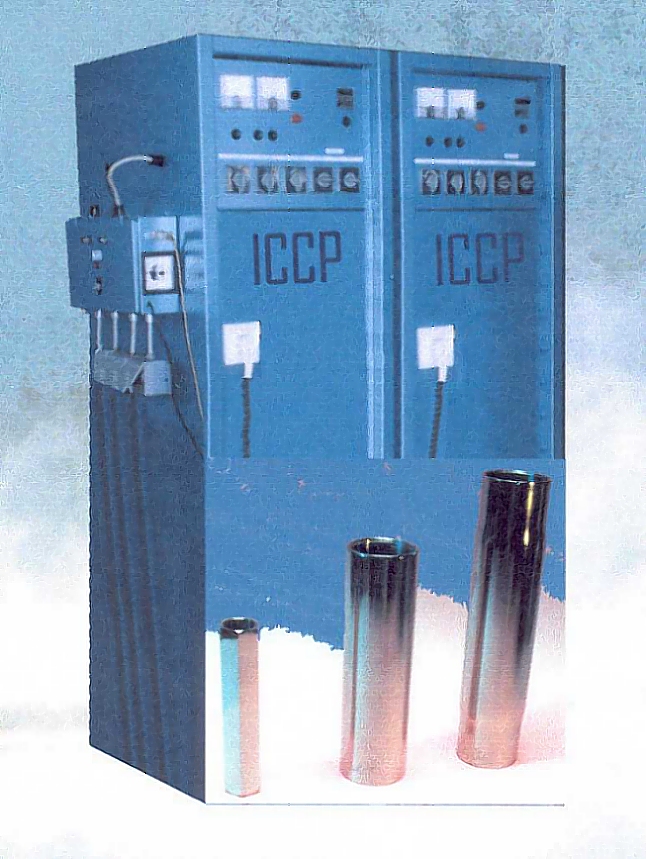

ICCP
(IMPRESSED CURRENT CATHODIC PROTECTION)

Anodes for ICCP system
Our ICCP system is based on the use of two types of anode:

  • platinized titanium anodes (Pt-Ti) for application in sea and fresh water and
  • titanium anodes (MDSA) coated with the mixture of noble and non-noble metal oxides, specially designed for application in sea water.
  • It should be emphasized here that we are the owners of the technology of production of both types of anode and that we can also be suppliers of anodes for the ICCP systems.

ICCP system components

  • Our ICCP system generally comprises a power unit (incorporating the controller), the reference electrodes and anodes, while for application on ships shaft earthing assembly and rudder bonding are also provided. Location and number of anodes and reference electrodes are the most important factors for an optimal distribution of a protective current, uniform distribution of a protective potential and successful antifouling.

AWARDS

  • At the world fair for invention "Brussels Eureka 1990", our experts were awarded gold medals for this invention

more information iccp - srpski jezik

.

.


view larger picture

.

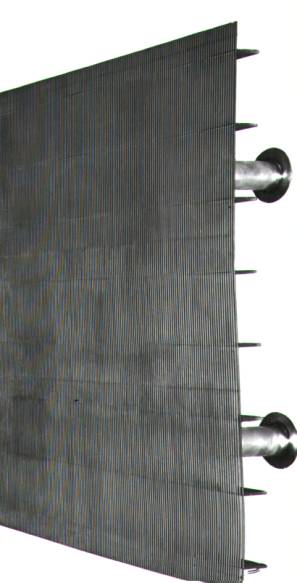

MDSA
Anodes for industrial application

List of various type of modified titanium anodes (MDSA) wich are
manufactured by own technology

  • MDSA (Ti/RuO2-TiO2) Production of chlorine in the mercury cell
  • MDSA (Ti/RuO2-TiO2-IrO2-SnO2) Production of chlorine in the membrane cell
  • MDSA (Ti/RuO2-TiO2-SnO2) Chlorate production
  • MDSA (Ti/RuO2-TiO2-IrO2) See water electrolysis
  • MDSA (Ti/Pt) Cathodic protection in see and potable water
  • MDSA (Ti/IrO2-Ta2O5) Electrowining processes

more information mdsa - srpski jezik
