Whirlpool Ice Cube Makers the ideal product for restaurants, cafes, hotels and other recreational environments, where the continuous availability of ice-cubes is an essential aspect of good services

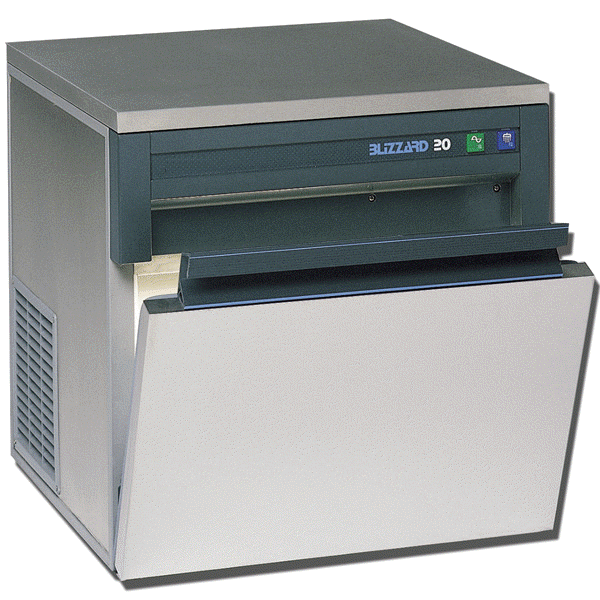

AGH 326 Ice Maker
  • Tropicalized Ice-Cube Maker.
  • Stainless steel cabinet and door.
  • For Private and professional use.
  • Produces 2000 ice cubes (24kg) per 24 hours continuously.
  • Storage capacity 10kg. Cubes do not freeze together.
  • Voltage :  220 - 240V

  Size     :   59cm x 55.5cm x 53.5cm
  Weight :   38Kg

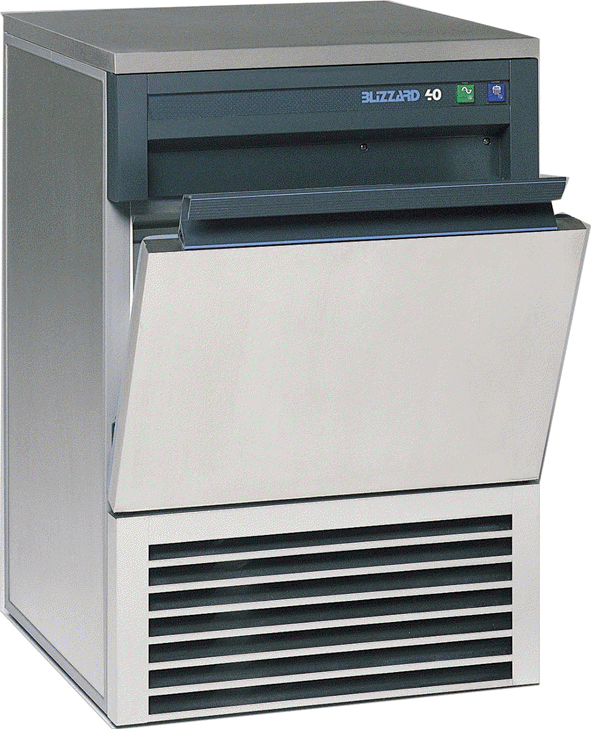

   AGH 327 Ice Maker
  • Tropicalized Ice-Cube Maker.
  • Stainless steel cabinet and door.
  • For Private and professional use.
  • Produces 5600 ice cubes (40kg) per 24 hours continuously.
  • Storage capacity 20kg. Cubes do not freeze together.
  • Voltage :  220 - 240 V

  Size      :   85cm x 55.5cm x 53.5cm
  Weight :   46Kg

     THE "CONTINUOUS FLOW" SYSTEM

A pump circulates the water and pours it continuously onto an inclined freezing plate element.

At each passage a layer of ice is formed, which gradually increases and remains crystal clear (fig. 1).
When a required thickness has been reached, the ice layer automatically slides onto electrically heated grid ( fig. 2).
The relatively high temperature of the grid together with the weight of the ice itself cause the ice layer to be cut to small ice-cubes of about 25x25x13mm, which fall into a container below ( fig. 3).

Icecube production continues until the storage compartment is filled, at which point  a thermostat interrupts the ice forming process.
The low temperature in the storage compartment keeps the ice-cubes clear, separate and free of frost.



Whirlpool IceMaker
Packed dimensions and weight

Gross
AGH326   63cm x 63cm x 63 cm    40kg
AGH327   88.5cm x 63cm x 63cm  49kg

Net
AGH326   59cm x 55.5cm x 53.5cm  38kg
AGH327  85cm x 55.5cm x 53.5cm   46kg



Container Export Quantity

                           20 Footer load     40 Footer load

AGH-326                81                         171
AGH-327               54                          114

Whirlpool Ice Cube Makers
