F430

2005


The F430 signals the arrival of a brand new generation of Ferrari 8-cylinder models. This new car takes Ferrari’s extraordinary achievements with aluminium technology, begun with the 360 Modena, to a whole new level, and offers a series of extremely significant innovations directly derived from the Ferrari Formula 1 single-seaters.

Two of these innovations are world firsts for production cars: the electronic differential (E-Diff) and the steering wheel-mounted switch (better known to the Formula 1 Scuderia’s drivers as “manettino”), which manages the integrated systems governing vehicle dynamics.

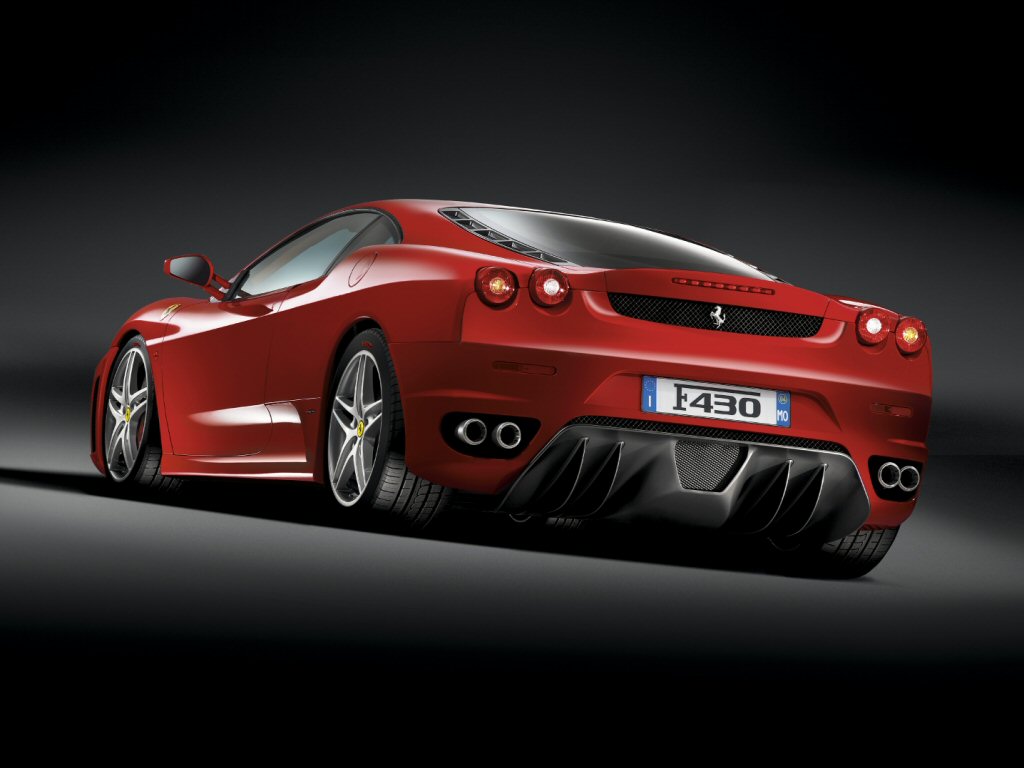

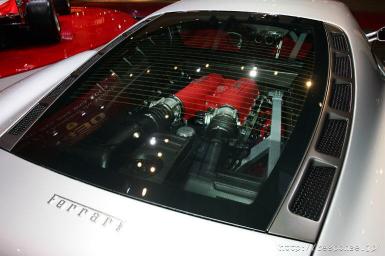

The other main characteristics of the new F430 are its light, compact 4,300 cc 90° V8 engine, which punches out 490 hp to achieve a specific output of 114 hp/litre, also providing the new Ferrari berlinetta with a weight-to-power ratio of 2.8 kg/hp (dry weight); a braking system with carbon-ceramic discs for optimal efficiency under extreme use (optional); a Formula 1-derived gearbox that cuts gear shifting times down to 150 milliseconds allowing the driver to make the very most of this truly high performance car (0-62 mph acceleration in 4 seconds flat, a top speed in excess of 196 mph); and an aerodynamic design that embodies the very latest competition technologies, specifically the flat underbody and large rear diffuser to increase downforce.

The car will be officially presented during the Paris Motor show in September 2004.








Ferrari S.P.A.



Number and arragement of cylinders:
90o V8

Position:
Mid Longitudinal

Bore:
92 mm / 3.62 in

Stroke:
81 mm / 3.19 in



Valvetrain:
DOHC, 4 Valves per Cyl w/Variable Timing, Variable Intake Tract

Displacement:
4308 cc / 262.9 cu in

Compression ratio:
11,3:1

Maximum power:
360.4 kw / 483.3 bhp at 8500 rpm



Maximum torque:
465 nm / 343.0 ft lbs @ 5250 rpm

Gear Type:
Manual or F1 Paddle Shift

HP / Liter:
112.19 bhp per litre

HP / Curb weight:
333.31 bhp per weight

Body:
Aluminum Monocoque



Overall length:
4512 mm / 177.6 in

Overall width:
1923 mm / 75.7 in

Height:
1214 mm / 47.8 in

Wheelbase:
2600 mm / 102.4 in

Front track:
1669 mm / 65.7 in



Rear track:
1616 mm / 63.6 in

Curb weight:
1450 kg / 3197 lbs

Drive Wheels:
RWD w/E-Diff, CST

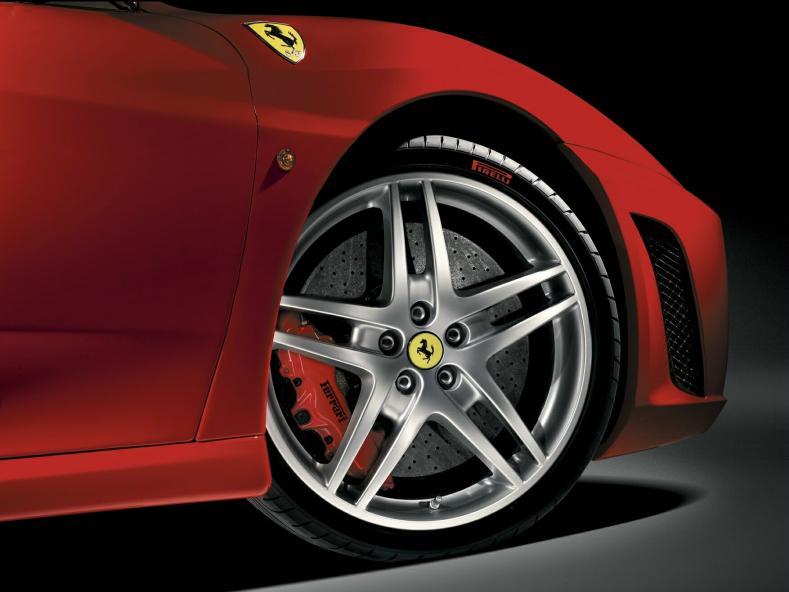

Front Brakes:
Carbon-Ceramic Discs w/6-Piston Calipers, ABS, EBD

Front Brakes size:
380 mm / 15.0 in

Rear Brakes:
Carbon-Ceramic Discs w/4-Piston Calipers, ABS, EBD

Rear Brakes size:
350 mm / 13.8 in



Front Tires:
225/35ZR19

Rear Tires:
285/35ZR19

Top Speed:
315.4 kph / 196.0 mph

0 - 60 mph:
3.9 seconds

EPA City/Hwy:
17.5 mpg
