| General Pictures |
|
| In this picture, you can see the Toroid assembly clearly, along with the Nicotine cartridges / old CD's around the support rod. In the Base, you can see 2 PVC pipes protruding. The left one is the Air supply and the right side pipe is the selector for the spark gap. |
 |
| This is from very early in the construction, The NST's give an Idea of scale/ |
 |

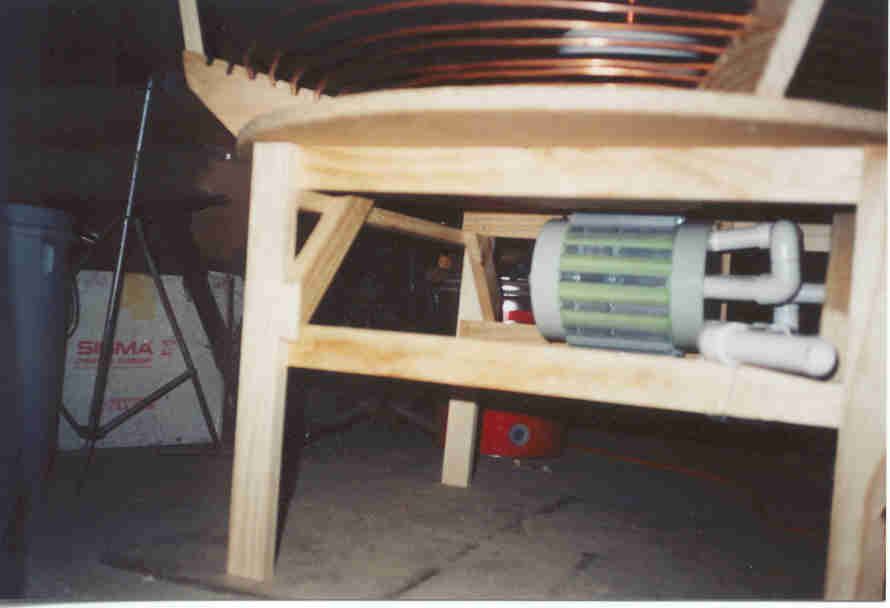

| This Picture shows the Spark Gap along with the air supply pipes. The air supply had to be split into 4 separate lines and fed in from close to the edge to allow for the selector shaft. The air supply pipe poking out the side has now been changed so it protrudes from the front panel, along withe the terminals and spark gap selector shaft.. |
