Cables in the Car can get Messy

This is what I used:

A cable from the Garmin GPS to a rj6 telephone jack (wiring 2 (ground),3 (plus 12 volts),4(data in),5(data out).
A cable from a male RS232 (for the serial cable) to RJ6 telephone  (wiring 1 (plus 6 volts), 2(ground), 4(data in),5(data out)
A wire from the Cigarette Lighter to my dispatch box.

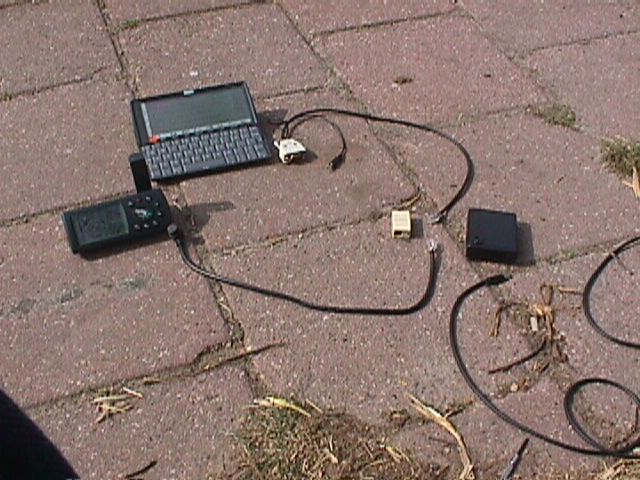

This is what the cables look like:

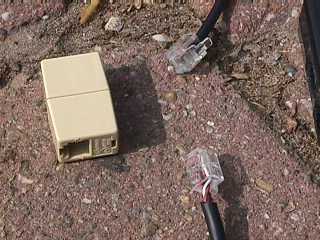

The two cables can be connected directly, without power supply:


or through the box

Now both the Garmin and the Psion 5 receive proper voltages

The Garmin +12 straight from the Car battery (with a fuse) and the Psion 5 through a 6V voltage regulator.

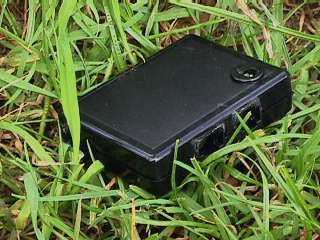

The Box look like this:


It has two RJ6 phone jacks and a twelve volt input plug. I can also use it using a standard wall transformer for 12 Volt.

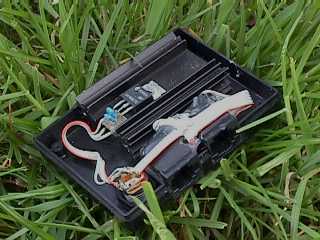

Internally it looks like this:


The voltage regulator is a straight forward chip with only two capacitors added:




The connector to the Garmin is tricky to obtain. You can obtain one (Share HardWare) through Larry Berg's Purple Computing page at The Pfranc guys.


Angus Pinkerton is the UK distributor of the connector and his homepage is at http://dspace.dial.pipex.com/angus.pinkerton/
