Cutting and Shaping the Neck, Headstock, and Fingerboard |
|
|
|
At this point, I began my dubious relationship with our old Skill Jigsaw. I used it for most of the cuts here, with the help of a few assorted handsaws. Most of the shaping I did with a palm sander (with 60-grain sandpaper), an assortment of files, and a wood rasp I purchased late in the game. After I got the shape about right, I used progressively finer sandpaper to smooth it out (100- to 330-grain). |
|
|
|
 |
|
 |
|
|
|
|

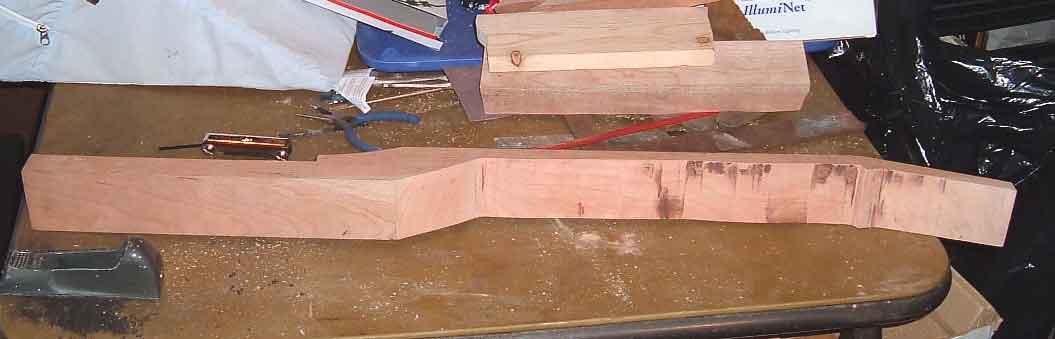

1. Here's the neck blank cut out from the cherry. |
|
|
|

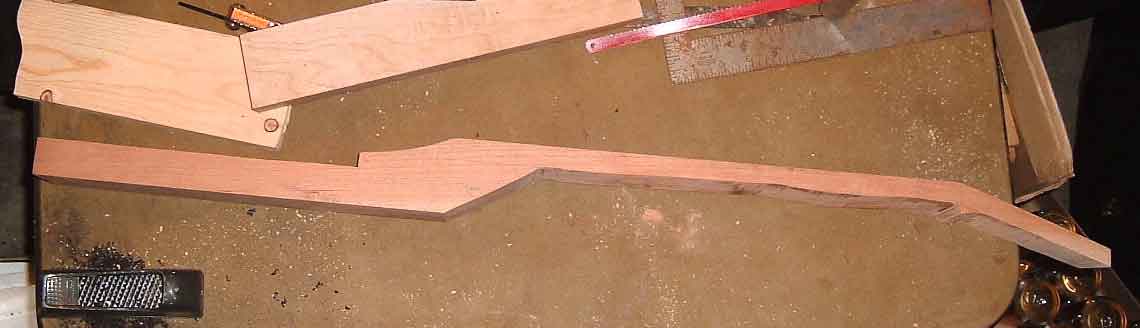

2. Another view... |
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
3. After planing the ebony until both sides were relatively flat, I used Elmer's wood glue to attach it to the cherry. |
|
|
|
|
|
|

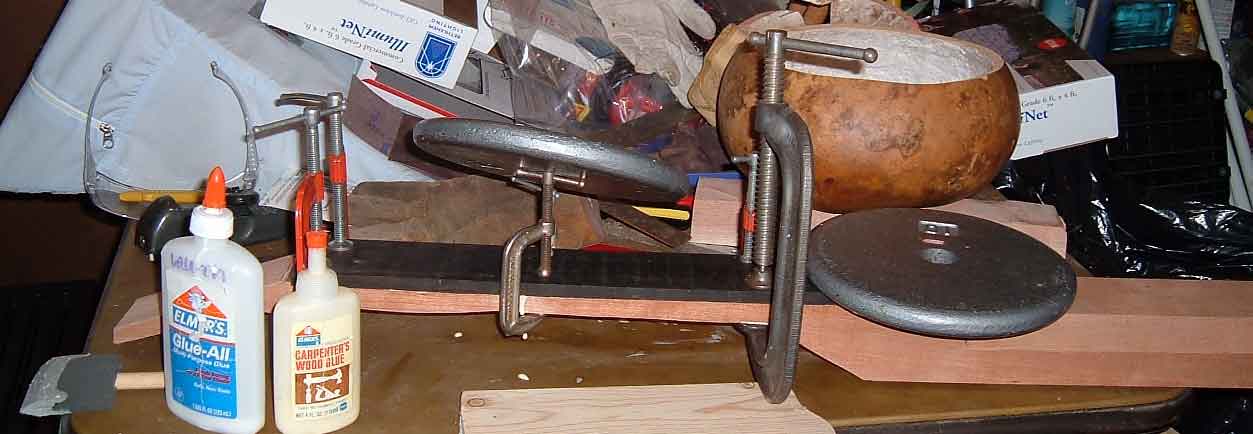

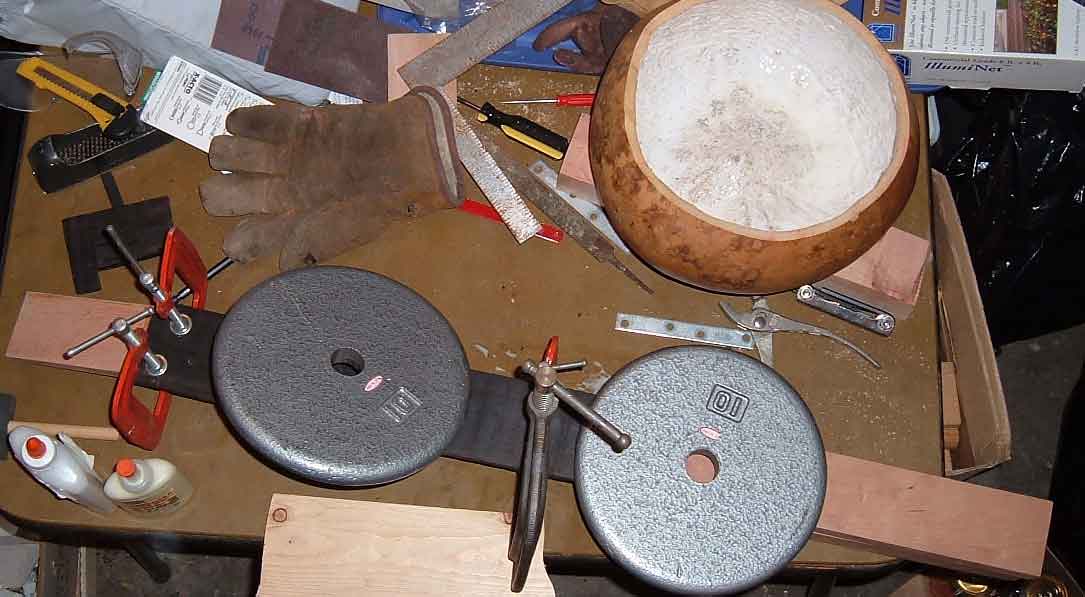

4. Some C-clamps and a few makeshift clamps held everything together overnight. In the meantime, I coated the inside of the gourd with white glue to catch any loose material I missed with the scraper. |
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|

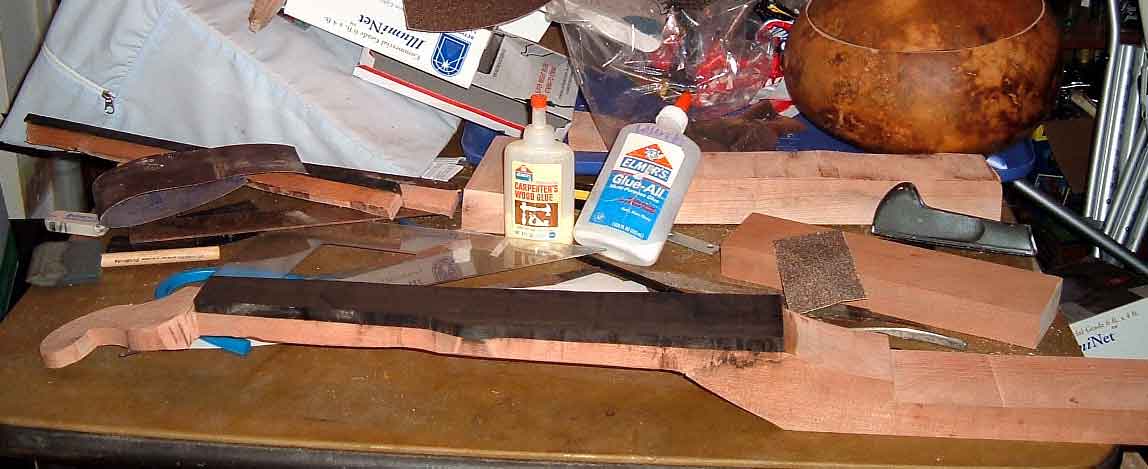

5. Once the glue dried, I used my trusty jigsaw to cut the shape of the fingerboard and headstock from paper templates. |
|
|
|
|
|
|

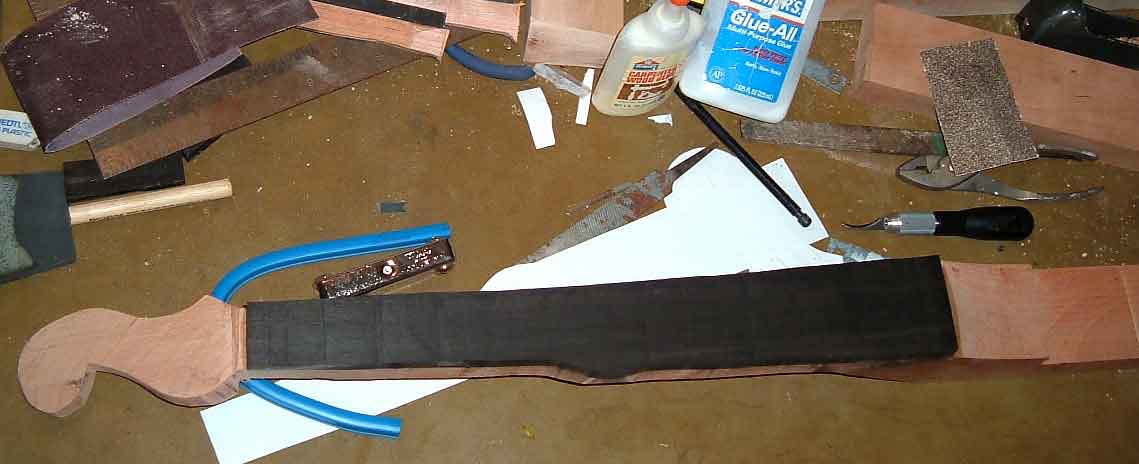

6. Another view... |
|
