160 METER LIMITED SPACE ANTENNA

Here is a limited space 160 meter antenna that is a combination of a folded monopole and a loop antenna. It requires a minimum of 8 radials to work properly.

All dimensions are in feet.

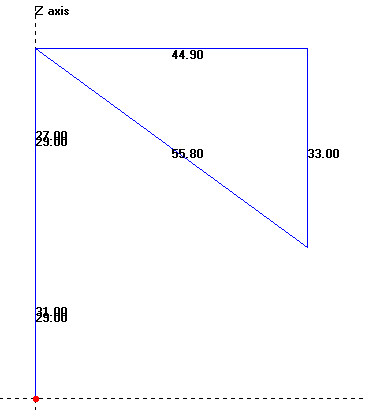

Here is a chart showing the geometry:

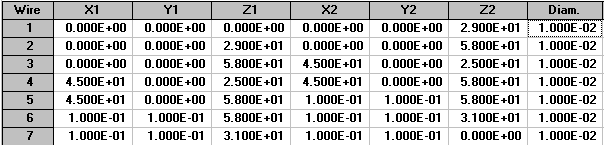

The source is at the end of wire 7.

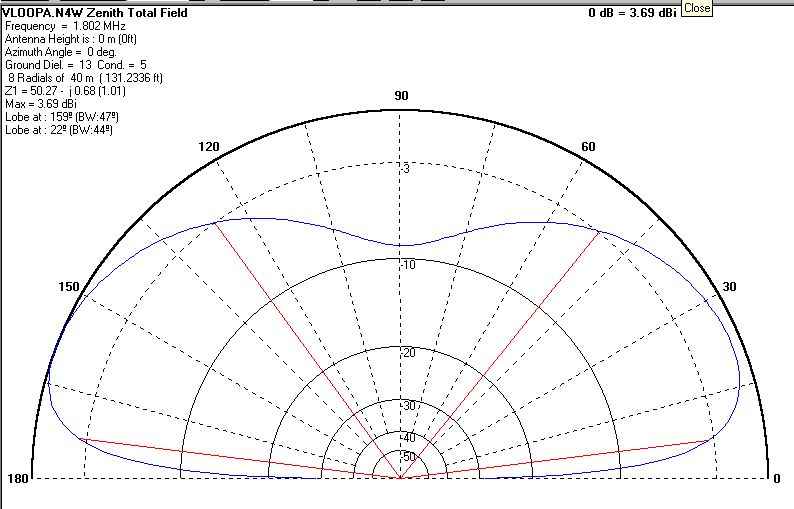

Here is the pattern:
