| Tools and Equipment |

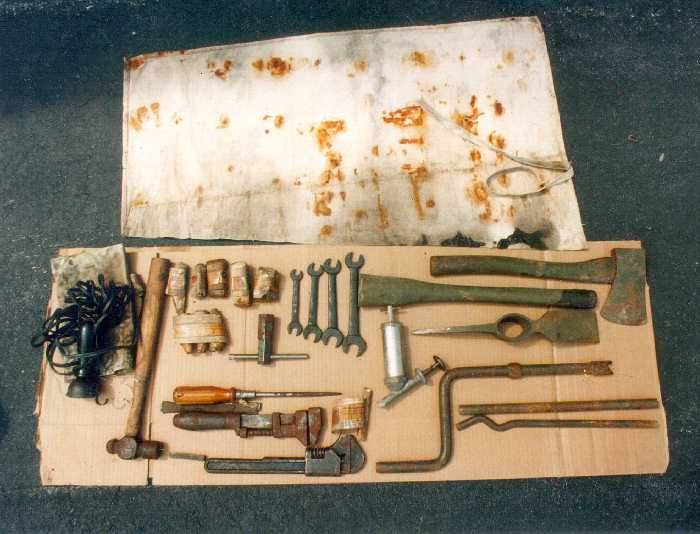

| Tools supplied with Dave Klinks M7, when purchased, compare nicely with the TM 9-774 tool list. |
| Vehicle equipment as taken from the TM 9-774: Number Where Carried Carried Bag ( for tools )................ 1 Tool box Bag ( inspection lamp )..... 1 Tool box Chain, tow........................ 1 Tool box Container, 5 gal................ 1 In bracket on rear of tractor Cover, hood...................... 1 Only carried when in use over en- gine hood Crank, starting................. 1 Tool box Extinguisher, fire.............. 1 On left side of body in driver's compartment Gun, grease....................... 1 Tool box Handle, jack...................... 1 Tool Box Jack, hydraulic.................. 1 Tool Box Light, inspection................ 1 Tool box |
| Vehicle Equipment |
| click for larger views |
| Pioneer & Vehicle Tools |
| Pioneer tools as taken from the TM 9-774: Number Where Carried Carried Ax ( entrenching )...................... 1 Tool box Handle, mattock......................... 1 Tool box Mattock, pick ( entrenching )..... 1 Tool box Shovel ( entrenching )................ 1 Tool box Vehicular Tools as taken from the TM 9-774: Number Where Carried Carried Handle, wrench, spark plug........ 1 Tool box Hammer, machinist's, ball peen 16-oz. ( 41-H-523 )............................. 1 Tool box Pliers, combination, slip-joint,6-in. ( 41-P-1650 )............................ 1 Tool box Screwdriver, common 6-in. blade ( 41-S-1104 )............................ 1 Tool box Wrench, adjustable, auto type, 11-in. ( 41-W-448 )............................ 1 Tool box Wrench, drain plug................... 1 Tool box Wrench, engineer's, open-end, 3/8 x 7/16 ( 41-W-991 )........................... 1 Tool box Wrench, engineer's, open-end, 1/2 x 19/32 ( 41-W-1003 )......................... 1 Tool box Wrench, engineer's, open-end, 9/16 x 11/16 ( 41-W-1005-5 )...................... 1 Tool box Wrench, engineer's, open-end, 5/8 x 25/32 ( 41-W-1008-10 ).................... 1 Tool box Wrench, engineer's,open-end, 3/4 x 7/8 ( 41-W-1012-5 )...................... 1 Tool box Wrench, spark plug.................. 1 Tool box |
 |
 |
| Excerpt from the TM-9-774: ...items listed in the following paragraphs are furnished as standard equipment with each tractor when tractor is shipped. This equipent is packed in a box and placed in the same box with tractor. A tool box and brackets are provided on the tractor to carry this equipment. After tractor is removed from box..... Note: the M7 was apparently packed in a crate similar to the crates jeeps were packed in for shipping. |
 |
| Vehicle Spare Parts |
| Vehicle spare parts as taken from the TM 9-774: Number Where Carried Carried Container, service kit................ 1 Tool box Condenser, Distributer.............. 1 Tool box Contact set, distributer.............. 1 Tool box Blade, windshield wiper.............. 1 Tool box Half-links, drive chain............... 8 Tool box Metering rod, carburetor, high, altitude ................................................. 1 Tool box Spark plugs............................... 4 Tool box Wedge, spindle pivot................. 2 Tool box Wick, preheater lighting........... 1 Tool box |
