2-250 MHz
Synthesized VHF Source Project
By: Steve
Hageman

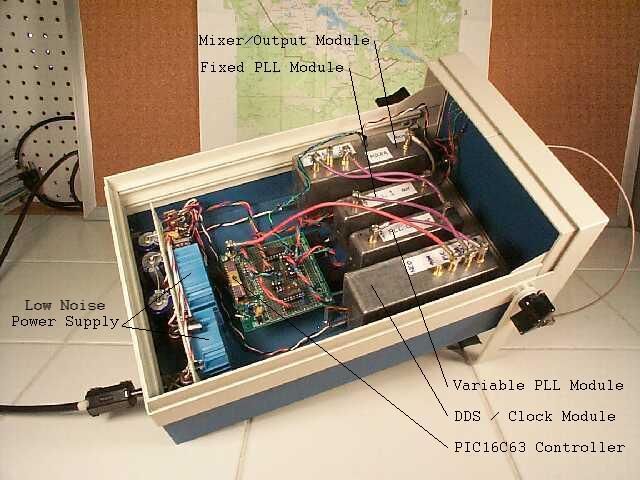

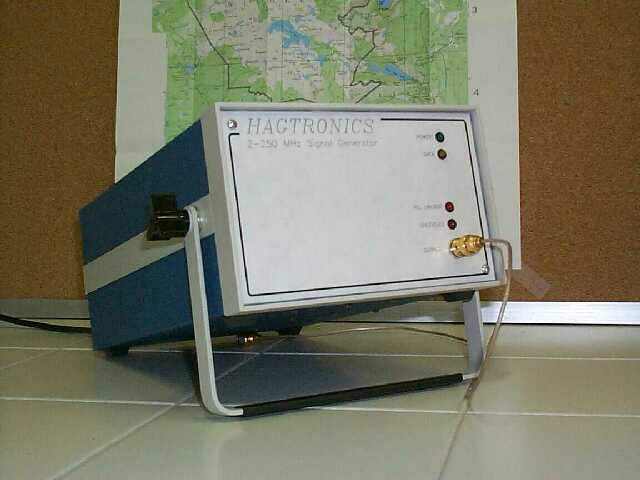

The VHF
Source Project: Inside and Out!
As seen on the cover of the January, 2000 issue of QEX
magazine.
For
information on article
reprints, click here.
How about putting
a computer controlled, 2-250 MHz ,1 Hz resolution synthesizer that
you built on your own workbench! The Hagtronics VHF source project published
in QEX is just that!
The basic synthesizer
uses two PLL's mixed together to get a 2-250 MHz output. The PLL's
use Mini-Circuits VCO modules and Motorola MC145191 PLL chips to
produce either a fixed 750 MHz or a variable 500-748 MHz output.
These two PLL's operate with a reference frequency of 100 kHz for
excellent reference spur rejection and fast lockup times. The two PLL
outputs are difference mixed and filtered to produce a 2-250 MHz
output. The 1 Hz frequency resolution is achieved by driving the
variable PLL's reference input with the output of a Intersil HSP45102
NCO (Numerically Controlled Oscillator). The Intersil NCO chip has 32
bits of frequency resolution, so achieving an overall 1 Hz
synthesizer resolution is a snap. The output of the mixer is
amplified to +15 dBm (+17 dBm Typical) with Agilent
Technologies
MSA-1105 MMIC Amplifiers. By using low noise and low intermodulation
design techniques, the sources Phase Noise and Spurious Responses are

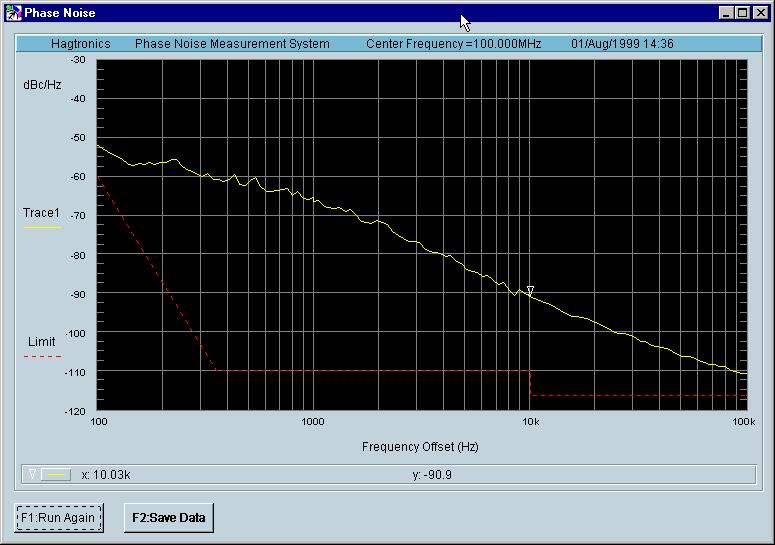

kept at very respectable levels. To see a plot of the sources
Phase Noise click
here. To see
the spectral purity and reference spur suppression,
click here.
The last output stage
uses a directional coupler on the output to provide a true leveled
output. The output level is sensed with an Analog
Devices RF
Log Amplifier (AD8307). This sensed level is compared to a DAC value
that is programmed to the desired output in dBm, the error value from
this comparison is used to servo a PIN diode attenuator and Viola, we
have a true leveled output. The output leveling circuitry frequency
response has been carefully shaped to give very low two tone
intermodulation when two sources are combined.
The source is
controlled by a PC via an RS232 link running at 19.2k BAUD. Up to
four sources may share a single RS232 connection via a novel, low
cost RS232 link port expansion technique. The source uses a Microchip
Technology PIC16C63 microprocessor to translate the RS232 commands
from the PC to the proper setups required by the PLL's, NCO and other
hardware. The PIC also monitors the status of the PLL's and leveling
loop and can report this back to the PC for display.
The software 'Virtual
front Panel' is a true 32 bit Windows 95/98/NT program. The program
is a easy to use as it will search all RS232 ports in your system
automatically looking for any connected source. The control program
also allows "Set and Forget" operation, that is the software can set
the desired frequency and amplitude then be exited from and the
source will remain at the last setting until power is removed (Even
if the RS232 cable is disconnected). The software employs many
advanced capabilities such as spur avoidance. With any wide range
source LO to RF crossing spurs occur, to prevent any interference to
the desired signal the software automatically changes the fixed and
variable PLL's so as to keep the crossing spurs at least 4 MHz away
from the desired carrier.
Support for other
programming languages, such as Agilent
Technologies
VEE is supplied by a 32 bit ActiveX control. The ActiveX control
contains all of the required properties and methods needed to control
the source from any modern programming language. Using the ActiveX
control and VEE I have achieved programming speeds of 13 mSec per
frequency/amplitude point.

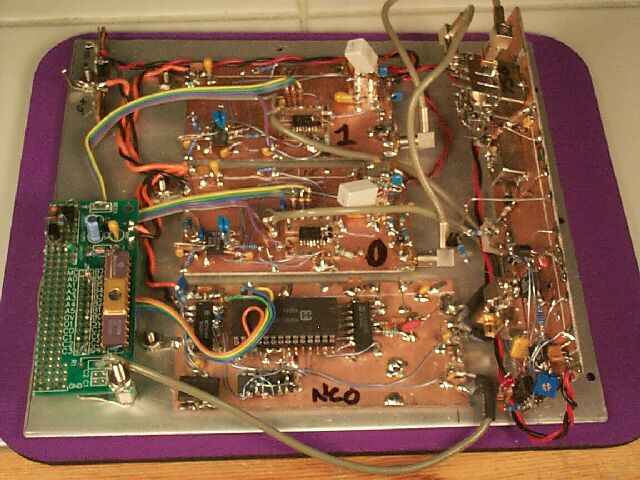

As with all good
homebrew projects, this project started out as a breadboard.
Click here to see a picture of
the first prototype. The prototype is still in use today, it just does
not have any shielding so the spurious performance is not as good as
the final units.
The project FAQ
follows...
VHF SOURCE TYPICAL PERFORMANCE
Frequency
Range....................................................2-250
MHz
Frequency
Resolution........................................... 1 Hz
Amplitude Range
(Calibrated)............................. -15 to 15 dBm
(Using internal PIN
Diode attenuator)
Amplitude
Resolution............................................ 0.1 dB
Maximum
output.................................................... +17
dBm
Amplitude
Accuracy............................................. +/-0.5 dB over
full frequency and power range
Frequency Accuracy
Error................................... Calibratable to 0 Hz
Frequency Drift per
hour (After warmup).......... 0.0002 %
Frequency
Stability............................................... 0.001
%
Over
temperature of 15-35 deg C ambient
Phase Noise:
-64 dBc/Hz @ 1 kHz Offset
-90 dBc/Hz @ 10 kHz
-110 dBc/Hz @ 100 kHz
Harmonics: 2 MHz to
20 MHz............................. < -30 dBc
20 MHz to 250
MHz.............................................. < -45 dBc
Non Harmonics: 2 to
220 Mhz............................ < -65 dBc
220 to 250
MHz..................................................... < -35
dBc
LO and RF
feedthrough...................................... < -55 dBm
Clock feedthrough
(fund and harmonics)........ < -85 dBm
Output Match (VSWR) 2
MHz to 7 MHz............ < 2:1 @ +15 dBm output
7 MHz to 250 Mhz............ < 1.3:1 @ +15 dBm
output
Note: Output at 100
MHz, 0 dBm output power and temperature of 25 degrees C, unless
otherwise specified.
VHF Source
Project FAQ's
Please e-mail with
your questions and if you have found parts anywhere. That's how this
all works, you share with me, I'll post it so everyone knows -- and
I'll give you credit too!
Parts FAQ:
As with the Personal Network Analyzer Project and
the 2 Meter receiver, I will be keeping folks abreast of where to get
parts for the project here:
1) The complete parts
lists for all the assemblies are available here as a zip
file (4k
file). The format is comma separated values or CSV. This format is
easily read into any spreadsheet, or you can read the files with
notepad.
2) A PCB is available
for the project from FAR
Circuits.
Check with FAR directly please, as they supply the PCB's, not
me.
3) A preprogrammed
16C63 PIC is available from me for $30 US Dollars. Shipping
to the US of A (and Canada, Eh?) is FREE. Shipping to Europe is $5.00
(Via US Post Office Global Priority Mail). Shipping to South America
is $10 US Dollars (Via anyway I think it will get there!). Sorry
South America, the postal system down there just looses too much of
what I send.
4) Note: Motorola is now ON
Semiconductor! Just as HP is now Agilent
Technologies!
And Harris is now Intersil! At least for the parts we
want to use here.
5) DC Kits may have
the MC145191F PLL IC's, give them a try at www.dckits.com
6) Future (a big Canadian distributor,
eh?) is a big distributor of Motorola (ON) Parts. The minimum order
may be quite high however, I'm not exactly sure.
7) Newark is an old
standby for Motorola (ON) parts. They have a $25 minimum order, the
good news is that they have many other parts such as IC's (i.e.
AD8307), resistors, capacitors and a nice selection of suitable
chassis in which to house the project.
8) C13 and C15 on the
PLL boards are rather expensive Polyester types. To save cost,
equivalent Tantalum capacitors can be used (i.e. 1 uF and 3.3 uF @ 25
or 35 volts). The Tantalums will give about 10 dB worse 100 kHz
reference feedthrough rejection and the low frequency Phase Noise
will increase somewhat. Unless you are watching the source with a
spectrum analyzer, you probably will never notice the increased
noise.
9) Bob M. brought
this to my attention: I managed to get the part number of the PCB
mount, SMB jacks messed up in the parts lists (They were listed as
J648-ND). Here is a clarification (I hope):
You have three
options (as I see it anyway),
1) The
expensive way -- The way I built my modules is with nice right angle
bulkhead mounts. These have a screw collar that can hold themselves
tight to the box wall. This also serves to hold the PCB in place. The
Digi Key part number for this is: J522-ND
2) A little less
expensive is to use a right angle jack without the bulkhead mount.
Just drill the case hole big enough for the jack and the cable end
plug. This won't hold the PCB in place, but it will work. It will
even be shielded very well if you wrap the completed jack with
conductive copper tape when you are done. The Digi-Key part for this
is: J472-ND
3) Hybrid -- The
hybrid approach uses two bulkhead jacks at opposite ends of the PCB
with the less expensive right angle jacks in between. here you can
easily hold the PCB in place with the bulkhead jacks and still
connect to the center jacks.
My opinion is to use
#3, If I had to do it again, this is what I would have used.
10) The description
for D1 on the PLL board was inadvertently left off of the parts list
in figure 3. D1 is a 1N4148, 1N4448, 1N914 or really any general
purpose Silicon diode. D1 is a clamp to prevent the VCO tune line
from going too far negative if OPAMP U2 rails negative for any
reason, normally D1 is back biased off.
NEW - 11) John P. reports that
the MC145193 PLL chip is pin for pin compatable and works with the
source project. You must change the charge pump resistor on pin 8
from 17.8k to 3.92k (R7 on both PLL boards).
Hardware FAQ's:
Here are the FAQ's as
they relate to the hardware portion of the project:
1) A few folks always
seem to ask for plots of the PCB for debugging purposes. Well since I
laid out this PCB I will succumb this time and post them here. The
plots are in PCX format. Many programs can read this format including
the Microsoft Paintbrush program. Click here to download
the zipped PCX files for The Assembly, Component and Solder sides of
the PCB's
(113 k). These plots are not suitable for making your own PCB's
because they are not scaled. I recommend that you get your PCB's from
FAR
Circuits
because they are reasonably priced and known to work. If you do not
have a program that reads PCX files, go to www.zdnet.com and search for the program
Irfan View, several versions are available.
2) By using a Mini
Circuits frequency doubler (Model FD-1) on the output of the source:
2-500 and 2-1000 MHz may be achieved with very little degradation in
phase noise (6 dB per doubling). The power drops about 13 dBm per
doubling however, but this is an easy way to reach the upper VHF
bands with plenty of power left to test a receiver.
Software FAQ's:
Here are the FAQ's as
they relate to the Software (Firmware or PC Program) portion of the
project:
1) The associated
application software is available free as 0100HAGE.ZIP at the
ARRL/QEX
files site.
The program runs on Windows 95, 98 and NT and requires a standard
RS232 port driven by a 16550 UART for proper operation (all name
brand computers of 486DX and better should have this type of UART).
The download from the ARRL includes the executable files only, for
other files see below.
2) Only use Winzip or
some other 32 bit (i.e. long file name aware) unzipping program,
otherwise all the long filenames will be truncated to the old DOS 8.3
format and the program will refuse to install!!!
3) Overwriting of
outdated files during install the should be safe as these files are
all genuine, Microsoft files. If you don't feel safe about this, note
the name of the file name(s) the install program want's to update,
respond NO to the prompt(s). Then find these file(s), copy them to a
floppy and reinstall the program. This way if anything goes wrong,
you can recover from the problem.
4) You can uninstall
the program by going to -> Control Panel -> Add/Remove
programs.
5) The Visual Basic 5
Source code for the project is available by clicking
here. The
software is Freeware when used with the source project as described
in QEX. If you want to use the software for any commercial purpose,
then all I ask is that you contact me for a license. Fair
enough?
5) The ActiveX
install is available via e-mail. Please e-mail me (shageman@sonic.net) with your request and I'll
send it along. You must first install the PC control program (see
above) or have Microsoft Visual Basic 5 installed on your system, as
I will only send the ActiveX control, not all the required
components. You should have a firm grasp on how to register an
ActiveX control on a 32 bit Windows system, which should not be a
problem if you are developing code yourself (i.e. you need to know
how to run Regit.exe or a similar program). NOTE: The source code for
the ActiveX control is not currently available.
6) I write all my
firmware for the PIC's with the CCS PCM
C compiler
(Hey, life is just way too short for all that assembler stuff ;).
This is really a fine little compiler, and the best $99 dollar
compiler since QuickC ! Heartily recommended (the Hagtronics 'Two
Thumbs Up"). The PIC firmware can be downloaded by clicking
here.
NEW - 7) John P told me about
some odd behavior and when I looked at the problem I discovered a
problem in the Visual Basic source code. The problem prevents the PC
control program from stepping in true 1 Hz increments. I have a new
EXE file that fixes the problem. Download the VHF Source Version
1.0.1 EXE file here and unzip it over the one that you installed
previously. Version 1.0.1 allows the source to increment in true 1 Hz
steps.
8) Copyright:
The software is Freeware when used with the source project as
described in QEX. If you want to use the software for any commercial
purpose, then all I ask is that you contact me for a license. Fair
enough?
Other Information about RF
Sources on the WEB:
Agilent Technologies
(formerly Hewlett-Packard), the world leader in test and measurement
has many application notes available on RF source technology, please
take time to visit their web site at www.agilent.com and browse the selected
applications below,
- Making better
source measurements
- External
Frequency Doubling of the HP 8662A Synthesized Signal
Generator
- Phase Noise Test
with the HP 8644A and HP 8665A Signal Generators
- Testing &
Troubleshooting Digital RF Communications Receiver Designs
- Signal Generator
Information
You might be able to
find the application notes by following this link... www.agilent.com/find/apps
|Comments?| |To
Steve's Workshop Home|
Updated -
7Jan01
