工业用煞车/离合器 皓焕的磁粉式,
油压碟式及气压碟式式煞车/离合器设计用于大部分的收,
放料的剎车及张力控制系统.
气压碟式煞车-气动系统-气体驱动内里/盘片而控制轴承的激活及停止动作. 其中, 没有残留的气体被用于控制弹簧组或其它的内里/盘片回缩组件. 即使微量的气体均被应用于已预先获得的转矩阻力或张力环境.
磁粉式剎车及离合器-电磁粉系统-当磁线圈被激发,
由于电流场增强而使磁力增大和使磁粉被吸引,
在连续的滑动中,
因此转矩可被连续的传送.
因此,
甚至少量的磁粉即可被环绕于煞车及离合器的精确电流所控制,
藉以驱动或中止卷材动作.
磁粉煞车/离合器提供许多特色诸如广泛,
且容易的转矩控制,
稳定的滑动转矩及最大可允许的连续滑动散热率.
Hao-Hwan's
powder, disk, and air brakes/clutches
are designed for tension control of most winding systems.
Air and disk brakes/clutches- air-operated system - Shafts or rolls are actuated or stopped by the
action between air pressure and lining/disk. No residual air pressure is asked
to conquer springs or other retracting devices. Every minimum of air is used for
predetermined torque resistance or tension environment.

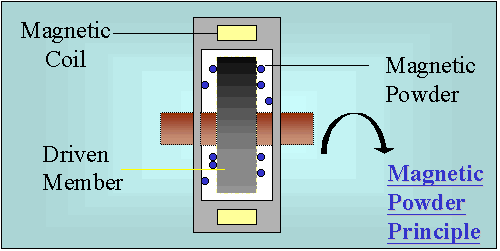

Powder brakes/clutches-electromagnetic powder-operated system - When the coil is excited,
attraction force tends to stiffen due to the flux strength and the powder is
attracted, so that torque is transmitted during continuous slipping. Thus, even
an ounce of powder can be fully controlled by precise current flow around brake
and clutch to actuate or stop the action of web.Powder brakes/clutche sprovide
many features such as a wide and easy torque
control,
stable slip torque and a large allowable continuous-slip heat-dissipation
rate etc.
|
Powder
Brakes & Clutches
磁粉式剎车及离合器 |
|
磁粉式剎车
/ 离合器基本规格:
|
型号 |
最大转距Kg-m |
重量(Kg) |
磁粉量 (g) |
容许速率 |
电压 |
|
|
PB-5剎车 |
5 |
17 |
|
50 |
1000
(max. rpm) |
DC
0~24V |
|
PB-10剎车 |
10 |
38 |
|
105 |
||
|
PB-20剎车 |
20 |
59 |
|
160 |
||
|
PC-5离合器 |
5 |
|
19 |
50 |
||
|
PC-10离合器 |
10 |
|
42 |
105 |
||
|
PC-20离合器 |
20 |
|
64 |
160 |
||
2.油压碟式剎车CALIPER-
DISC BRAKES
|
|
|
型式 |
长 |
宽 |
高 |
镙孔尺寸 |
盘片厚度 |
一般操作压力 |
最大操作压力 |
操作油量 |
|
850-213-10 |
150mm |
122.2mm |
85.2mm |
M12xP1.75 |
10mm |
50kg/cm2 |
70kg/cm2 |
2.5cc |
|
850-213-20 |
150mm |
132.2mm |
94.2mm |
M12xP1.75 |
20mm |
50kg/cm2 |
70kg/cm2 |
2.5cc |
3. BOOSTER :
| 型式 | 增壓比 | 汽缸直徑 | 長度 | 最大操作壓力(Air Inlet Kg/Cm2) |
| DB-3223T | 1 : 7 | 2" | 273mm | 7 |
| DB-3243T | 1 : 22 | 4" | 296mm | 5 |
3.气压碟式剎车
AIR-DISK
BRAKES
|
气压碟式剎车 AIR-DISK
BRAKES |
|
|
KAB-110, 120型剎车 |
KAB-210型剎车 |
|
|
|
|
型式 |
长 |
汽缸直径 |
盘片直径 |
盘片厚度 |
最大压力 |
增力比 |
汽缸面积 |
重量 |
|
KAB-110-
4 |
263mm |
141.5mm |
200~800
mm |
10mm |
7kg/cm2 |
1.83 |
78.5cm2 |
7kg |
|
KAB-110-
5 |
281mm |
176.5mm |
10mm |
143cm2 |
7.5kg |
|||
|
KAB-120-
4 |
263mm |
141.5mm |
20mm |
78.5cm2 |
7kg |
|||
|
KAB-120-
5 |
281mm |
176.5mm |
20mm |
143cm2 |
7.5kg |
|||
|
KAB-210-
4 |
225mm |
141.5mm |
10mm |
0.74 |
78.5cm2 |
4kg |
||
|
KAB-210-
5 |
225mm |
176.5mm |
10mm |
143cm2 |
4.5kg |
应用领域
5.AIR-DUAL DISK BRAKES
皓焕的煞车/离合器使用于各种收,
放料的卷筒物,
诸如应用在纸类,
薄膜,
橡胶,
纺织品,
铝箔等材料的张力控制系统.
Applications
Hao-Hwan's
brakes and clutches are designed for exact tension control
system where webs are unwound/rewound from rolls of material, for webs such as
paper, films, rubber, textiles and foils.
|
剎车型式 Brake Types
1.气压碟式剎车Air Brakes
2.磁粉式剎车及离合器Powder
Brakes 3.油压碟式剎车Disk Brakes |
|
特征
Benefit
1.
低价格
Low
Price
2.
容易操作
Easy
Operation
3.
适用于自动控制
Fit
to Automation Control
4.
操作灵敏及广泛和容易的力矩控制
Operating
Sensitively, and Wide and Easy Torque Control
5.
平稳的滑动转矩
Stable
Slip Torque
6.
极佳的连续散热率
A
Large Allowable Continuous-Slip Heat-Dissipation Rate
