Hao-Hwan's
powder, disk, and air brakes/clutches are designed for tension control of
most winding systems.
Air and disk brakes/clutches- air-operated system - Shafts or rolls are
actuated or stopped by the action between air pressure and lining/disk. No
residual air pressure is asked to conquer springs or other retracting devices.
Every minimum of air is used for predetermined torque resistance or tension
environment.

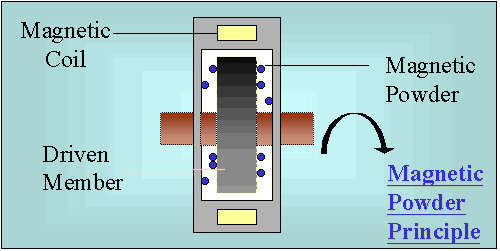

Powder brakes/clutches-electromagnetic powder-operated system - When
the coil is excited, attraction force tends to stiffen due to the flux
strength and the powder is attracted, so that torque is transmitted during
continuous slipping. Thus, even an ounce of powder can be fully controlled by
precise current flow around brake and clutch to actuate or stop the action of
web Powder brakes/clutches provide many features such as a wide and easy
torque control, stable slip torque and a large allowable continuous-slip
heat-dissipation
rate etc.
1.Electromagnetic powder clutch & brake
|
Electromagnetic powder clutch & brake |
|
Electromagnetic powder clutch & brake Specification:
| TYPE | Rated turning distance Kg-m | Weight (Kg) | Weight of powder (g) | Maximum number of turns | Voltage |
| PB-5 Brake | 5 | 17 | 50 |
1000
(max. rpm)
|
DC 0~24V |
| PB-10 Brake | 10 | 38 | 105 | ||
| PB-20 Brake | 20 | 59 | 160 | ||
| PC-5 Clutch | 5 | 19 | 50 | ||
| PC-10 Clutch | 10 | 42 | 105 | ||
| PC-20 Clutch | 20 | 64 | 160 |
2.CALIPER- DISC BRAKES & BOOSTER:
|
| TYPE | Length | Width | Height | Tap holes | DISC THICKNESS | Operate pressure | Max.Operate pressure | Discharge Oil Volume |
| 850-213-10 | 150mm | 122.2mm | 85.2mm | M12xP1.75 | 10mm | 50kg/cm2 | 70kg/cm2 | 2.5cc |
| 850-213-20 | 150mm | 132.2mm | 94.2mm | M12xP1.75 | 20mm | 50kg/cm2 | 70kg/cm2 | 2.5cc |
3. BOOSTER :
| TYPE | Pressure rate | Cylinder size | Length | Max.Operate pressure (Air Inlet Kg/Cm2) |

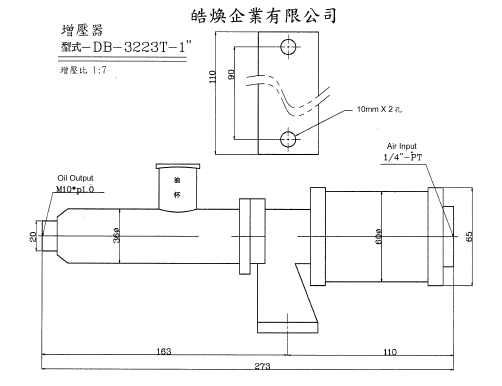

| DB-3223T | 1 : 7 | 2" | 273mm | 7 |

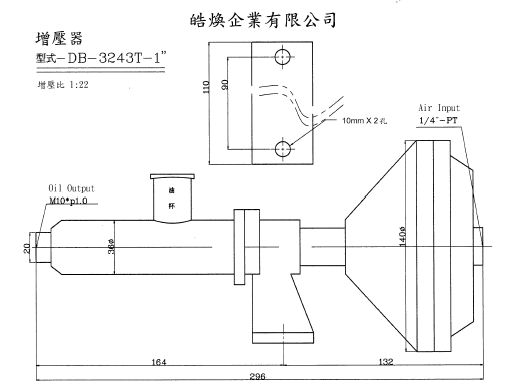

| DB-3243T | 1 : 22 | 4" | 296mm | 5 |
4. AIR-DISK BRAKES
| AIR-DISK BRAKES | |
|
KAB-110 / 120
|
KAB-210 |
 |
 |
| TYPE | Length | Cylinder size | USABLE DISC DIA | DISC THICKNESS | Max.Operate pressure | Pressure rate | Cylinder area | Weight |
| KAB-110- 4 | 263mm | 141.5mm |
200~800
mm |
10mm |
7kg/cm2
|
1.83 | 78.5cm2 | 7kg |
| KAB-110- 5 | 281mm | 176.5mm | 10mm | 143cm2 | 7.5kg | |||
| KAB-120- 4 | 263mm | 141.5mm | 20mm | 78.5cm2 | 7kg | |||
| KAB-120- 5 | 281mm | 176.5mm | 20mm | 143cm2 | 7.5kg | |||
| KAB-210- 4 | 225mm | 141.5mm | 10mm | 0.74 | 78.5cm2 | 4kg | ||
| KAB-210- 5 | 225mm | 176.5mm | 10mm | 143cm2 | 4.5kg |

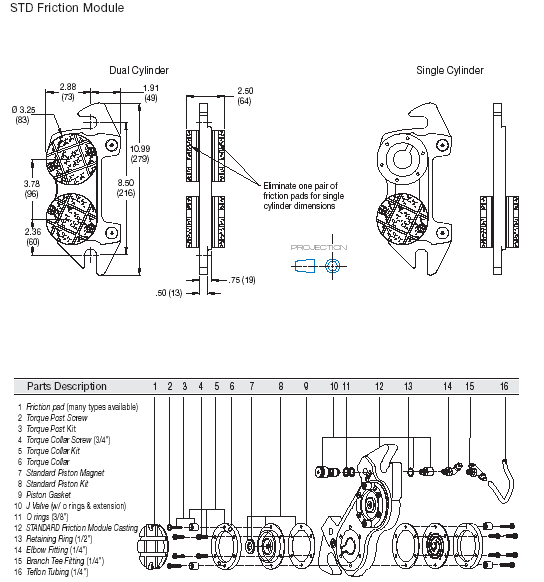

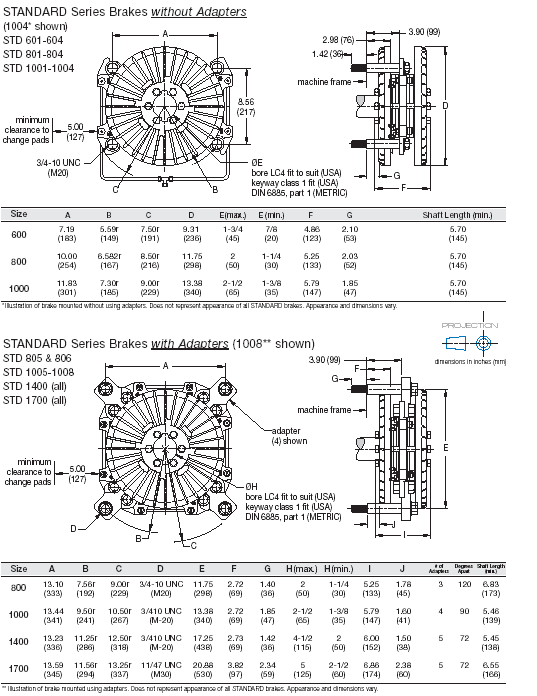

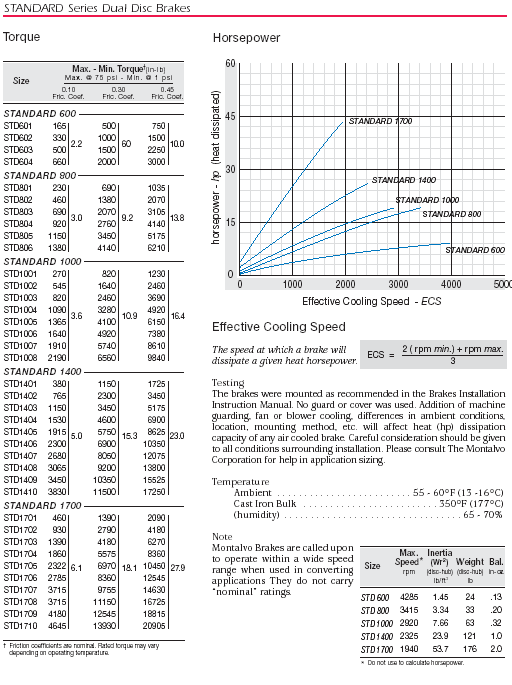

5.AIR-DUAL DISK BRAKES
Applications
Hao-Hwan's brakes and clutches are designed
for exact tension control system where webs are unwound/rewound from rolls of
material, for webs such as paper, films, rubber, textiles and foils.
Benefit
1.
Low Price
2. Easy Operation
3. Fit to
Automation Control
4. Operating
Sensitively, and Wide and Easy Torque Control
5. Stable Slip Torque
6. A Large Allowable Continuous-Slip Heat-Dissipation Rate
 |
