Presented at STAR West 1999



Finite State Model-Based Testing on a Shoestring



Harry Robinson

Intelligent Search Test Group

Microsoft Corporation





Abstract

Model-based testing is a software test technique that generates tests from an explicit model of software behavior. Modern programmable test tools allow us to use this technique to create useful, flexible and powerful tests at a very reasonable cost.





What Is Model-Based Testing?

Model-based testing is a technique that generates software tests from explicit descriptions of an application’s behavior. Creating and maintaining a model of an application makes it easier to generate and update tests for that application.



Several good model-based test tools are currently available in the market, but the techniques of model-based testing are not tied to any tool. This paper shows how anyone willing to do some test programming can implement model-based testing in low-cost test language tools. The test language used in this paper is Visual Test [1] from Rational Software.



In this paper, I will discuss how to use a test programming language to



  1. Create a finite state model of an application.

  2. Generate sequences of test actions from the model.

  3. Execute the test actions against the application.

  4. Determine if the application worked right.

  5. Find bugs.



What Is A Model?



A model is a description of a system’s behavior. Because models are simpler than the systems they describe, they can help us understand and predict the system’s behavior.



State models are common in computing and have been shown to be a useful way to think about software behavior and testing [2] [3]. A finite state model consists of a set of states, a set of input events and the relations between them. Given a current state and an input event you can determine the next current state of the model.



As a running example throughout this paper, we will create a simple finite state model of the Windows NT Clock application [4]. The Clock can be found as Programs\Accessories\Clock under the Start menu in Windows NT.







Figure 1: A Very Simple Finite State Model of the Clock



Figure 1 shows two forms of the Clock display. The left side shows the Analog display; the right side shows the Digital display. If the Clock application is in the Analog display mode, clicking the menu selection “Settings\Digital” moves the application into the Digital display. Likewise, if the application is in the Digital display mode, clicking the menu selection “Settings\Analog” moves the application into the Analog display.



We could use this very simple state model as a basis for tests, where following a path in the model is equivalent to running a test:



Setup:               Put the Clock into its Analog display mode

Action:              Click on “Settings\Digital”

Outcome:          Does the Clock correctly change to the Digital display?



Create a Finite State Model of an Application



Finite state models are excellent tools for understanding and testing software applications. However, a very large state model is needed to describe a complex system in enough detail to do a good job testing. A finite state model used in representing the behavior of an application is likely to have many, many states – so many that it would be tedious and unrealistic to create and maintain the model by hand.



The approach advocated in this paper allows you to generate large state models by describing the behavior of an application in terms of a small number of state attributes called operational modes [5]. Operational modes are the attributes of a state that determine what user actions are possible in that state and what outcomes will occur when actions are executed. For instance, whether or not the application is currently running is a common operational mode. Typically, if the application is NOT running, the only action the user can execute is to start the application. On the other hand, if the application IS running, the user has a much greater choice of actions that could be performed.



For the purposes of this paper, we will only be concerned with the following actions in the Clock:





The rules for these actions in the Clock application are as follows:







Our model in this example will have two operational modes, system mode and setting mode, which can have the following values:



System mode:

NOT_RUNNING means Clock is not running

RUNNING means Clock is running

Setting mode:

ANALOG means Analog display is set

DIGITAL means Digital display is set



We now have the actions, rules and operational modes for our model. We can use our test programming language to create a list of the state transitions in the finite state model. We will simply run through all possible combinations of operational mode values and print out any possible transitions.



The names of the states will appear as a list of operational mode values separated by periods. For instance, the state  “RUNNING.DIGITAL” means the application is running and the display is in Digital mode.
Here is the Visual Test code you would write to generate the model’s states and transitions:





for system_mode = NOT_RUNNING to RUNNING               ‘ for all system modes

       for setting_mode = ANALOG to DIGITAL                   ‘ for all setting modes

              for action = Start to Digital                   ‘ actions: Start,Stop,Analog,Digital

                     possible = TRUE                   ‘ assume action is possible

                     new_system_mode = system_mode            ‘ assume mode values do not change

                     new_setting_mode = setting_mode

                     select case action

                     case “Start”                             ‘start the clock

                           if (system_mode = NOT_RUNNING) then      ‘clock must be NOT running

                                  new_system_mode = RUNNING  ‘clock goes to running

                           else

                                  possible = FALSE

                           endif

                     case “Stop”                              ‘stop the clock

                           if (system_mode = RUNNING) then   ‘clock must be running

                                  new_system_mode = NOT_RUNNING     ‘clock goes to NOT running

                           else

                                  possible = FALSE

                           endif

                     case “Analog”                            ‘choose analog mode

                           if (system_mode = RUNNING) then   ‘clock must be running

                                  new_setting_mode = ANALOG  ‘clock goes to analog mode

                           else

                                  possible = FALSE

                           endif

                     case “Digital”                                  ‘choose digital mode

                           if (system_mode = RUNNING) then   ‘clock must be running

                                  new_setting_mode = DIGITAL ‘clock goes to digital mode

                           else

                                  possible = FALSE

                           endif

                     end select

                      if (possible = TRUE) then                       ‘ if action possible

                         print system_mode;”.”;setting_mode,             ‘ print begin state

                         print action,                            ‘ print action

                         print new_system_mode;”.”;new_setting_mode      ‘ print end state

                     endif

            next action

    next setting_mode

next system_mode



The state table printed by the code above after running through the values of the operational modes looks as follows:



Beginning State

Action

Ending State



NOT_RUNNING.ANALOG

Start

RUNNING.ANALOG

NOT_RUNNING.DIGITAL

Start

RUNNING.DIGITAL

RUNNING.ANALOG

Stop

NOT_RUNNING.ANALOG

RUNNING.DIGITAL

Stop

NOT_RUNNING.DIGITAL

RUNNING.ANALOG

Analog

RUNNING.ANALOG

RUNNING.ANALOG

Digital

RUNNING.DIGITAL

RUNNING.DIGITAL

Analog

RUNNING.ANALOG

RUNNING.DIGITAL

Digital

RUNNING.DIGITAL

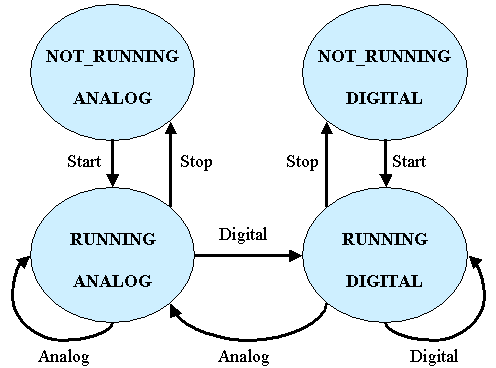

Figure 2: State Transition Diagram for the Clock Model



Figure 2 shows a graphic representation of the finite state model. The circles represent states and the arcs represent actions.

We can see how running the Start command from the “NOT_RUNNING.ANALOG” state brings the application into the “RUNNING.ANALOG” state. We also might note with interest that it is possible to run the Analog command while in the “RUNNING.ANALOG” state; the arc loops back to “RUNNING.ANALOG”, meaning that the application ends up in the same state it started from.



Generate Sequences of Test Actions from the Model



As we pointed out with Figure 1, testing an application is like following a path through a finite state model. Now that we have our state model constructed, we can use various techniques to choose what paths we want our tests to take through it.



One of the most popular choices is to allow the tests to move randomly through the state model, taking any available action out of a state. Given enough time, these random walks can cover a good part of the application. The random nature of their choices means that they tend to produce unusual combinations of actions that human testers wouldn’t bother to try, such as

Start

Analog

Analog

Analog

Analog

Analog

Stop

A more advanced path generation technique, called a “Chinese Postman tour”, touches every action in the state model as efficiently as possible. (For more information on generating paths through a finite state model, see [6].) A Chinese Postman tour on our simple state model might look as follows:

Start

Analog

Digital

Digital

Stop

Start

Analog

Stop



These sequences of actions can be stored in an external file (such as “test_sequence.txt” in this case). This action sequence file then serves as the instructions to the test execution phase.



Execute the Test Actions Against the Application



Visual Test has a rich set of functions for interacting with the application you are testing. The table below lists some examples of these functions and a description of what they do.



Run(“C:\WINNT\System32\clock.exe”)

Starts the Clock application

WMenuSelect( “Settings\Analog”)

Chooses the menu item “Analog” on the “Settings” menu

WSysMenu( 0 )

Brings up the System menu for the active window

WFndWnd("Clock")

Finds an application window with the caption “Clock”

WMenuChecked("Settings\Analog")

Returns TRUE if menu item “Analog” is checkmarked

GetText(0)

Returns the window title of the active window





The test execution phase is kept deliberately simple. The program listed below reads in a list of actions from a file, executes the function associated with that action, and then reads the next action from the file.



As an example, suppose the first two actions in “test_sequence.txt” are “Start” and “Analog”. Our test execution program would read “Start” from the file and execute the Visual Test function run("C:\WINNT\System32\clock.exe”) associated with “Start” action. Our program would then read “Analog” from the file and execute the WMenuSelect("Settings\Analog") function associated with the “Analog” action.



open "test_sequence.txt" for input as #infile   ‘get the list of actions

while not (EOF(infile))

line input #infile, action               ‘read in an action

select case action

case "Start"                             ‘start the Clock

run("C:\WINNT\System32\clock.exe”) ‘VT call to start Clock program

case "Analog"                            ‘choose analog mode

WMenuSelect("Settings\Analog")    ‘VT call to select menu item Analog

case "Digital"                                  ‘choose digital mode

WMenuSelect("Settings\Digital")   ‘VT call to select menu item Digital

case "Stop"                              ‘stop the Clock

WSysMenu (0)                      ‘VT call to bring up system menu

WMenuSelect ("Close")                    ‘VT call to select menu item Close

  End select

Test_oracle()                     ‘determine if Clock behaved correctly

wend





After each action is executed, a test oracle function, described in the next section, is called to determine if the application behaved as the model expected.





Determine if the Application Worked Right



A test oracle is a mechanism that verifies if the application has behaved correctly. One of the great benefits of model-based testing is the ability to create a test oracle from the state model.



In the case of our simple Clock model, we would like to verify whether the Clock is running or not, and we would like to verify whether we are in Analog or Digital display mode.



To determine if Clock is running, we can use the WFndWnd(“Clock”) function call in Visual Test to look for the application window captioned “Clock”.



Finding out whether the Analog or Digital display is showing is slightly trickier. Since both the Analog and Digital clock faces are images that cannot easily be interpreted by the test program, we will resort to some secondary characteristics of the application.



If you look carefully at the two “Settings” menus displayed in Figure 3, you will see that the menu item for the current display mode has a checkmark next to it. We can use this information for our oracle. If we are in Analog display mode and we bring up the “Settings” menu, we will expect to see a checkmark next to the word “Analog”; otherwise, we must be in Digital display mode and we will expect to see a checkmark next to the word “Digital”. This method is not as direct as looking at the display (as a person could) but it allows us to compensate for what the test program cannot see.



Figure 3: The menu checkmarks indicate whether the Clock is in Analog or Digital display mode



Here is Visual Test code that implements the test oracle for the Analog/Digital display mode:



if (system_mode = RUNNING) then

if ( WFndWnd("Clock") = 0 ) then                ‘if no “Clock” running

print "Error: Clock should be Running"   ‘print the error

stop

endif

if  ( (setting_mode = ANALOG) _                 ‘if analog mode

AND NOT WMenuChecked("Settings\Analog") ) then  ‘but no check next to Analog

print "Error: Clock should be Analog mode"      ‘print the error

stop

elseif  ( (setting_mode = DIGITAL) _                   ‘if digital mode

AND NOT WMenuChecked("Settings\Digital") ) then ‘but no check next to Digital

  print "Error: Clock should be Digital mode"     ‘print the error

stop

endif

endif



Find Bugs

Testing is about finding bugs. Model-based testing finds bugs by executing the application and verifying the results against the state model. When discrepancies between the application and the model are detected, the test program alerts the tester.



Here are two interesting bugs that surfaced in the model-based testing of Clock. The first bug (Figure 4) was detected when the tests were no longer able to find the clock face. Some investigative work turned up that the problem occurred when the sequence to the left of the figure was executed. Every time this sequence was executed, the Clock window would reappear a few pixels smaller.









Start

Maximize

Stop

Start

Minimize

Stop

Start

Restore

Stop





Figure 4: The Incredible Shrinking Clock Bug



A second Clock bug showed up when the sequence in the center of Figure 5 was run.

The images at the top of Figure 5 show how the date is supposed to be displayed in MM/DD/YY format. The images at the bottom show how the two-digit year is left off after the center sequence is executed. The bug was originally detected in Analog mode (since the test program cannot read the date in Digital display mode), but the bug was easy to reproduce manually in Digital mode.









Start

Minimize

Stop





Start

Restore

Date









Figure 5: Where Have the Years Gone?



This anomaly in the date was detected by a test oracle routine that looked something like this:



title = GetText(0)                                     ‘get window title

if ( setting_mode = ANALOG) _                                 ‘ if we are in Analog mode

AND WMenuChecked("Settings\Date")  then                ‘ AND the date is turned on

       if ("Clock - " + date$ <> title ) then          ‘ window title should include date

              print "window title is wrong:", title

       endif

else

       if ("Clock" <> title ) then                     ‘ window title should read “Clock”

              print "window title is wrong:", title

       endif

endif



Conclusions



Model-based testing is a new and evolving technique that allows us to automatically generate software tests from explicit descriptions of an application’s behavior. Because the tests are generated from a model of the application, we need only update the model to generate new tests when the application changes. This makes model-based tests far easier to maintain, review and update than traditional automated tests.



Low-cost general-purpose test programming languages such as Visual Test’s BASIC have sufficient power to allow us to create a finite state model and to generate test paths through that model. Application interface functions (such as WMenuSelect and WMenuChecked) enable the test program to manipulate application controls and to verify the state of those controls.



Testers who are willing and able to create model-based test programs can create flexible, useful tests for the cost of a general-purpose test language tool.



For More Information



For more information on model-based testing, including a fuller discussion of the Clock model and a bibliography of model-based testing papers, please go to the http://www.model-based-testing.org/ website.



References



[1] Visual Test is a trademark of Rational Software Corporation.



[2] Apfelbaum, Larry. “Model-Based Testing”, Proceedings of Software Quality Week 1997



[3] Beizer, Boris. Black Box Testing: Techniques for Functional Testing of Software and Systems, New York, John Wiley & Sons, 1995



[4] The Clock application used in this paper is found in Windows NT 4.0 (Build 1381 Service Pack 4).



[5] Whittaker, James A. and El-Far, Ibrahim K.  Automated Construction of Behavior Models for Software Testing”, IEEE Transactions on Software Engineering, (submitted)



[6] Robinson, Harry. “Graph Theory Techniques in Model-Based Testing”, Proceedings of the International Conference on Testing Computer Software 1999
