Blohm & Voss Bv 155B

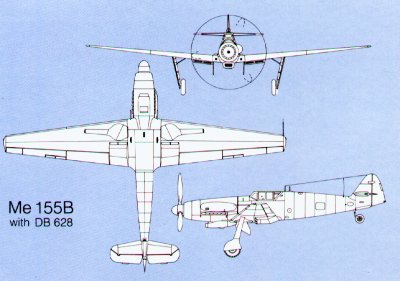

Messerschmitt Me 155B

The origins of the Blohm & Voss Bv 155 lay in a meeting held at the Messerschmitt's Augsburg plant in May 1942 to discuss the "Special High Altitude Fighter". Both Messerschmitt and Fock-Wulf expressed interest in developing a special high altitude fighter, Messerschmitt had already done some design work on a related project. Messerschmitt's preliminary study, known as the Bf 109 ST, which had been allocated the official RLM 8-series aircraft designation Me 155. The number 155 had previously been assigned to the Klemm firm but since it had not taken up the number the RLM reassigned it to Messerschmitt. At the same time, numbers 152, 153 and 154, which had also been allocated to Klemm but not used, were reassigned to Focke-WuIf. The original Me 109 ST was advanced in three variants; A, B & C (version A) called for a carrier/aircraft fitted with the DB 605, while (version B) called for a similar fighter powered by the high altitude DB 628. In order to relieve his already over committed design bureau and to speed development, Messerschmitt decided to transfer the Me 155B to Paris. Due to various problems work progressed only slowly throughout the remainder of 1942. By early 1943 things were starting to go wrong with the project, whares Fock-Wulf were progressing well with their Ta 152, little had been achieved with the Me 155B. During the first half of 1943, Messerschmitt's design engineers had evolved basic parameters of an (extreme high altitude fighter) design study under the company designation Me P1091. By mid 1943 the Messerschmitt people were vacillating as ever pursuing the Me 209H in competition with the Ta 152H and turning there Me P1091 in to the Me 155B.

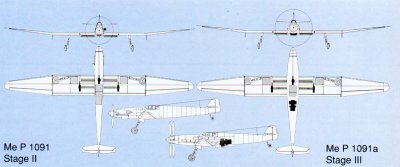

Messerschmitt Me P1091

Contrary to what was thought at Blohm & Voss , Messerschmitt had actually done little work on the Me P1091. Over the next few weeks the Blohm & Voss team began to discover this shortcoming for themselves. The Blohm & Voss engineers were not impressed with Messerschmitt's drawings, and it was only a question of how much had to be changed. It soon became obvious that almost every system of the Me 155B including the wings, fuselage, tail assembly, accommodation of the turbosupercharger and landing gear, were inadequate. In September 1943 it was decided to construct 5 prototypes, however soon after, Blohm & Voss decided that the still unresolved design problems needed fixing. By late 1943 these had still not been fixed, at a high powered meeting to address these problems the Messerschmitt people didn't show up. The meeting was finally held, but with little to show for all the effort. Blohm & Voss were also later asked for more workers again to get the project moving. As late as November 1943 there were still changes being made to the design or weapons fit. . Another of the changes Blohm & Voss were contemplating was to abandon the complex series of first eight, and then four, underwing radiators favoured by Messerschmitt for two large scoop-type units to be mounted above the wings. A mock-up of the design was built and tested at the LFA wind but, by this time, everyone at Blohm & Vess was fed up with the lack of cooperation coming from Messerschmitt. Late in 1943 Blohm & Voss formally advised the RLM of their problems with Messerschmitt and implored them to intervene.

Blohm & Voss Bv 155A

With the official transfer of the Me 155B to the Blohm & Voss firm, the designation of the aircraft was changed to the BV 155A. Finally freed of the constraints imposed by Messerschmitt, Blohm & Voss immediately set about to re-evaluate the new fighter. After a thorough critical review of the BV 155A, the Blohm & Voss engineers came to the conclusion that it would be less costly and more sensible if they dropped this design and instead, went directly to the BV 155B. Which they had in the meantime evolved. The most obvious feature of the B-series was the re-positioning of the two large scoop radiators from above to below the wings. This was done to achieve better stability and to improve airflow to the units. The starboard radiator was to cool engine lubricants, while the port radiator serviced the oil heat exchanger, aftercooler and intercooler. By the spring of 1944, all major systems had been designed, the question of engine and armament resolved and plans were made to begin immediate construction of the first of the five prototypes.

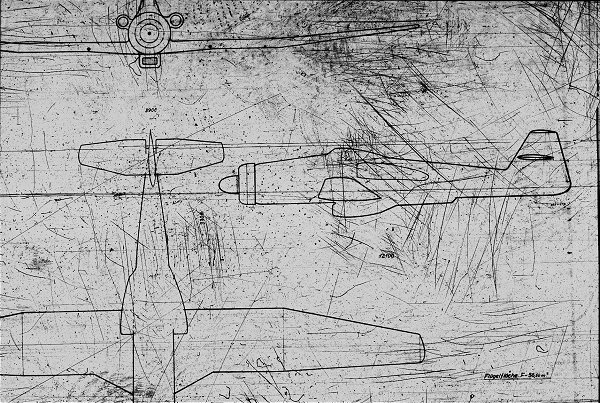

Original Bv P205 drawing

Blohm & Voss Bv P205

By mid 1944 it was proposed to have all 5 Bv155 prototypes completed by mid 1945. Meanwhile Blohm & Voss had been working on the Bv P205, this had a different layout to the Bv 155B originally intended to have the 4,000 hp 24-cylinder, water-cooled, Argus As 413. Due to the expected un-availability of this engine the Bv P205 in its final form it was to be powered by the DB 603U. The BV P205 eliminated the two large wing-mounted radiators, shortened the wing span and reduced the landing gear wheel track. An annular radiator was incorporated in the nose, while two moderately large radiator air scoops were positioned on either side of the fuselage, near the cockpit. Clearly Blohm & Voss thought that the Bv P205 had potential, with reducing the number of radiators and changing the engine cooling system could save weight & reduce drag. This new aircraft design was approved and the BV 155C designation given. There was now a need for more prototypes to be built, V1 to V3 were to be B series aircraft with V4 to V7 being Bv 155C prototypes. The first Bv 155B prototype was expected to be ready in December 1944. Then later it was decided By Blohm & Voss & the RLM to build only 2 Bv 155B prototypes & then go straight to the C series. Early in August 1944 the full size mock-up was ready for inspection, this being satisfactorily completed the construction of the first prototypes was pushed on as fast as possible.

Blohm & Voss Bv 155B

By September 1944 a revised schedule had the Bv 155BV1 ready in December 1944 & V2 ready in January 1945, at the same time the number of C series pre-production aircraft was raised to 30. During October 1944 the Bv 155B was reclassified as an "Escort Fighter" this was possibly because at this stage there was a massive reappraisal of all aircraft production going on in the German aircraft manufacturing industry with many production orders being curtailed or cancelled. During this period the V1 & V2 prototypes were nearing completion , with the V1 prototype being completed just prior to Christmas 1944. After various vibration tests, the first flight was set for mid January 1945. At about this stage work was still being done on finalising the layout for the Bv 155C meanwhile the BV 155 V2 was about half finished, while the BV 155 V3 was only 30 percent complete. Early in January 1945, meetings were held in an effort to determine how and where production of the BV 155 could be decentralised . It was proposed that the Focke-WuIf and Dornier firms should become involved. However, both of these manufacturers were already heavily committed with their own programs and little hope was placed on either coming on line until at least March 1945. Finally on Monday, February 5, 1945, the BV 155 V1, W.Nr. 360051, was handed over to the flight section at Blohm & Voss.

Blohm & Voss Bv 155B (V2? May 1945)

Meanwhile, Blohm & Voss officials decided to halt all further work on the incomplete BV 155 V3, and to concentrate all efforts toward completion of the first C-series prototype, the BV 155 V4. Meanwhile it was time for the maiden flight of the Bv 155B V1 the date was February 8 1945. This first flight was cut short by leaking coolant, but luckily the Bv 155B landed without further incident. Working around the clock, the necessary repairs and modifications were completed and on February 10, 1945, a second flight was carried out, this time without a repeat of earlier coolant leaks. However, the test pilot noted the take-off was difficult due to the soft, muddy conditions of the grass field. This was the result of rain over the previous two days. It was also noted that aircraft's exceptionally wide undercarriage track (21 ft 11 in 6702 mm) was the chief reason for the aircraft's tendency to ground-loop, even during perfectly soft landings. There was also a problem with the main wheel doors not closing properly, this was a potentially serious problem as it could obstruct the air flow through the wing mounted radiators. Low cloud also prevented any high speeds being attained on this flight, only being able to attain a max speed of 218 mph landing approach speed was a modest 106 mph. After the second test flight, the BV 155 V1 was rolled back in hangar 2 where additional work was carried out to correct the problems. In the next two weeks plans were made to carry out tests using special flight measuring equipment to be carried onboard and operated by the pilot. It was planned to fit a semi-automatic camera to record certain flight conditions. A total of forty frames were planned with which it was hoped that much additional flight information could be recorded. Then on February 20, 1945, a secret directive from OKL headquarters in Berlin to Blohm & Voss was received advising them that the BV P212 and BV 155 had been included in the current Emergency Program. Thursday, February 21,1945, was a busy one for the Flight Mechanics Section at Blohm & Voss as they rushed to complete vibration tests with the BV 155 V1's engine lubricating system in anticipation of the next test flight. This was to be on Monday, February 26, 1945. With the aircraft's gross weight now at 13,007 lbs (5,900 kg), the Bv 155 V1's third take-off was flawless, despite the very soft condition of the field. The pilot had no trouble keeping the aircraft on its course as he sped across the field and left the ground. As in the two previous flights, the short take-off run was impressive. After take off there was more trouble with the main gear doors not closing properly, eventually on the third attempt the gear was fully stowed, but in the process additional damage had been done to the wheel doors.

Blohm & Voss Bv 155C

Fortunately, coolant temperatures remained constant between 225 and 230 degrees F (107~110 Deg C), which were within permissible limits. This third test flight was relatively uneventful but upon Postflight inspection, it was revealed that there had been another fluid leak in the drain tank, and a crack in the wing spar near the aileron lever weld & the main gear doors. With the arrival of March 1945, Blohm & Voss busied itself with making repairs and modifications to the BV 155 V1 while pushing ahead toward completion of the BV 155 V2. At Blohm & Voss on March 7, 1945, it was decided that the BV 155 V1 would log at least 10 flight hours in March and 15 hours in April, with most flights to be carried out at astonishing altitudes of between 45,933 and 52,493 feet (14-16 km). It was further proposed that the BV 155 V2, W.Nr. 360052, would be finished and flight-cleared in March, with up to 10 hours of test flights scheduled for April 1945. Over the next month work was continued on the second prototype, whilst repairs and minor modifications to the first prototype. With so many unresolved problems associated with the forth prototype, the first machine of the C-series, there was little progress toward construction and only a few items of hardware were built. There is no surviving record of additional test flights carried out with the first prototype prior to the arrival of the British. It is very doubtful any were made. On May 3, 1945, the city of Hamburg surrendered to the British.

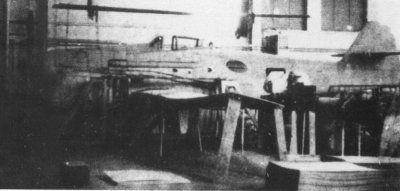

Blohm & Voss Bv 155C wooden mock-up May 1945

All German personnel were ordered out of all Blohm & Voss facilities without exception. For the entire month of May no German was allowed in the prohibited area. British authorities were keenly interested in the aircraft and facilities they found at the Blohm & Voss plant. The British lost little time declaring which items were to be shipped to Britain for examination. Pushing open the doors to Hangar 2 Where the BV 155 V1 had been kept, they made immediate plans to transfer the prototype to England. In Hangar 1 they discovered the still incomplete BV 155 V2, while the mothballed BV 155 V3 was quickly located outside Hangar 1.

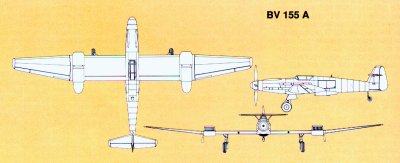

Blohm & Voss Bv 155A

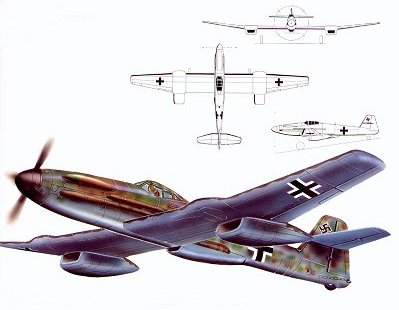

Blohm & Voss Bv 155B

Blohm & Voss Bv P205

Blohm & Voss Bv 155C

Determining what became of the three BV 155 prototypes once they fell into British hands is quiet complex and has led to much confusion. It would appear that the Bv 155BV1 was airworthy when captured. It was test flown by the British after the application of national insignia & the serial PN820? Apparently the British pilot experienced an in-flight problem which forced him to make an emergency landing. In the ensuing crash-landing the prototype was damaged and was written off. The exact nature of the accident remains unclear.But, in any case, the British, were deprived of the only airworthy example of the BV 155B. The British then quickly collected all components of the incomplete BV 155 V2 and shipped them to the Royal Aircraft Establishment (RAE) at Farmborough, England. During the exhibition of captured German aircraft held at the end of October and running up to November 9,1945.

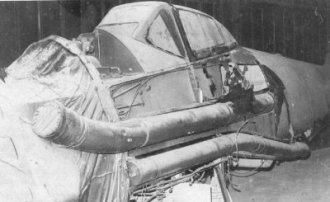

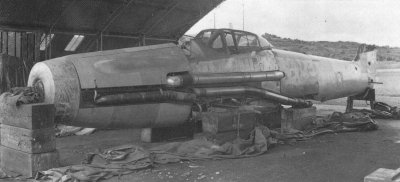

Sole surviving Bv 155B at Silverhill 1973

The assembled but still incomplete second prototype was placed on indoor public display in "A" Building. The incomplete third prototype, which in the meantime had also been delivered to RAE Farmborough, was transferred to No. 47 M.U. where it was prepared for transfer to the United States. There was some thought put into completing the second prototype & testing it but like other such projects at the end of the war, but budget cuts stopped them. After the third prototype was shipped to the USA where it was given the designation FE-505. It was then held in storage at Wright Field's Air Technical Services Command for a number of years. It was then given a T2 number, T2-505 and placed in indefinite storage at the National Air and Space Museum's Paul E. Gerber Restoration Facility at Silver Hill, Maryland.

The major source for the above was

Blohm & Voss 155 Monogram Close-Up No 20

German High Altitude Interceptors Reichdreams Dossier No 12

This is where things tend to get interesting & intriguing.

One of the first things of note is the fact that some books say the A-version was built & flew late in 1944 or early 1945. Others say that the A-version first flew in late 1944 then it was decided to build the B version & that this one flew in early 1945. It is hard to believe that the A-version was ever built? Has anyone seen a photo?

In Reichdreams No 12 (German High Altitude Fighters), it states that the over wing radiators were found to be in a vacuum area during wind tunnel testing & would not work! This would have to be the major reason that the A-version was never built. Although prototypes were virtually hand built, they still needed time to make such a change, it was not only the position of the wing radiators that changed between the A & B versions.

In Warplanes of the Third Reich, it shows a picture of the A- version calls it Bv 155B (V1) and says it first flew on September 1 1944 with that of the V2 (a proper B- version) as 8 February 1945. This book also has the Bv P205 mislabeled as the Bv 155C.

In German Aircraft of the Second World War, it says the A-version V1 first flew on 8 February , then because of cooling problems (the over wing radiators) the radiators were moved to below the wing on the second prototype, which first flew on 15 February. (7 days to complete the second prototype & move the radiators)!. This book also claims that the C-version had been completed but not flown by wars end!

In Die Deutsche Luftrustung 1933-1945, it does not mention the A-version but says that the B-version first flew in September 1944. This book also mentions that the Americans got the second prototype.

Then the next interesting bit is the identity of the Aircraft at Farmborough in 1945 & Silverhill today?

In War prizes, it says that the V2 was at Farmborough & that the V2 is now at Silverhill unlike Blohm & Voss 155 Monogram Close-Up No 20,which says that the V2 was at Farmborough in 1945 & that the V3 was sent to America. Also in War prizes, it does not say much about the RAF serial PN820 other than it was allocated to the V2 (V1 in Blohm & Voss 155 Monogram Close-Up No 20).

Another point of note is that there is a drawing in German Aircraft Landing Gear p66 that shows the over wing radiators & is titled 8-155B.

I am interested in finding any more articles on the Bv 155, if you know of any please e-mail me the details

  Me 155B Me P1091 Bv 155A Bv155B Bv P205 Bv 155C
Stage Design Design Design Flight test Design Prototype
Engine DB 603U DB 628 DB 603U DB 603U DB 603U DB 603U
Wingspan 21 m 20 m 20.8 m 20.33 m 18.72 m 19.05 m
Length 11.65 m 11.95 m 12 m 12.1 m 12.276 m 12.10 m
Weight full 5,530 kg     6,037 kg 6,200 kg 6,384 kg
Weight Empty 4,870 kg     5,199 Kg   5,682 kg
Max speed 690 km/h     690 km/h 700 km/h 690 km/h
Ceiling 16,590 m     16,950 m   16,830 m
Armament 3 x MK 108 3 MK 108 1x MK108 & 2  other MG 1x MK108 & 2 x MG 151/20 1x MK108 & 2 x MG 151/20 1x MK108 & 2 x MG 151/20


Sources

My model photo of the Bv P205 can be found on my model page

Any Comments please feel free to

This page was last edited on 16/03/01
