Mistel 5
The Mistel 5 can best be summed up as in one reference I have, which states "The Mistel 5 comprised a Ju 268 or Ar E377a & a He 162A or Me 262A"

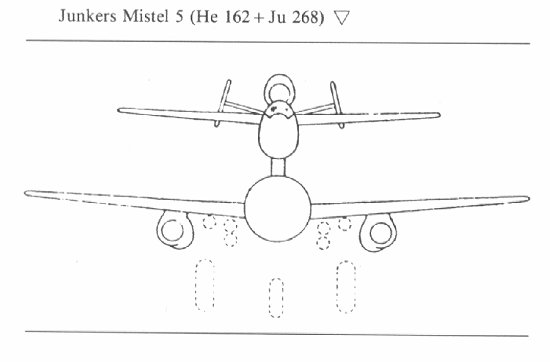

Ju 268 / He 162A


Ar E377a / He 162A

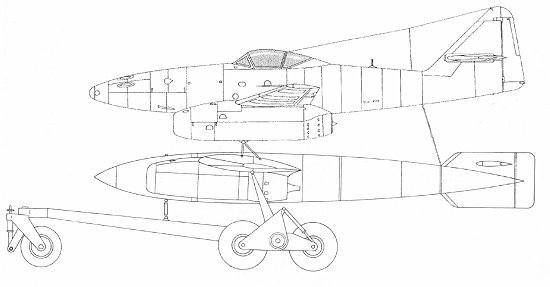

Ar E377a / Me 262A
Ar E377 Ar E377a Ju 268
Structure Wood Wood
Engines none 2 BMW 003A 800 kg thrust each 2 Jumo 004B 900kg thrust each or 2 BMW 003A 800 kg thrust each
Guidance Inertial autopilot
Span 11.5 m
Length 10.638 m 10.584 m
Height 1.368 m
Launch Weight 10,480 kg
Max Speed 780 km/h 800 km/h
Warhead 2,000 kg hollow charge 3,500 kg




my model

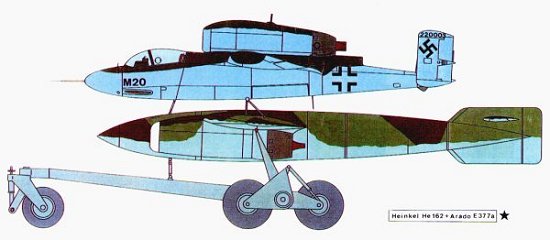

Ar E377a / He 162 Model photo

Any Comments please feel free to e-mail me.

This page was last edited on 03/09/99
