Bluechip - 23 wires

One chip for " 30005R/30006R/30007R " type PS2
Direct boot all PS2 disc - CD/CDR/DVD/DVDR/ SILVER
Direct boot all PS1 disc
For all PS2 media disc, power up normally
it will be default for all PS2 game
For PS1 and DVD Movie, power up with reset 'till
the blue eject light

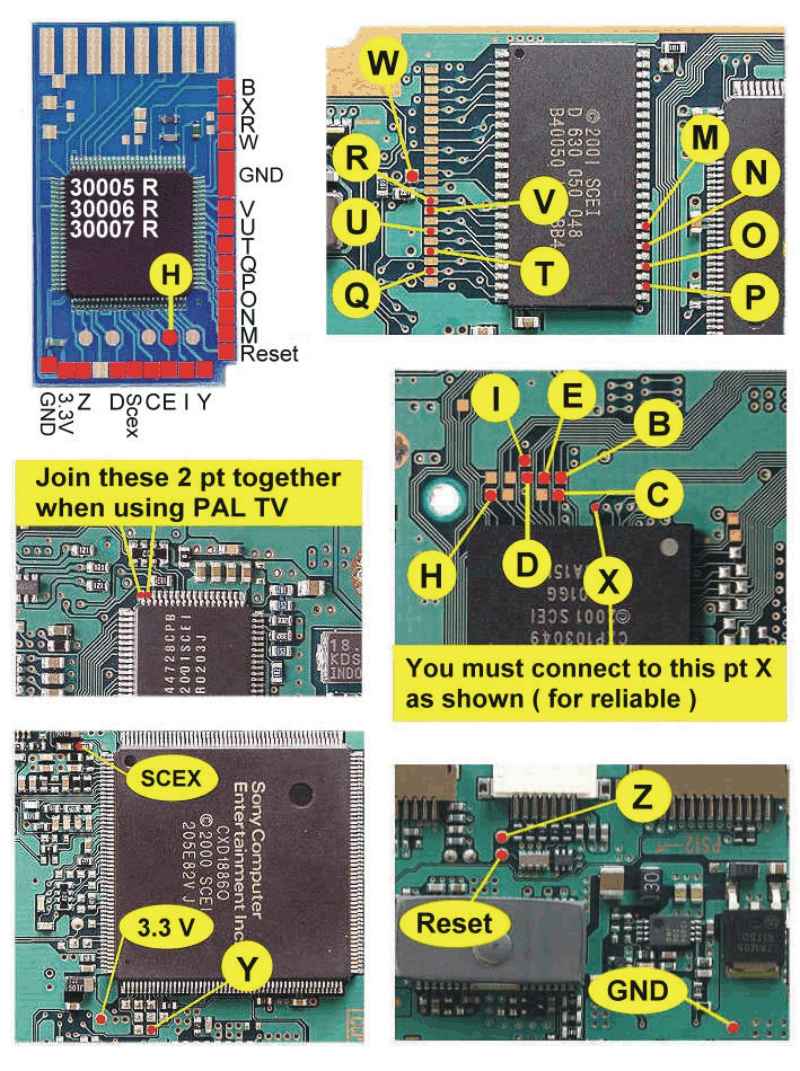

it will be default for PS1/DVD Movie Diagram

39001 USA Version with D9 games

Bluechip-Asia Diagram 30005R 30006R 30007R
