AT89C2051/ AT89C4051 AD Converter with 64 Voltage step



By Dillian Wong, 6/1/04

Abstract

 In this article I will be showing the results of an experiment using 2051 as an Analog to digital converter with 64 voltage steps. This experiment will show using 2051 as an AD converter, the performance is not good for measuring the sensitive voltage source. The methods adopted in this converter are not as accurate as the ADC084 but it is less expensive, uses less power, and is easily modified to suit specific needs.



Introduction

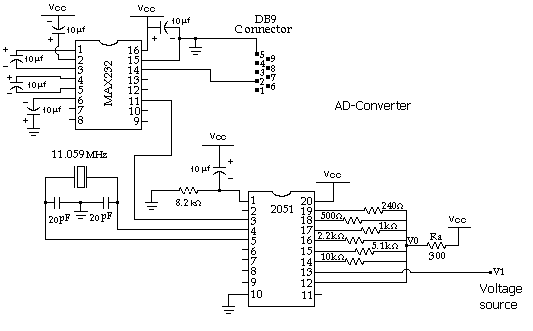

 The method uses the build in analog comparator on the 2051. The voltage source (normally generated by sensor circuit) is connected to the negative input of the comparator (P1.1). 2051 is programmed that will drive the ladder circuit and generate a reference voltage connected to the positive input of the comparator (P1.0). The output of the comparator goes to P3.6. P3.6 is not an external pin on the 2051. It can only be accessed by the internal software. If the voltage at P1.0 is higher than P1.1 then P3.6 will be 1. If the voltage at P1.0 is lower than P1.1 then P3.6 will be a 0.



By using the other 6 pins of Port 1(P1.2-P1.7). We can generate a voltage using a resistor network connected to those pins. By changing the values of the port 1 pins. It can get as close as possible to matching the voltage source. Then we will have a 6 bit digital value that is a reflection of voltage source.

These 6 pins are connected to V0 through a resistor. Setting a pin to 0 or 1 will change the equivalent resistance that is combined by 6 pins to V0 resistors. When a pin is 0, that pin resistance is contributed to the equivalent resistance; when a pin is 1 that pin resistance does not contribute to the equivalent resistance as two ports is +5V. The resistor Ra determines the actual voltage at V0.



To find the right digital output to create the right voltage to match the voltage at P1.1(V1), the program start at 000000 and count up until the comparator output at p3.6 switches to 1. Then notice the user that the generated voltage is higher than the voltage source. That is a ramp type AD conversation. For faster conversation, the successive approximation conversation should be used.



Experiment



Increase the digital voltage step, measure the reference voltage that generated by the ladder circuit and potential divider. No analogy input signal is applied.



Measurement



Digit Step

Analog Voltage (V)



Digit Step

Analog Voltage (V)



Set1

Set2





Set1

Set2

0

5.073

5.078



34

2.512

2.499

1

4.88

4.883



35

2.418

2.404

2

4.769

4.774



36

2.447

2.434

3

4.547

4.551



37

2.355

2.341

4

4.429

4.434



38

2.336

2.321

5

4.222

4.227



39

2.251

2.236

6

4.131

4.135



40

2.348

2.334

7

3.944

3.945



41

2.261

2.246

8

4.002

4.002



42

2.242

2.227

9

3.817

3.817



43

2.16

2.146

10

3.74

3.739



44

2.182

2.168

11

3.572

3.571



45

2.103

2.089

12

3.515

3.513



46

2.085

2.072

13

3.359

3.357



47

2.019

1.998

14

3.295

3.293



48

2.159

2.141

15

3.152

3.15



49

2.08

2.06

16

3.287

3.285



50

2.065

2.044

17

3.141

3.139



51

1.992

1.97

18

3.09

3.088



52

2.01

1.988

19

2.958

2.959



53

1.938

1.916

20

2.967

2.969



54

1.923

1.901

21

2.846

2.849



55

1.855

1.834

22

2.809

2.818



56

1.928

1.907

23

2.714

2.71



57

1.859

1.838

24

2.834

2.829



58

1.844

1.823

25

2.723

2.717



59

1.779

1.759

26

2.695

2.69



60

1.792

1.772

27

2.594

2.587



61

1.728

1.77

28

2.622

2.614



62

1.712

1.695

29

2.522

2.515



63

1.65

1.636

30

2.497

2.492









31

2.397

2.406









32

2.635

2.625









33

2.533

2.521









Results

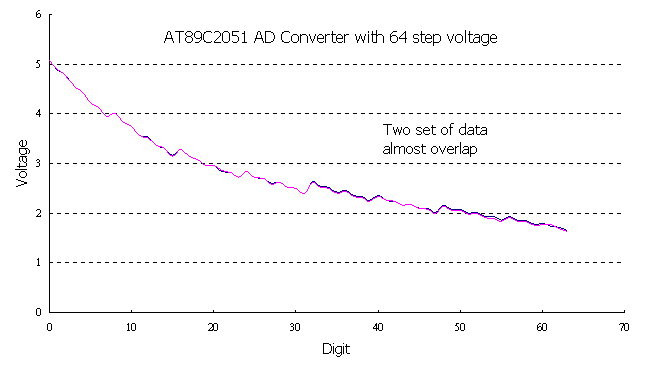

The results show that the digital output corresponding the generation of the voltage reference V0 is not perfect linear. 1) Fluctuation at some digit values, and this will restrict the tracking of the AD conservation. The lower digit may have voltage lesser the higher digit. 2) The falling rate of voltage at higher digit side is less than that at lower digit side; the weight of each voltage step is not equal. The non-linear problem towards the voltage step is due to the mismatch of the ladder circuit resistance that is used to generate a reference voltage.



Conclusion

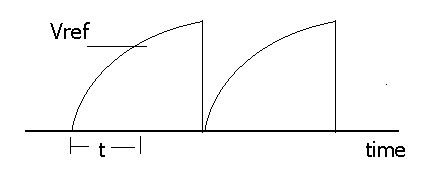

For low accurate AD-converter, 2051 is simple and less expensive. When using 2051 as an AD converter using ladder circuit method, the number of voltage step should be minimize. Fluctuation and difference voltage step will limit the number of voltage step, or make the many voltage steps meaningless. The application using 2051 analog comparator is better to measure the time interval when the voltage source from one starting voltage to one particular reference voltage. In this case several voltage step only used.
