General Mods.

To see all details save the pictures and use an Imageviewer.

All general Mods can be applied to any Mobo which doesn´t have these features.



Multi Mod

Works with every unlocked Athlon XP on every Mobo without multipler control.
Please note the pins labeled as FIDs on this picture are the BP_FIDs. You can´t control the Multiplier on "mobile" Athlon XP´s by using BP_FID´s. The Multipler is controlled there in a different way. Either by the FID´s, that are not identical to the BP_FID´s, or via software like CPUMSR or CrystalCPUID. You can also change the max. (default) Multiplier of an "mobile " Athlon XP by modifying the L6 Bridges. See more about it in the L5 'Mobile' mod for AMD CPUs guide.





Dual BIOS Mod

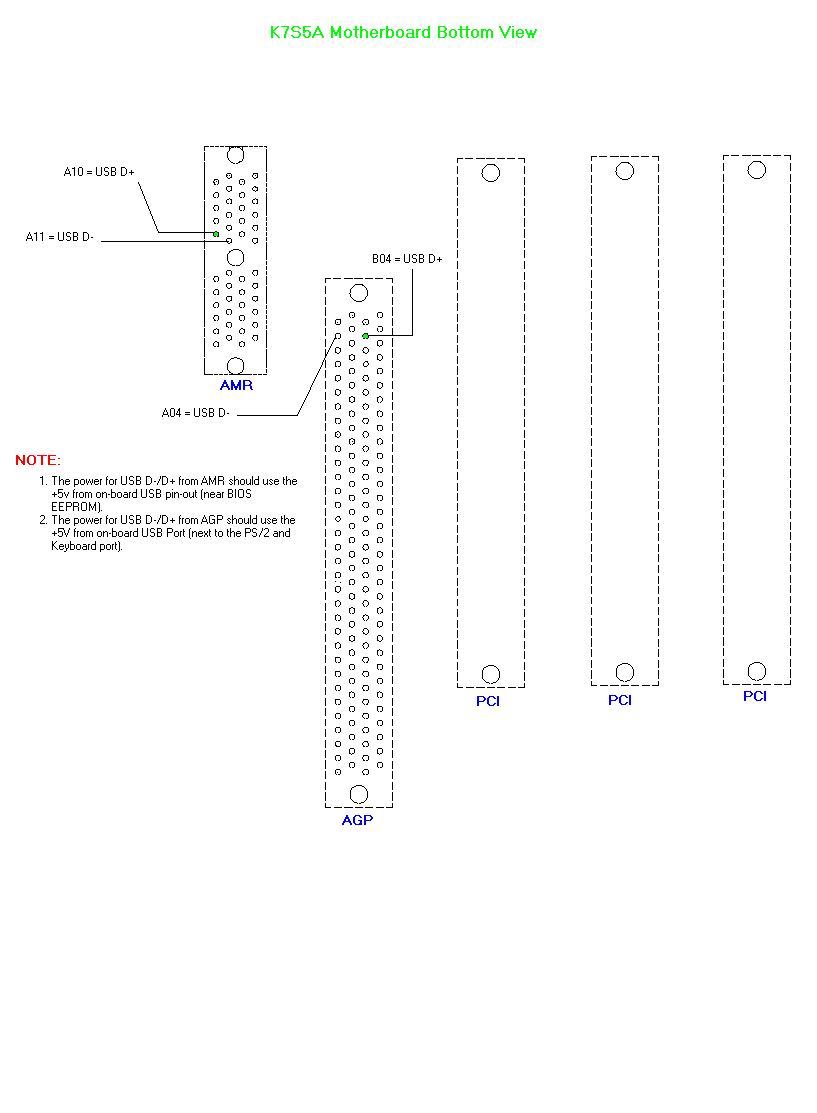

5th & 6th USB slot

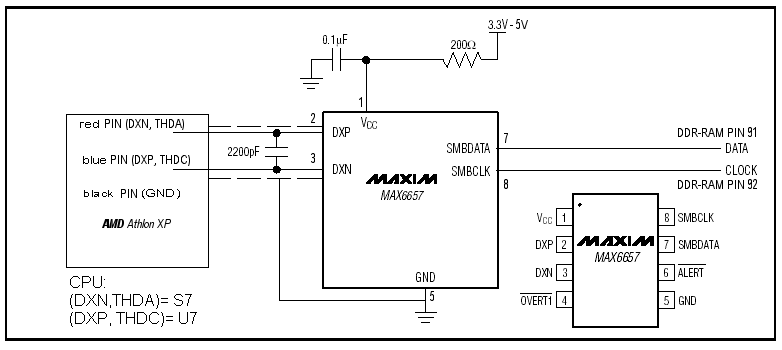

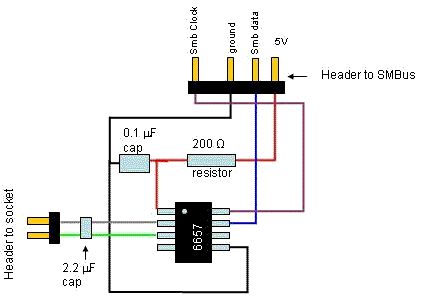

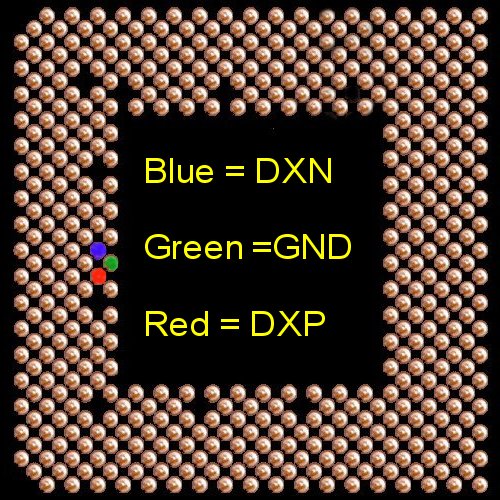

How to get advantage of the internal diode in an Athlon XP





Athlon XP to MP

Simply paint the 4th L5 bridge and your XP becomes an MP.

With this mod your  XP won´t be displayed as an MP but you will be able then to use the CPU in a dual CPU Mobo.













K7S5A Mods.

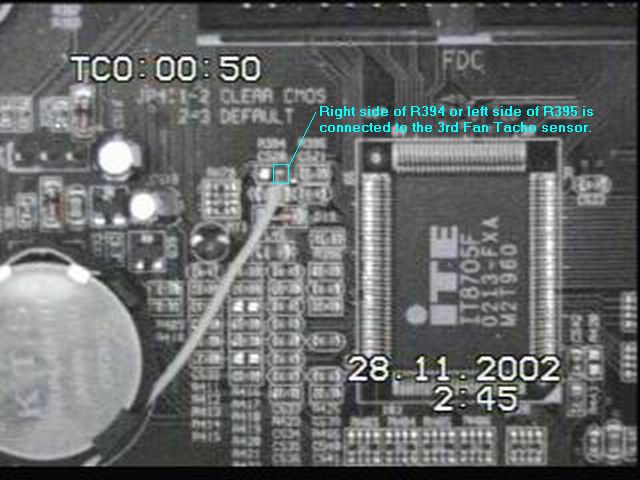

3th Fan Tacho Sensor





Voltage mod for DDRAM & AGP bus





Lost Cmos/Mem detection/coldboot issue fix(R182) can be found here.
