Jim Grahams 1973 "HyStrung" Vega
|
HyStrung's Bio

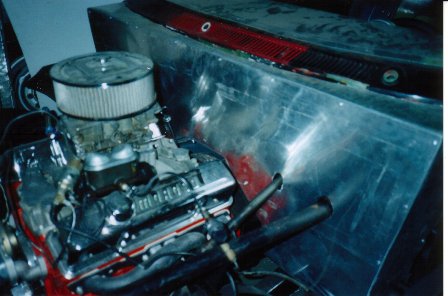

- GM 30 over 355 cubic inch engine
- Balanced
- Moroso 8 Quart Pan, High Volume Pump
- Forged Steal Crank
- Fluidampner
- GM Pink Rods
- Forged Pistons 10..5 to 1
- Rollerized Crane Valve Train
- Comp 630 lift Solid Roller Camshaft
- Crane Alum Rockers and stud girdle
- GM Bowtie 202 angle plug Heads
- 202/160 stainless valves
- Edelbrock Victor Alum intake "flowed" with 2 inch
spacer
- 830 Holley double pumper
- Holley fuel pump and regulator
- Jazz Fuel Cell
- Russell Braided Lines
- Autometer Fuel Gauge with Pressure isolator
- Sciroco Rad with Prostock Fans
- Moroso electric water pump
- MSD Billet Distributor.
- Taylor 409 Race wires
- Hooker Super Comp Headers
- 31/2 in collector extentions
- Turbo 400 Transmission with cooler and deep Sump
- Manual Reverse pattern valve body
- Tricked up Thunder Alley Transmission inners
- TCI Trans Brake
- 5500 B&M Stahl Torque Converter
- B&M flexplate
- B&M Pro Ratchet Shifter
- Shiftnoid electric shifter
- Holley Anihalater Electronics, Box and Coil
- Deadenbear Delay Box
- Custom Balanced Driveshaft
- Complete Strange Rear End
- Spool, 5:13 Gears, Strange Axels, Strange Girdle
- Narrowed GM 12 Bolt
- Ladder bars
- Alden double adjustable Coil Overs Rear
- 12x15 inch Centerlines rear
- 29.5x13.5 slicks rear
- 4x15 inch Centerlines front
- 4.5x26x15 Skinnies up front
- Lakewood 90/10 Drag Shocks Front
- Comp Engineering Wheelie Bars
- Jazz Racing Seat
- RCI Belts
- Complete Autometer/Autogauge Tach, Gauge assemblies
- Biondo Line Lock
- 12 Point Cage with slideout sidebar
- Aluminum Floors, Firewall and Dash
- Full 2x3 inch frame
- Fiberglass tilt front end with Moroso tunnel hood
- Fiberglass back hatch
- Lexan Glass all around
- Dual Batteries
- Disc/Drum brakes
- Morrison Wheelie Bars
- Biondo proportioning valve
- Weight 2920# without driver
- Dyno's at 450 HP

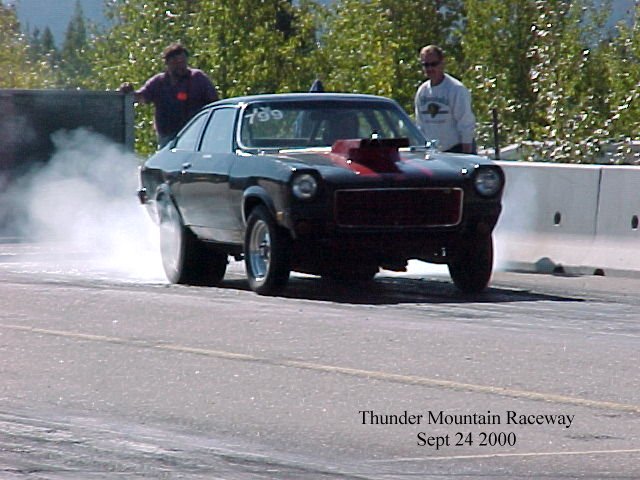

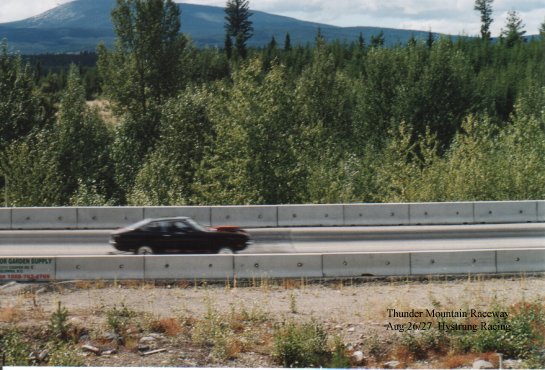

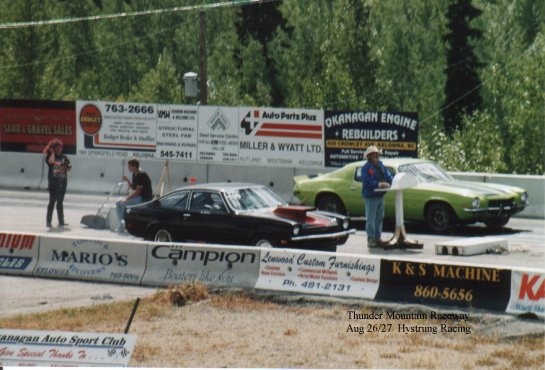

- ET 7.71 Thunder Mountain Raceway 1/8th
- ET 11.19 Mission Raceway 1/4
|
|
The HyStrung Vega is Owned and Driven by Jim Graham
Crew Chief
Crew Brenda , Emily, |
Email HyStrung Racing |
|
|
|
