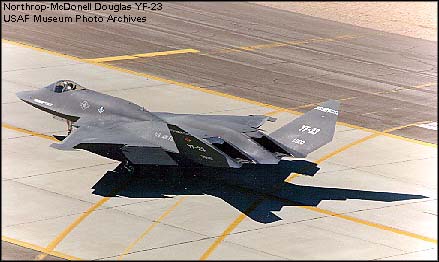

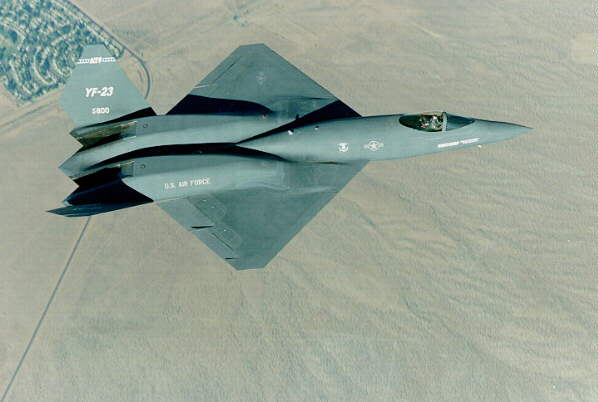

YF-23 Black Widow II
Specifications -
Span - 43 feet, 7 inches
Lenght- 65 feet, 5 inches.
Height - 13 feet, 11 inches.
Wing Area - 87.7 m sq.
Weight - 54,000 lbs. ( Take off )
Empty Weight - 38,580 lbs
Internal Fuel - 2190 lbs.
Engines - Two Pratt and Whitney
              F119-PW-100 of approx.
              35,000lbs thrust with
              after burners  to two
              general electric turbo-
              fans
Crew - One
Maximum speed
(with after burners ) + 2. Mach
Maximum speed-(without AB) 1.6                                    mach.
Cieling - 65.000 feet.
Range - 1200 km
Arnament ( Planned )- Internal 20 mm gun M61 ;  8x AIM- 9 sidewinders ; " Have Dash 2 " A-G missles.



Features -
a.Agile dog fighter.
b.Ultra Stealth
c.Air Superiority.
d. Lost to the YF-22
    raptor.
