Group Policy Editor: A closer look at some useful policy settings

This article applies to primarily to Windows XP Professional and Windows Server 2003 but some registry tweaks can also be used in Windows XP Home Edition

Topics on this page:

[1] Introduction

[2] Internet Explorer settings

  • Internet Options menu restriction
  • Internet Options: individual tabs disabled
  • IE branding, customisation, restrictions (and hijacking)

[3] Windows settings

  • [3.1] System policies
    • Turn off Autoplay (autorun)
    • Registry editor disabled or restrictions
    • Don't run specified Windows applications
    • Remove Task Manager
  • [3.2] Desktop Policies
    • Restore desktop icons with "NoSaveSettings"
    • Remove Recycle Bin icon from desktop
  • [3.3] Start menu and taskbar policies
    • Remove Recent Documents menu from Start menu
    • Remove My Documents from Start menu
    • No Recent Document History
    • Clear history of recently opened documents on exit
    • Turn off user tracking
  • [3.4] Windows Messenger
  • [3.5] Windows Explorer policies
    • Hide these specified drives in My Computer
    • Prevent access to drives from My computer
    • Remove Security tab
  • [3.6] Limit reservable bandwidth

[4] Security Policies







1. Introduction

The Group Policy Editor in Windows XP Professional has many extra settings compared to Windows 2000. It would not be particularly useful or practical to cover all the several hundred settings but some are related to problems frequently encountered by users and not many people are aware that they can be set here. Therefore it would be convenient to list those here.

Unless indicated, the corresponding registry tweaks are all operational in Windows XP Home edition if made directly via regedit. The exceptions include some network and domain related settings. It is not true that Windows XP Home edition does not support policies: it is just that there is no Group Policy Editor to set them.

The way the settings are grouped in the Group Policy editor can be rather hidden and unintuitive to locate. Often there is more than one possible setting, typically one per user and one per computer. The latter overrides the former setting if both are set.

There are three basic settings in the Group Policy Editor: Enabled, Disabled and Not Configured (with a few exceptions). By default the policy registry keys are absent and only created when a policy is set to Enabled. When the policy is reset to Disabled or Not Configured, usually the registry key is deleted. Sometimes, manually modifying the registry key value to 0 has the same effect as disabling it. I've not tested all the settings (>600) but this seems to be a general pattern of behaviour.

I will not cover any policy settings for netmeeting, Windows Media Player, Internet Explorer Administration Kit (IEAK), Office XP/2003 nor include screen shots for all the settings after the initial examples. Also, the templates are customisable: they can be modified, deleted or added. The list below are from the default Internet Restrictions and System templates only.





2. Internet Explorer settings

There is a huge number of policies and some of the useful ones have been covered in my articles on IE hijacking. A few configurations can be set directly in IE itself. You can use the Group Policy Editor to configure them and remove hijacking restrictions.

Under Computer Configuration\Administrative Templates\Internet Explorer there are settings for security restrictions.

Under User Configuration\Administrative Templates\Internet Explorer Maintenance there are settings for IE customisation, internet connection and security zones.

Internet Options menu restrictions

Internet Options: individual tabs disabled, including:

General Tab
Security Tab
Content Tab
Connections Tab
Programs Tab
Privacy Tab
Advanced Tab

IE branding, customisation, restrictions (and hijacking):

home page

blank page

search page

disable search customisation

window title

external branding restriction

Lock IE homepage

Disable IE R click context menu

toolbar

Disable toolbar and toolbar button customisation



3. Windows settings

3.1. System policies

A large number of system settings are found under both user and computer configurations and some are further subdivided into groups.

Turn off Autoplay (autorun)

You can normally do this directly in Windows Explorer (R click the CDROM drive icon, properties, autoplay) but sometimes after installing programmes the autoplay has been changed and cannot be reset easily.

There are per user and per machine settings and there is an addition registry setting outside the control of the Group Policy editor. The reason for such complication is beyond my understanding (see MS KB 330135). Whether your ROM is autorun enabled or not depends on the combination of these settings; so make sure you check all of them carefully. You don't need all three settings: just one setting can disable autorun. Why it's called "autorun" in the registry and "autoplay" elsewhere is again incomprehensible and best known to Microsoft.

Per User setting:

User Configuration\Administrative Templates\System:
Turn off Autoplay

User Config: Turn off Autoplay

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

NoDriveTypeAutoRun
REG_DWORD: 91 (145)

The value of 91 hex (145 decimals) means autorun is enabled; 0xb5 (181) means autorun is disabled (equivalent to setting the policy to Enabled). If you set the policy to Disabled or Not Configured, the registry key is deleted altogether.

To complicate matters further, the value of 91 has changed from that in Windows NT and 2000 (MS KB 155217).

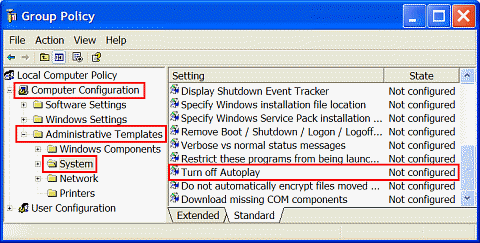

Per Computer setting:

Computer Configuration\Administrative Templates\System:
Turn off Autoplay

Computer Config: Turn off Autoplay

Registry:

HKEY_LOCAL_MACHINE\Software\Microsoft\
Windows\CurrentCersion\Policies\Explorer

NoDriveTypeAutoRun
REG_DWORD: 0xb5 (181)

The value of 0xb5 (181) means autorun is disabled (equivalent to setting the policy to Enabled). Setting the policy to Disabled or Not Configured in the Group Policy Editor actually deletes the registry key altogether.

The addition registry key not configured by Group Policy is (inherited from previous versions of Windows and included here for reference):

HKEY_LOCAL_MACHINE\System\
CurrentControlSet\Services\CDRom
REG_DWORD: 0

The value of 0 means autorun is disabled; 1 means enabled.



Registry Editor disabled or restrictions

These are frequently encountered in IE hijacks and few realise that the Group Policy Editor can easily reset them. Other browsers are not or less susceptible because they don't use ActiveX plug-ins.

Regedit Disabled

Regedit Operation cancelled due to Restrictions

This is in fact a specific example of the "Don't run specified Windows applications" policy below when applied to regedit.exe.



Don't run specified Windows applications

User Configuration\Administrative Templates\System:
Don't run specified Windows applications
*.exe [for the specified programme]

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

DisallowRun
[program]



Remove Task Manager

This policy setting can also be due to software installation or malware.

User Configuration\Administrative Templates\System:
Ctrl+Alt+Del Options
Remove Task Manager

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\System

DisableTaskMgr
REG_DWORD: 1

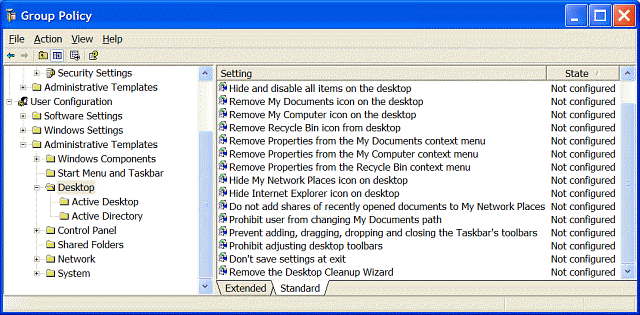

3.2. Desktop policies

Under:
User Configuration\Administrative Templates\Desktop

there are 15 items for customisation or hiding. The most useful ones are listed in more detail below. They are all per user only.



Restore desktop icons with "NoSaveSettings"

User Configuration\Administrative Templates\Desktop:
Don't save settings at exit

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

NoSaveSettings
REG_DWORD: 1



Remove Recycle Bin icon from desktop

This one is a real pain if you have deleted the Recycle Bin icon and don't use the Group Policy Editor to restore it: have a look at the registry key and you'll see what I mean.

User Configuration\Administrative Templates\Desktop:
Remove Recycle Bin icon from desktop

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\NonEnum

{645FF040-5081-101B-9F08-00AA002F954E}
REG_DWORD: 1





3.3. Start menu and Taskbar policies

Under User Configuration\Administrative Templates\Start Menu and Taskbar there are 42 settings some of which would be useful for individual users.



Remove Recent Documents menu from Start menu

User Configuration\Administrative Templates\
Start Menu and Taskbar
:
Remove Recent Documents menu from Start Menu

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

NoRecentDocsMenu
REG_DWORD: 1



Remove My Documents from Start menu

Normally you can configure this directly in Start menu properties.

User Configuration\Administrative Templates\
Start Menu and Taskbar
:
Remove My Documents from Start Menu

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

NoSMMyDocs
REG_DWORD: 1



No Recent Document History

This setting prevents the recent document history including the list in Explorer and IE Address Bar and Start, Run Address bar from being saved. If you enable this setting, My Recent Documents would disappear from the Start menu and the option to list and clear the same would also disappear in Start menu properties.

Per User setting only:

User Configuration\Administrative Templates\
Start Menu and Taskbar
:
Do not keep history of recently opened documents

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

NoRecentDocsHistory
REG_DWORD: 1



Clear history of recently opened documents on exit

This setting allows saving the recently opened document but clears the list on shutdown.

Per User setting only:

User Configuration\Administrative Templates\
Start Menu and Taskbar
:
Clear history of recently opened documents on exit

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

ClearRecentDocsOnExit
REG_DWORD: 1



Turn off user tracking

This settings stops all your recently opened documents from being saved in a list, including Office and any other applications that track usage.

Per User setting only:

User Configuration\Administrative Templates\
Start Menu and Taskbar
:
Turn off user tracking

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

NoInstrumentation
REG_DWORD: 1





3.4. Windows Messenger

Note that these settings do not actually uninstall Messenger and is not related to Messenger service.

Per User setting:

User Configuration\Administrative Templates\
Windows Component\Windows Messenger
:
Do not allow Windows Messenger to be run
Do not automatically start Windows Messenger initially

Registry:

HKEY_CURRENT_USER\Software\Policies\
Microsoft\Messenger\Client\

PreventRun
PreventAutoRun
REG_DWORD: 1

Per Computer setting:

Computer Configuration\Administrative Templates\
Windows Component\Windows Messenger
:
Do not allow Windows Messenger to be run
Do not automatically start Windows Messenger initially

Registry:

HKEY_LOCAL_MACHINE\Software\Policies\
Microsoft\Messenger\Client\

PreventRun
PreventAutoRun
REG_DWORD: 1



3.5. Windows Explorer policies

There are 27 settings in User Configuration only.

Hide these specified drives in My Computer

User Configuration\Administrative Templates\
Windows Component\Windows Explorer
:
Hide these specified drives in My Computer

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

NoDrives
REG_DWORD: 0x03ffffff (67108863)

This obscure value means the policy is Enabled.



Prevent access to drives from My computer

User Configuration\Administrative Templates\
Windows Component\Windows Explorer
:
Prevent access to drives from My Computer

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

NoViewOnDrive
REG_DWORD: 0x03ffffff (67108863)

This obscure value means the policy is Enabled.



Remove Security tab from folder properties

For XP Professional only (with Simple File Sharing disabled); this tweak has no effect in Windows XP Home edition (in which Simple File Sharing cannot be disabled and the Security tab is hidden except in Safe Mode).

User Configuration\Administrative Templates\
Windows Component\Windows Explorer
:
Remove SecurityTab

Registry:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Policies\Explorer

NoSecurityTab
REG_DWORD: 1





3.6. Limit reservable bandwidth

Note that this setting does not limit your internet connection speed and changing it does not increase it (read KB 316666). It is one of the commonest myths widely circulated on the internet. Use your common sense and intellect and do not join in the bandwagon.

Computer Configuration\Administrative Templates\
Network\QoS Packet Scheduler
:
Limit reservable bandwidth

Registry:

HKEY_LOCAL_MACHINE\Software\Policies\
Microsoft\Windows\Psched\
NonBestEffortLimit
DWORD: (20)

Set Enabled to take effect and any value less than 20 to reduce the bandwidth reservation for the system set by the Packet Scheduler from a default value of 20%.



4. Security Policies

Under:

Computer Configuration\Windows Settings\
Securities Settings\Security Options

you'll find many settings all related to security. All the "Securities Settings" nodes can also be accessed via the Security Policy mmc snap-in (secpol.msc). A few settings are particularly useful even for the home user using Windows XP Professional. This snap-in is not available in Windows XP Home Edition.

Accounts: Limit local account use of blank password to console logon only

The default is set to enabled.



Accounts: rename administrator account (default: Administrator)

This allows you to rename the Administrator account for increased security.



Accounts: rename guest account

This allows you to rename the Administrator account for increased security.



Interactive logon: Prompt users to change password before expiration

The default is set to 14 days. This has no effect if the Password never expires setting is selected under the user account concerned in Local Users and Groups (lusrmgr.msc).



Recovery console: Allow automatic administrative logon

Registry:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Setup\RecoveryConsole
SecurityLevel
REG_DWORD: 1



Recovery console: Allow floppy copy and access to all drives and all folders

Registry:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Setup\RecoveryConsole
SetCommand
REG_DWORD: 1



Shutdown: Clear virtual memory pagefile

Registry:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management
ClearPageFileAtShutdown
REG_DWORD: 1
