Before planning the construction of the cabinet you should have already defined which monitor and computer box to use, and use its measures as a starting point to the dimensions of the cabinet.
In my case the front wide measures was
defined by the dimensions of the X-arcade
control table (54.5 cm) as the
rest of the dimensions depends like I said
of the monitor and computer that you use.

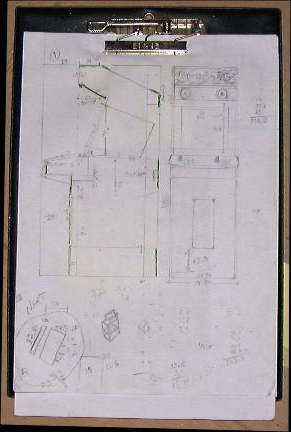

The total height of the cabinet is 1.76 meters, check the photo below to see the
type of the cabinet design, and for plans
click on the right photo.

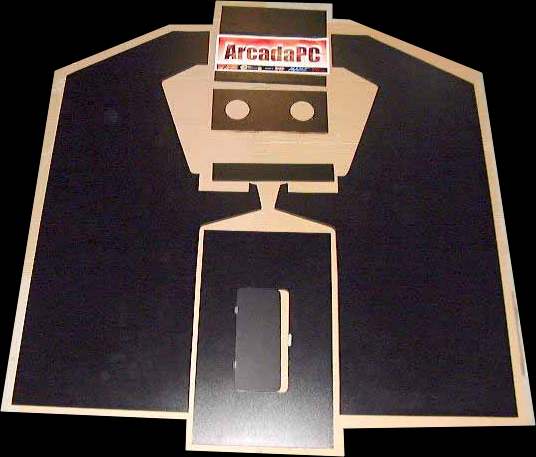

After all well planed on the paper I started
the cut of the main parts, I used a wood plate, black in both sides with the size of
255x210x1,6 cm, more than enough to this cabinet. |
