| Specifications of Volga GAZ-21 |
| Engine 4Cylinder four-stroke engine; made of aluminium with wet steel-splash-run sockets; water-cooled ; in the head hanging valves , made of lateral camshaft driven ti spur gear steered ; 1 simple register carburetor; fivefold stored crankshaft. |
| Displacement 2445 ccm |
| Drilling x Heave 92 x 92 |
| HP rpm (according to compression) 70 (6,6:1), 75 (7,15:1), 80 (7,5:1) with 4000 |
| Transmission hydraulically operated single-plate dry clutch; tree-speed gearbox ( 2nd and 3rd way synchronized) or 3-joint automatic; gear or select lever in the steering wheel ; impulse on back wheels. |

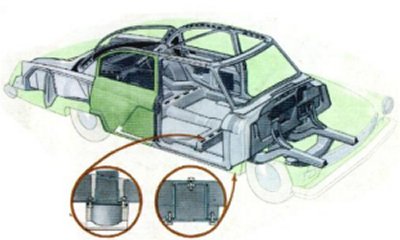

| Car body self-supporting all-steel body with auxiliary frame. |
| Front axle independent suspension in across steering wheels, helical springs lever shock absorbers (from 1963 telescope shock absorbers), across stabilizer. |
| Rear axle rigid axle with half-elleptic leaf springs, lever shock absorber (from 1963 telescope shock absorbers). |
| Brakes encircle the hydraulic brake system with duplexdrumbrakes in front and simplexdrumbrake behind. |
| Weight: 1360 kg |
| Length x Width x Height 4830 x 1800 x 1620 mms |
| Maximum speed: 130 km/h |
| Time of construction: 1956-1971 |
|
 |
 |
 |
