Electrolytic Capacitors                                               TO INDEX
click on the pictures to view the enlarge version

To order just send me an email. I will get back to you as soon as possible. All price quoted are in Singapore Dollar. Please contact me for pricing of  larger quantity.

Sanyo Os-son SA series
ROE
Siemens
Nichicon
4 - pin configuration of ROE and Siemens capacitor



Sanyo Os-son



SA / 470uF / 16V (Data sheet)

Size (DxL): 12.5 x 22 mm               Lead spacing: 5 mm

Price: $5.50 per piece, buy 10 pieces and get 1 extra free. Please contact me for larger quantity.



Farnell price: $10.14 per piece. Farnell order code: 661144.



Application: Very good in power supply of digital circuit. Can be further improve by paralleling with SMD ceramics cap.

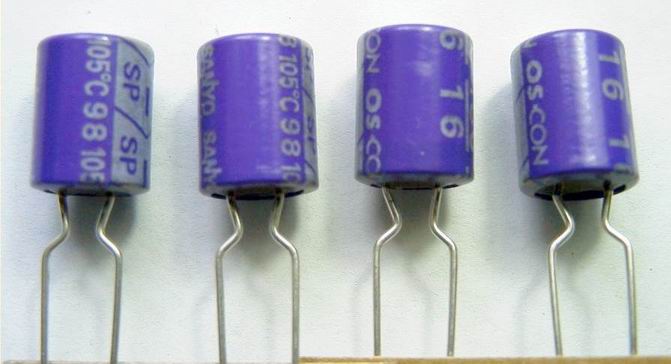

SP / 180uF / 16V  (Data sheet) -  for audio, OFC leads

Size (DxL): 8 x 10.5 mm               Lead spacing: 3.5 mm

Price: $5.00 per piece, buy 10 pieces and get 1 extra free.
Please contact me for larger quantity.



Application:

The SP Series are perfect for designing around MPUs for computer equipment, audio etc. Very good in power supply of digital circuit. Can be further improve by paralleling with SMD ceramics cap.




back to the top



ROE (Data sheet)          the GOLDEN caps from Germany. All are rated for -40 +105 oC.



EB / 1000uF / 25V

Size (DxL): 12 x 30 mm

Price: $1.00 per piece

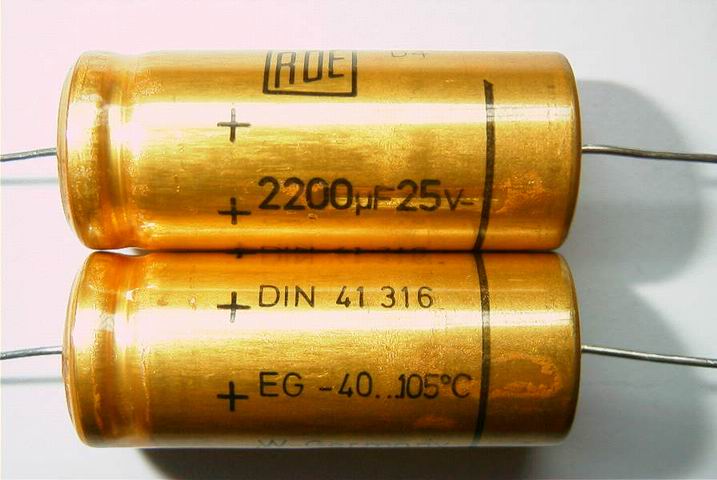

EG / 2200uF / 25V

Size (DxL): 16 x 39 mm

Price: $1.80 per piece, buy 10 pieces and get 1 extra free.







ECGD / 1000uF / 40V

Size (DxL): 21 x 40 mm

Price: $2.00 per piece, buy 10 pieces and get 1 extra free.



Note: 4 -pin connection







EG / 1000uF / 40V

Size (DxL): 16 x 39 mm

Price: $1.80 per piece



Note: lead length is about 3 cm





ERG / 1000uF / 40V

Size (DxL): 16 x 39 mm

Price: $1.80 per piece, buy 10 pieces and get 1 extra free.





back to the top



Siemens - Great industrial grade capacitor.



B41010 / 1000uF / 63V

Size (DxL): 21 x 40.5 mm

Price: $0.80 per piece.



Note:

Lead with solder marking

4 -pin connection







B41588 / 2200uF / 40V

Size (DxL): 25 x 40.5 mm

Price: $2.3 per piece, buy 10 pieces and get 1 extra free



Note: 4 -pin connection

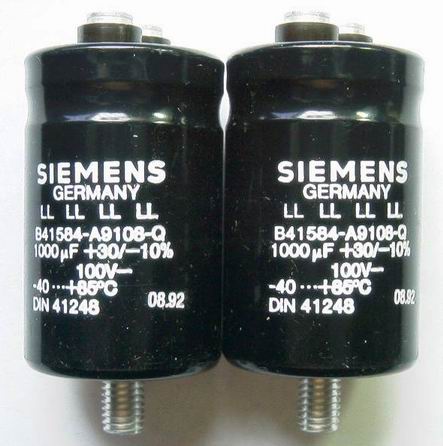

B41564 / 1000uF / 100V

Size (DxL): 35 x 56 mm  - excluding the screw terminals and the mounting stud.

Screw termination, stud mounting.

Price: $5 per piece, limited quantity.



I acquired this capacitors with the intention to construct the Pass Labs Aleph P or L single ended mosfet preamp. The service manual/circuit of these two pre-amps can be obtained from www.passdiy.com.



I am thinking of drill a few hole on a piece of arytic or metal plate, secure this capacitors with nuts through the holes. The rest of the circuit can then be hard-wire ( point to point soldering) around the capacitors. No circuit board is required, very simple as well.




B41554 / 1000uF / 100V - Sikorel - higher range of Siemens capacitors

Size (DxL): 35 x 56 mm   - excluding the screw terminals

Screw termination.

Price: $8 per piece, limited quantity.



Again these caps are great for the Aleph Pre-amp. The quality of Sikorel is better than the B41564. However, I would need mounting hardware to implement the hardwire construction.









Frako GPF / 1000uF / 100V

Size (DxL): 25 x 40.5 mm

Axial

Price: $3 per piece, limited quantity.



Again these caps are great for the Aleph Pre-amp. These are axial caps are are mounted horizontally, thus the profile of the preamp can be slimmer.




back to the top



Nichicon

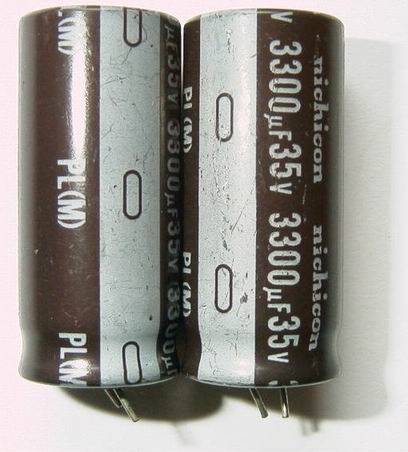

PL / 3300uF / 35V  - low ESR, for switched power supply.

Size (DxL): 18 x 40.5

Price: $1.2 per piece.

 very few pieces



Farnell price: $5

Note: short leads

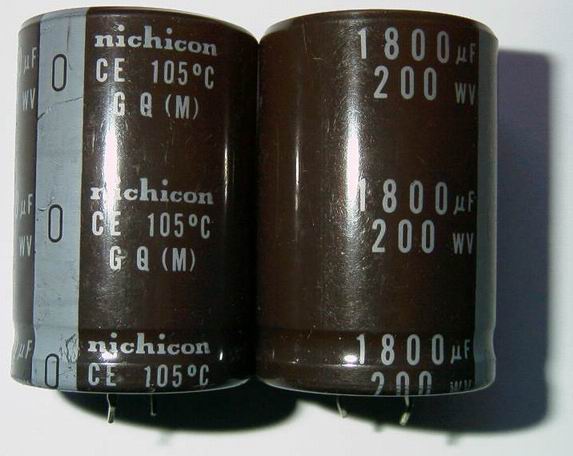

GQ / 1800uF / 200V

Size (DxL): 35 x 51.5

Price: $4 per piece.

Very few pieces.



I was thinking using these caps in the power supply aleph pre-amp, after the rectifier and before the voltage regulator,



back to the top



4 - pin configuration of Siemens and ROE capacitors

For 4 pin configuration of some of the ROE and Siemens Capacitors, the connection is as such,

The centre is hot.
The whole casing and the outer 3 pins are the netural.
