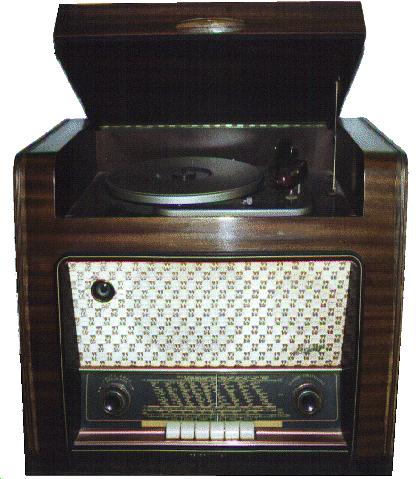

Telefunken Adagio Festival
- Produced: Germany in 1953.
- Obtained: bought at a flea market for 250FF (~$50) in
1992.
- Features:
- 2 speakers: 1 bass, 1 tweeter.
- phono player on top.
- rotating ferrite antenna built-in.
- independent AM and FM tuning.
- tone control (treble).
- Bands:
- FM 87.5 to 100 Mhz
- SW 5 to 18 Mhz (16 to 49 m)
- MW 530 to 1650 Khz (180 to 550 m)
- LW 150 to 300 Khz (1000 to 2000 m)
- Condition:
- Works but low sensitivity on FM whith a lot of
hum.
- Cabinet needs some refurbishing.
- Tubes:
- ECC85/6AQ8 (FM osc+mix)
- ECH81/6AJ8 (AM osc+mix/ FM 1st IF)
- EF93/6BA6 (AM 1st IF/FM 2nd IF)
- EABC80/6AK8 (AM/FM det+AF)
- EL84/6BQ5 (output)
- EZ80/6V4 (rectifier)
- EM34/6CD7 (magic eye)
Last updated: 96-11-15
Nicolas Ducor
