Setback Pics

(12/07/02)

*click pics for full size*

Custom registration decals added.

Kinetic drop bracket (right side)

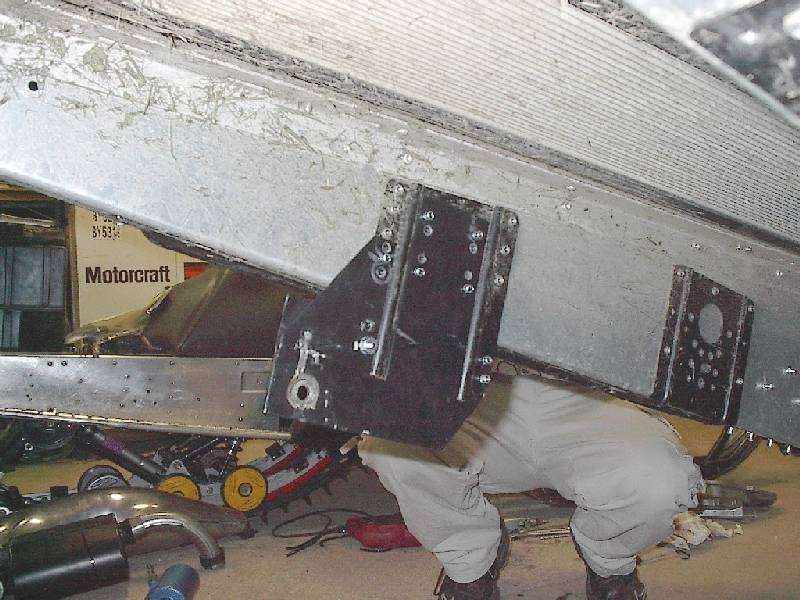

Drop bracket (left side [inside tunnel])

Front Kinetic reinforcement plate (cut to fit, also 2 holes drilled for front susp mounts)

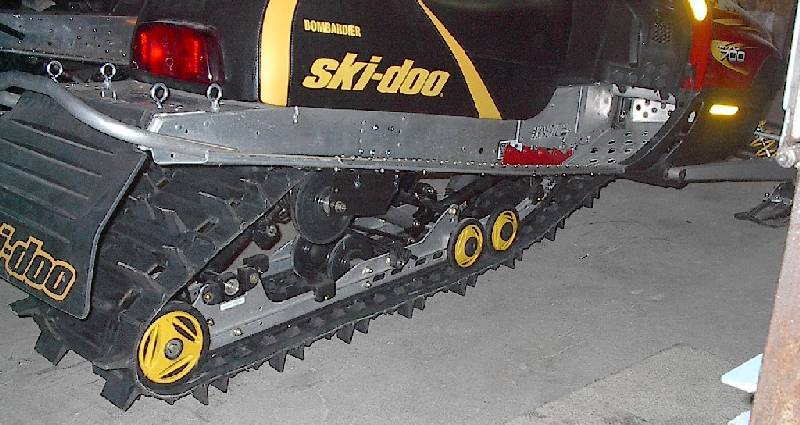

Setback complete (rightside/back)

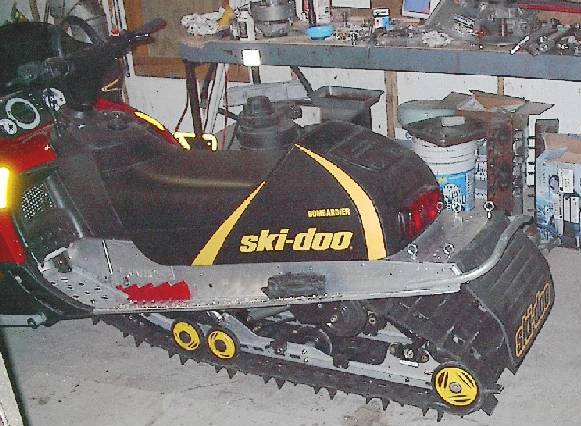

Setback complete (leftside)

Approach angle w/ setback.  (144x2 w/ Kinetic setback)

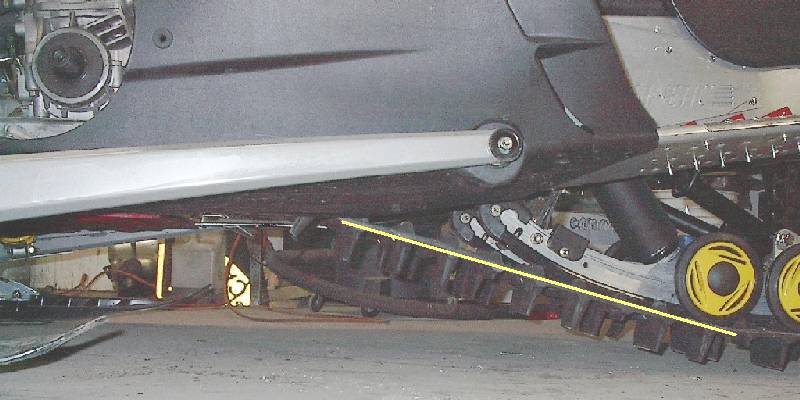

Another approach shot.

Comparison [SummitX also has D&R] (not very good comparo, but you get the point)

Another comparison (pics are close to same distance, so little better comparison)
