The Pinewood Derby electronics consists of a "which came first" circuit and an optional timer. An IR transmitter and receiver at the finish line detects the car crossing the line. There is no schematic for the receiver because I used a unit from Radio Shack, Part Number 276-137. You will drill a 1/4 inch hole in the track and mount the receiver under the track. A frame will be needed to hold the IR transmitter and the lamps which indicate which car was first. Most tracks have three slots but I have only seen two used. The "which came first" schematic includes the power supply, but the timer works from 5VDC and any good supply will work.

Click on the file description below to view the schematics: After viewing, you can get a hardcopy by clicking on the printer icon at the top of the window, or you can download the .GIF file by: clicking on FILE then SAVE AS. Save it in a folder on your hard drive.

"Which came first circuit

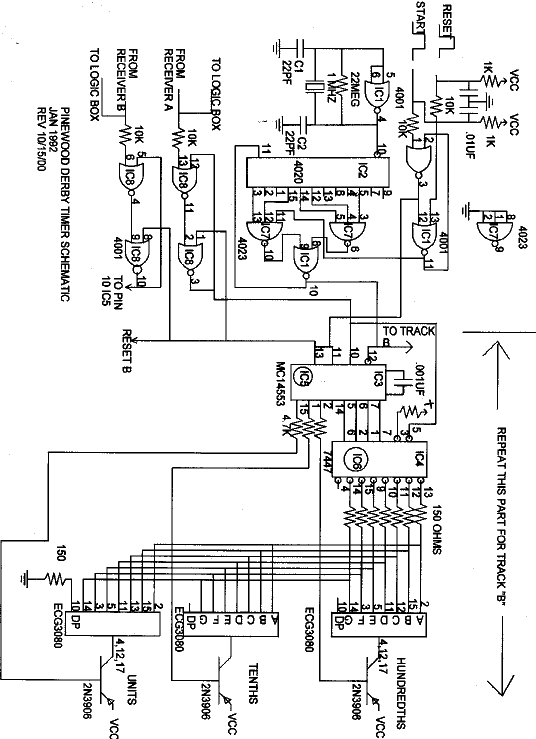

Timer schematic

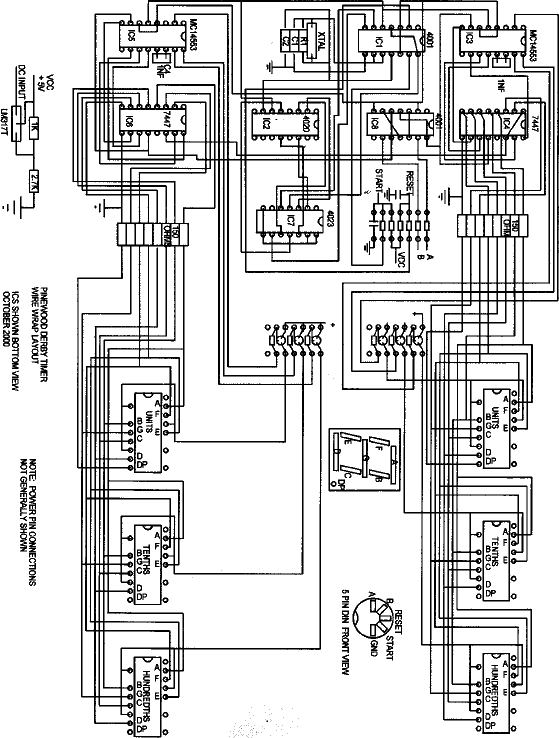

Wire wrap layout for timer

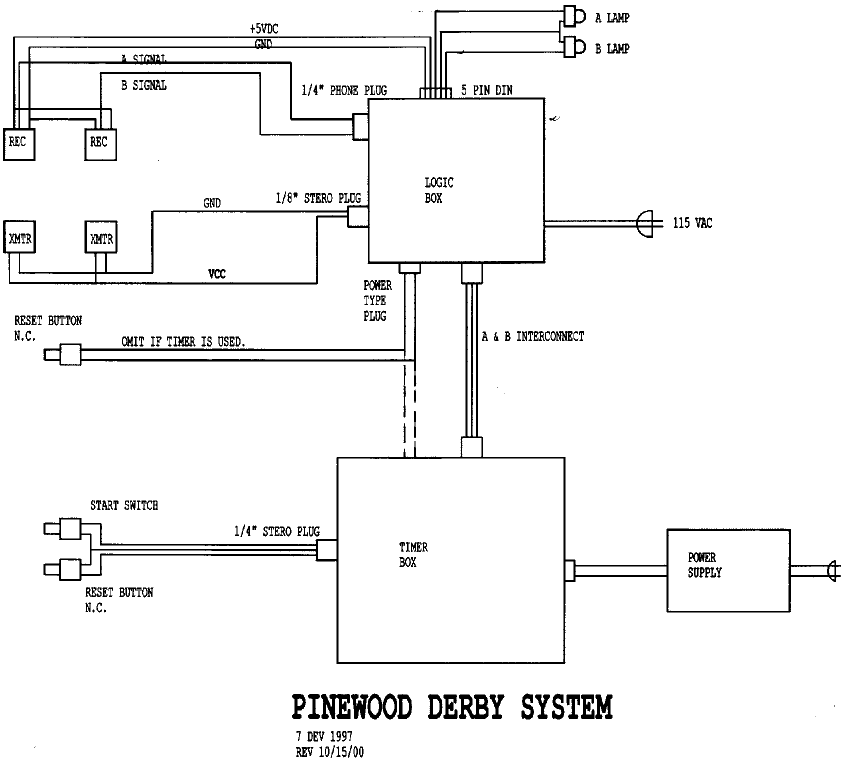

Pinewood Derby system layout (interconnects)
