FORMANTA EMS-01

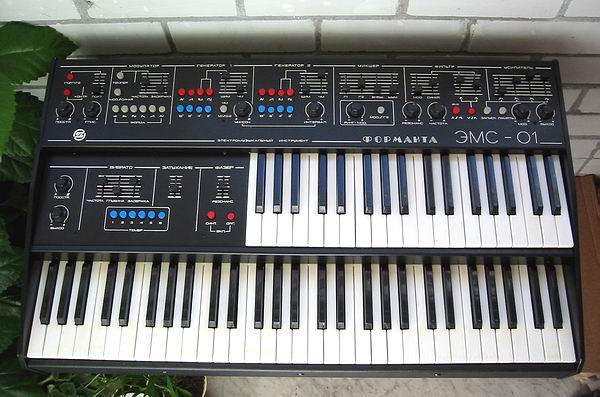

FORMANTA EMS-01 it is a combo organ/strings/piano + 2osc mono synthesizer. Was made in same Polivoks (Formanta) factory at Kachkanar city. Feature: 2-manual keyboards, poly strings/organ/piano with int phaser, chorus, freq vibrato, 2-osc mono synthesizer with powerful synthesis - FM mod, PWM, ring mod, osc sync, poly/mono glide, temper, LFO sync, filter env with auto trigger, amp ADSR + mod and much more...Looks like the dual manual Prophet-10, Oberheim 8-voice, PPG Wave and other.

SYNTHESIZER HAS:

- 3 OCT KEYBOARD
- MODULATOR, FREQ MODULATOR, WIDTH PULSE MOD, FILTER, AMPLITUDE MODULATOR (AMPLIFIER)
- OSC1, OSC2 - WIDTH-RANGE OSCILLATORS WITH 4 WAVEFORMS EACH
- MIXER, NOISE GENERATOR, EXTERNAL INPUT, RING MODULATOR
- FILTER FOR DYNAMIC AND STATIC CHANGES OF SUM SPECTRUM SIGNAL
- AMPLIFIER WITH MOD AND ADSR

ORGAN HAS:

- 5 OCT KEYS
- 6 WAVESHAPE REGISTERS
- FREQ VIBRATO WITH - RATE, DEPTH AND DELAY
- STEREO PHAZER (FOR BOTH ORGAN AND SYNTH) WITH REZ LEVEL
- SUSTAIN LEVEL

CONNECTIONS: PHONES, MONO OUT, STEREO L/R, PEDAL IN, OSC'S TUNING, SYNC CV CONTR IN/OUT, EXT INPUT.

Sound phrases - sample1  sample2  sample3

Panel translation - click here

Manual - page1  page2  page3  page4  page5  page6
