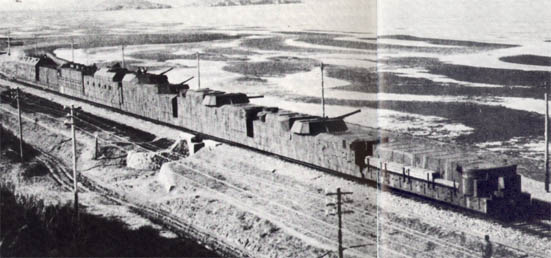

Type94 Armoured Train

Type94 Armoured Train
The Japanese Army used this in Manchuria Railway.
Eight waggons are connected.
Special Equipment : Sand Dispersal System, The Gauge Width Change System

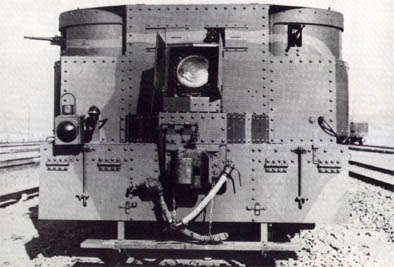

Waggon-1 Reconnaissance Waggon
The Manchuria Railway 50t coal waggon "Tai" modified.
Armament : Type92 13mm Heavy Machine Gun X 2
Equipment : Brake, Heating System, Hammocks, Trash Box
Special Equipment : 300mm front light, Railroad repair parts (rails, cross-ties, etc)
Waggon-2 Canone Waggon Ko
The Manchuria Railway 60t waggon "Chii" modified.
Armament :
Type14 100mm Anti-Aircraft Canone (This could be shot only horizontally.)
Type92 Heavy Machine Gun X 2
Equipment : Brake, Heating System, Hammocks, Trash Box
Waggon-3 Canone Waggon otsu
Same as the waggon-2.
Special Equipment : Lavatory, Water Tank
Waggon-4 Canone Waggon Hei
The Manchuria Railway 60t waggon "Chii" modified.
Armament : Type88 70mm Anti-Aircraft Canone (Range : 14,000m) X 2
Equipment : Brake, Heating System, Hammocks, Trash Box
Waggon-5 Command Waggon
The Manchuria Railway 60t coal waggon "Tasa" modified.
Armament :
Type92 13mm Heavy Machine Gun X 2
Observation Equipments
High Altitude Measuring Instrument, Periscope, Measuring Mirror, Signal Poles,
Equipment : Brake, Heating System, Hammocks, Trash Box
Special Equipment : Long Range Communication Radio Reciver, Short Range Portable Telegraph, 300mm front light X 2, Telephone for the command
Locomotive
The Manchuria Railway type "Mikado" locomotive modified.
Speed : 65Km/h
Equipment : Brake, Heating System, Hammocks, Trash Box
Waggon-6 Tender
This can carry the water and coals@which is necessary for the service of 150km.
Armament : Type92 13mm Heavy Machine Gun X 2
Special Equipment : The pump to draw water.
Waggon-7 Power Supply Waggon
The Manchuria Railway 60t coal waggon "Tasa" modified.
There are three rooms in this.
Room 1 : The Generator Room
Room 2 : The Radio Room (Long Range Telegraph equiped)
Room 3 : The Storage Battery Room
Armament : Type92 13mm Heavy Machine Gun X 2
Equipment : Brake, Heating System, Hammocks, Trash Box, Lavatory, Water Tank
Special Equipment : 300mm front light

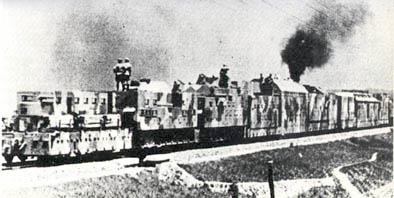

Special Armoured Train

Special Armoured Train
The Japanese Army used this in Manchuria Railway.
12 waggons are connected.

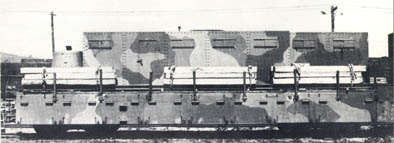

Waggon-1 Protective Waggon
The Manchuria Railway 30t waggon modified.
Armament : Type11 Light Machine Gun X 1
Special Equipment : 600mm front light, Railroad repair parts (cross-ties, etc)
The wagon to defend from the explosion of the mine.

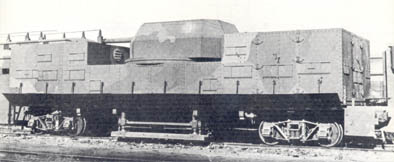

Waggon-2 Heavy Canone Waggon
The Manchuria Railway 50t coal waggon "Tai" modified.
Armament :
Type14 100mm Anti-Aircraft Canone (This could be shot only horizontally.)
Type3 Heavy Machine Gun X 1
Type38 Trooper rifle X 10
Special Equipment : Rifle Sight

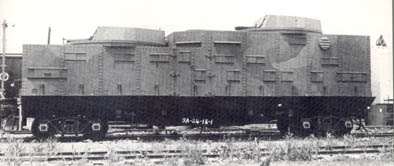

Waggon-3 Light Canone Waggon
The Manchuria Railway 50t coal waggon "Tai" modified.
Armament : Type11 75mm Anti-Aircraft Canone X 2
Type3 Heavy Machine Gun X 4
Type38 Trooper rifle X 10

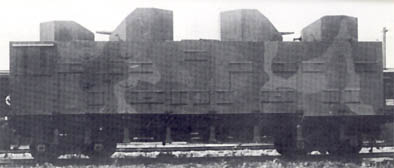

Waggon-4 Infantry Waggon
Armament :
The Manchuria Railway 30t waggon modified.
Type92 13mm Heavy Machine Gun X 2
Type3 Heavy Machine Gun X 4
Anti Aircraft Machine Gun X 2
Type38 Trooper rifle X 2
Special Equipment :
300mm front light, Range-Finder, Measuring Mirror, Sniper Mirror
Waggon-5 Command Waggon
This waggon was built two floors.
First Floor : Radio facility
Second Floor : Artillery observation communication facility
The ceiling opened at anti air battle.
Armament :
Type3 Heavy Machine Gun X 4
Type38 Trooper rifle X 10
Locomotive
The Manchuria Railway type "Sorii" locomotive modified.
Waggon-6 Auxiliary Tender
The Manchuria Railway 50t coal waggon "Tai" modified.
This can carry the water which is necessary for the service of 300km.
And this can carry the coal which was necessary for running of 600Km.
Armament : Type11 Light Machine Gun X 2

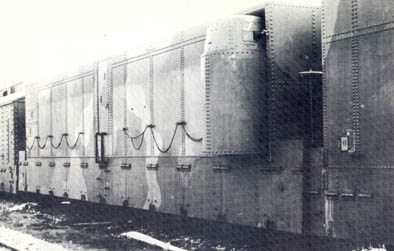

Waggon-7 Materials Waggon
The Manchuria Railway third class bogey "Ha-2" modified.
There are many rooms in this. (The Generator Room, the Radio Room, and the Materials Room)
Armament : Type11 Light Machine Gun X 2
Special Equipment : Radio, Railroad repair parts (rails, cross-ties, etc)
Waggon-8 Infantry Waggon
Same as the waggon-4.
Waggon-9 Light Canone Waggon
Same as the waggon-3.
Waggon-10 Howitzer Waggon
The Manchuria Railway 50t coal waggon "Tai" modified.
Armament :
Type4 150mm Howitzer Modifyed
Type3 Heavy Machine Gun X 4
Type38 Trooper rifle X 10
Waggon-11 Protective Waggon
Same as the waggon-1.
