Mitsubishi J2M3 "Raiden" Model 21 Intercepter
Length : 9.70m
Wing Span: 10.80m
Hight : 3.87m
Wing Area : 20.00 Square Meter
All-Up Weight : 3,440Kg
Empty Weight : 2,940Kg
Main Engine : Mitsubishi Kasei 23 Ko (1,800hp) X 1
Max Speed : 610Km/h
Service Ceiling : 11,000m
Crew : 1
Armament : 20mm Machine Gun X 4
Bomb : 60Kg X 2 or 30Kg X 2
None
Kawanishi J3K1 Type17 Experimental Intercepter
Main Engine : Nakajima Ha43 Model 21 (1,700hp) X 1
Crew : 1
Armament : 20mm Machine Gun X 2, 13mm Machine Gun X 2

This project was cancelled.
Now Printing
Mitsubishi J4M1 "Senden" Pusher Intercepter (Luke)
(Type17 Experimental Intercepter "Senden")
Length : 13.00m
Wing Span: 12.50m
Wing Area : 22.00 Square Meter
All-Up Weight : 4,400Kg
Main Engine : Nakajima Ha43 Model 41 (2,200hp) X 1
Max Speed : 759Km/h
Service Ceiling : 12,000m
Crew : 1
Armament : 30mm Machine Gun X 1, 20mm Machine Gun X 2
Bomb : 30 - 60Kg X 2

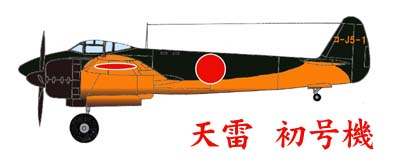

Nakajima J5N1 "Tenrai" Prototype #3 Night Fighter
Length : 11.46m
Wing Span : 14.40m
Hight : 3.55m
Wing Area : 32.00 Square Meter
All-Up Weight : 7,300Kg
Empty Weight : 5,390Kg
Engine : Nakajima Homare21 (1,990hp) X 2
Max Speed : 597Km/h
Cruse Speed : 370Km/h
Max Range : 1,482Km
Service Ceiling : 9,000m
Crew : 2
Armament : 30mm Machine Gun X 2, 20mm Machine Gun X 2,
Bomb : 60Kg X 2

RS MODEL
Kawanishi J6K1 "Jinpu" Intercepter
(Type18 Experimental intercepter "Jinpu")
Length : 10.12m
Wing Span : 12.50m
Wing Area : 26.0 Square Meter
All-Up Weight : 4,373Kg
Main Engine : Nakajima Homare42 (2,200hp) X 1
Max Speed : 685Km/h
Service Ceiling : 13,600m
Crew : 1
Armament : 30mm or 20mm Machine Gun X 2, 13mm Machine Gun X 2
Kyushu J7W1 "Shinden" Intercepter
Length : 9.76m
Wing Span: 11.11m
Hight : 3.92m
Wing Area : 20.5 Square Meter
All-Up Weight : 4,950Kg
Empty Weight : 3,525Kg
Main Engine : Mitsubishi Ha43 Model 42 (1,660hp) X 1
Max Speed : 750Km/h
Cruise Speed : 444Km/h
Service Ceiling : 12,000m
Crew : 1
Armament : 30mm Machine Gun X 4
Bomb : 60Kg X 4 or 30Kg X 4
Mitsubishi J8M1"Shusui" Rocket Intercepter
(Type 19 Experimental Intercepter "Shusui")
Length : 6.05m
Wing Span: 9.50m
Hight : 2.70m
Wing Area : 17.73 Square Meter
All-Up Weight : 3,000Kg
Empty Weight : 1,445Kg
Engine : Mitsubishi KR10 (Tokuro-2) Rocket (1,500Kg) X 1
Max Speed : 800Km/h
Cruise Speed : 347Km/h
Duration of Flight : 2.5Minutes (700Km/h)
Crew : 1
Armament : 30mm Type 5 Machine Gun X 2
None
Mitsubishi J8M2"Shusui" Model 21(?) Rocket Intercepter

Long endurance modify project for Navy.

Length : 6.05m
Wing Span: 9.50m
Hight : 2.70m
Wing Area : 17.73 Square Meter
Engine : Mitsubishi KR10 (Tokuro-2) Rocket (1,500Kg) X 1
Crew : 1
Armament : 30mm Type 5 Machine Gun X 1

Mitsubishi J8M3"Shusui" Model 22 Rocket Intercepter
(Suitable for Army Ki-202 "Shusui-kai")

Long endurance modify project for Army & Navy.

Length : 7.10m
Wing Span: 9.75m
Hight : 2.70m
Wing Area : 18.40 Square Meter
All-Up Weight : 5,100Kg
Engine : Mitsubishi Tokuro-3 Rocket (2,000Kg) X 1
Max Speed : 900Km/h
Duration of Flight : 3.5Minutes
Crew : 1
Armament : 30mm Type 5 Machine Gun X 1

Now Printing
Kugisho MXY-8"Akigusa" Rocket Intercepter practice grider
(Experimental "Shusui" Light Glider)

MXY-8"Akigusa" was created as the J8M1 "Syusui" Rocket Intercepter practice grider.

Length : 6.05m
Wing Span: 9.50m
Hight : 2.70m
Wing Area : 17.73 Square Meter
Crew : 1

None
Kugisho Experimental "Shusui" Heavy Glider

This glider was created as the J8M1 "Syusui" Rocket Intercepter practice grider.
But this was high cost ! This project was cancelled.

Length : 6.05m
Wing Span: 9.50m
Hight : 2.70m
Wing Area : 17.73 Square Meter
Crew : 1

None
Kugisho MXY-9 "Shuka" Rocket Intercepter practice grider

MXY-9 Shuka" is the thing of the plan of carrying the "Hatsukaze-11"
fan jet engine on MXY-8 Akigusa" .
"Hatsukaze-11"fan jet engine was the plan that it was carried on "Ohka
(Baka Bomb) Type 22" as well.

Length : 6.05m
Wing Span: 9.50m
Hight : 2.70m
Wing Area : 17.73 Square Meter
Engine : Kugisho Hatsukaze 11(Tsu-11) Fan Jet Engine (180Kg) X 1
Crew : 1

Kawanishi N1K1-J "Shiden" Model 11 Intercepter (Geroge)
Length : 8.855m
Wing Span : 12.00m
Height : 4.06m
Wing Area : 23.5 Square Meter
All-Up Weight : 3,750Kg
Empty Weight : 2,710Kg
Main Engine : Nakajima Homare 21 (1,990hp) X 1
Max Speed : 583Km/h
Service Ceiling : 12,500m
Range : 1,430Km
Crew : 1
Armament : 20mm Machine Gun X 4
Bomb : 250Kg or 60Kg X 2

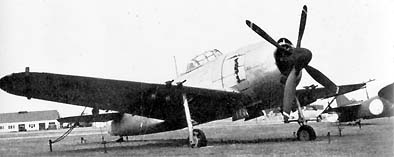

Kawanishi N1K2-J "Shiden" Model 21 "Shiden-Kai" Intercepter (Geroge)
Length : 9.35m
Wing Span : 12.00m
Height : 3.96m
Wing Area : 23.5 Square Meter
All-Up Weight : 4,000Kg
Empty Weight : 2,657Kg
Main Engine : Nakajima Homare 21 (1,990hp) X 1
Max Speed : 596Km/h
Service Ceiling : 10,760m
Range : 1,715Km
Crew : 1
Armament : 20mm Machine Gun X 4
Bomb : 250Kg or 60Kg X 2
None
Nakajima "Kikka" Turbojet Intercepter Modify

Three plans were planned in May 1945.

*Present Plan
Length : 9.25m
Wing Span: 10.00m
Hight : 3.05m
Wing Area : 13.21 Square Meter
All-Up Weight : 4,152Kg
Empty Weight : 3,920Kg
Engine : Ishikawajima Ne20-Kai Turbojet (618Kg) X 2
Max Speed : 700Km/h (Altitude : 6,000m)
Max Range : 609Km (Altitude : 6,000m)
Service Ceiling : 12,100m
Crew : 1
Armament : 30mm Type 5 Machine Gun X 1
RATO : Type4 1-Go Model20 Rocket (800Kg) X 2

*Reconstruction Flaps Plan
Samedata as Present Plan.

*Reconstruction Flaps & Extended Wing Plan
Length : 9.25m
Wing Span: 10.00m
Hight : 3.05m
Wing Area : 14.52 Square Meter
Engine : Ishikawajima Ne20-Kai Turbojet (618Kg) X 2
Max Speed : 685Km/h (Altitude : 6,000m)
Max Range : 594Km (Altitude : 6,000m)
Service Ceiling : 12,300m
Crew : 1
Armament : 30mm Type 5 Machine Gun X 1
RATO : Type4 1-Go Model20 Rocket (800Kg) X 2

Mizuno "Sinryu" Type 2 Rocket Intercepter
Main Engine : Tokuro-1 Type 2 Rocket (150Kg) X 2
Duration of Flight : 30 Sec
Crew : 1
Armament : Rocket X 8
