Naval Suicide Attacker PAGE

2000 / 11 / 1.

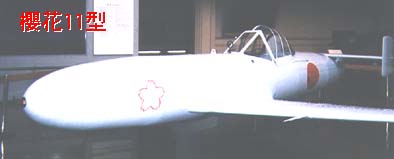

Kuugisho MXY7 "Ohka" Model 11 (Baka) Suicide Attacker
Length : 6.07m
Wing Span: 5.12m
Hight : 1.16m
Wing Area : 6.00 Square Meter
All-Up Weight : 2,140Kg
Empty Weight : 1,440Kg
Main Engine : Type4 1-Go Model20 Rocket (800Kg) X 3
Max Speed : 648Km/h
Range : 37Km
Crew : 1
Warhead : 1,200Kg armour-piercing warhead
"Ohka" is the cold-hearted suicide attacker.
However, "Ohka" is the first parasitic rocket aircraft in Japan.
This aircraft was carried on the battle field by Mitsubishi G4M2E
Type1 Ground Attack Bomver Model 24 Tei (Betty) .

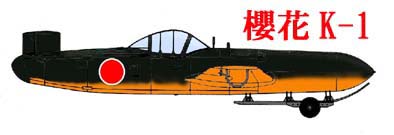

Kuugisho "Ohka" K-1 Suicide Attack Traner
Length : 6.53m
Wing Span: 5.29m
Hight : 1.16m
Wing Area : 6.00 Square Meter
All-Up Weight : 2,300Kg
Empty Weight : 730Kg
Crew : 1

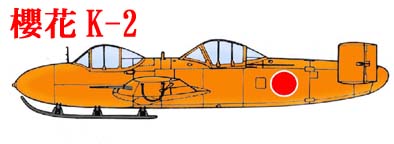

Kuugisho "Ohka" K-2 Suicide Attack Traner
( or "Ohka" K-1 Modify "Wakazakura")
Length : 6.20m
Wing Span: 7.00m
Hight : 1.16m
Wing Area : 8.40 Square Meter
Empty Weight : 644Kg
Crew : 2
This is the Trainer for the "Ohka" Type 43.

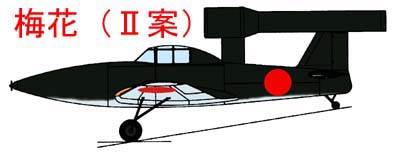

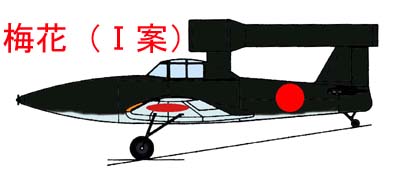

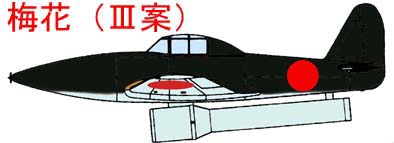

Kawanishi "Baika" Pulsejet Suicide Attacker
Length : 7.0m
Wing Span: 6.6m
Wing Area : 7.6 Square Meter
Empty Weight : 750Kg
Main Engine : Ka-10 Pulsjet (300Kg) X 1
Max Speed : 556Km/h
Cluse Speed : 278Km
Crew : 1
Warhead : 100 - 250 Kg warhead
