Imperial Japanese Naval Special Attacker PAGE

2001 / 3 / 25 Update.

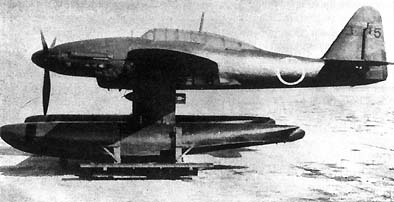

Aichi M6A1 "Seiran" Special Attack Seaplane
Length : 10.64m
Wing Span: 12.26m
Hight : 4.58m
Wing Area : 27.0 Square Meter
All-Up Weight : 4,250Kg
Empty Weight : 3,362Kg
Main Engine : Aichi Atsuta32 (1,400hp) X 2
Max Speed : 474Km/h
Cruse Speed : 296Km/h
Max Range : 2,000Km
Service Ceiling : 9,900m
Crew : 2
Armament : 7.7mm Machine Gun X 1
Bomb : 800Kg Torpedo X 1 or 800Kg X 1 or 250Kg X2

United States Airforce Museum

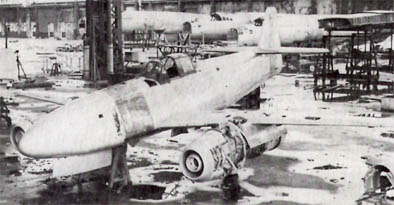

Nakajima "Kikka" Prototype Turbojet Special Attacker
(Type 20 Special Attacker "Kikka")
Length : 9.25m
Wing Span: 10.00m
Hight : 3.05m
Wing Area : 13.21 Square Meter
All-Up Weight : 3,550Kg
Empty Weight : 2,300Kg
Engine : Ishikawajima Ne20 Turbojet (475Kg) X 2
Max Speed : 677Km/h (Altitude : 6,000m)
Max Range : 584Km (Altitude : 6,000m)
Service Ceiling : 10,700m
Crew : 1
Bomb : 500Kg or 250Kg X 1
RATO : Type4 1-Go Model20 Rocket (800Kg) X 2
None
Nakajima "Kikka-kai" Prototype Turbojet Special Attacker

High speed modify project. Launch from 200m catapult was planned, too

Length : 9.25m
Wing Span: 10.00m
Hight : 3.05m
Wing Area : 13.21 Square Meter
All-Up Weight : 4,080Kg
Engine : Ishikawajima Ne20 Turbojet (475Kg) X 2
Max Speed : 687Km/h (Altitude : 6,000m)
Max Range : 584Km (Altitude : 6,000m)
Service Ceiling : 10,700m
Crew : 1
Bomb : 500Kg or 250Kg X 1
RATO : Type4 1-Go Model20 Rocket (800Kg) X 2

None
Nakajima "Kikka" Turbojet Trainer

Length : 9.25m
Wing Span: 10.00m
Hight : 3.05m
Wing Area : 13.21 Square Meter
All-Up Weight : 4,009Kg
Engine : Ishikawajima Ne20-kai Turbojet (618Kg) X 2
Max Speed : 722Km/h (Altitude : 6,000m)
Max Range : 667Km (Altitude : 6,000m)
Crew : 2
RATO : Type4 1-Go Model20 Rocket (800Kg) X 2
