Naval Flying Boat PAGE

2003 / 12 / 24 Update.



FUJIMI MOKEI
Aichi E11A1 Type98 Reconnaissance Flying Boat
Length : 10.71m
Wing Span: 14.49m
Hight : 4.52m
Wing Area : 46.4 Square Meter
All-Up Weight : 3,297Kg
Empty Weight : 1,927Kg
Main Engine : Aichi Type91 Model 22 (620hp) X 1
Max Speed : 217Km/h
Cruse Speed : 130Km/h
Range : 2,065Km
Service Ceiling : 4,425m
Crew : 3
Armament : 7.7mm Machine Gun X 1

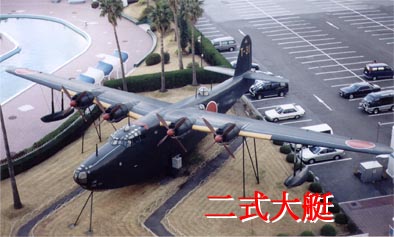

Kawanishi H8K2 Type2 Heavy Flying Boat Model 12 (Emily)
Length : 28.12m
Wing Span : 37.98m
Hight : 9.15m
Wing Area : 160.0 Square Meter
All-Up Weight : 24,500Kg
Empty Weight : 18,380Kg
Main Engine : Mitsubishi Kasei 22 (1,850hp) X 4
Max Speed : 454Km/h
Cruse Speed : 296Km/h
Max Range : 7,153Km
Service Ceiling : 9,120m
Crew : 10
Armament : 20mm Slewing Machine Gun X 5, 7.7mm Slewing Machine Gun X 3
Bomb : 250Kg X 8 or 60Kg X 16
Kawanishi E11K1 "Soku" Experimental Carrier Flying Boat
Length : 37.72m
Wing Span : 48.00m
Hight : 12.578m
Wing Area : 290.0 Square Meter
All-Up Weight : 45,500Kg
Main Engine : Mitsubishi Kasei 22 (1,850hp) X 4
Max Speed : 370Km/h
Max Range : 3,890Km
Crew : 5 + 80
None
Kawanishi K-60 Experimental Heavy Flying Boat
Main Engine : Mitsubishi "Nu-Go" Watar Cooling Twin Engine (5,000hp) X 4
(Steem Turbin Air Cooling fan equip)
Range : 9,260Km
None
Kawanishi K-200 Experimental Heavy Turbojet Flying Boat
Kawanishi planned a large flying boat in W.W.II end. Six Jet-Engines are used for this Flying Boat.
