Kugisho E14Y1 Type Zero Model 11 Small Seaplane (Glen)
Length : 8.533m
Wing Span : 10.98m
Hight : 3.385m
Wing Area : 19.00 Square Meter
All-Up Weight : 1,450Kg
Empty Weight : 1,072Kg
Engine : Hitachi Tenpu 12 (300hp) X 1
Max Speed : 246Km/h
Cluse Speed : 157Km/h
Range : 882Km
Service Ceiling : 5,420m
Crew : 2
Armament : 7.7mm Machine Gun X 1
Bomb : 30Kg X 2

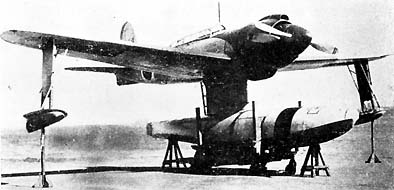

Kawanishi E15K1 "Shiun" Model 11 Reconnaissance Seaplane (Norm)
Length : 11.567m
Wing Span : 14.00m
Hight : 4.95m
Wing Area : 30.00 Square Meter
All-Up Weight : 4,100Kg
Empty Weight : 3,165Kg
Engine : Mitsubishi Kinsei 24 (1,680hp) X 1
Max Speed : 468Km/h
Cluse Speed : 333Km/h
Range : 1,408Km
Service Ceiling : 9,830m
Crew : 2
Armament : 7.7mm Machine Gun X 1
Bomb : 60Kg X 2

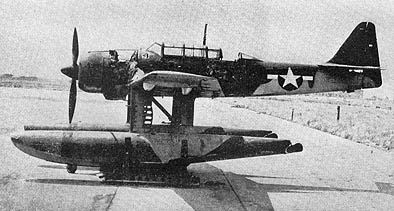

Aichi E16A1 "Zuiun" Model 11 Reconnaissance Seaplene (Paul)
Length : 10.84m
Wing Span : 12.80m
Hight : 4.74m
Wing Area : 28.00 Square Meter
All-Up Weight : 4,000Kg
Engine : Mitsubishi Kinsei 54 (1,300hp) X 1
Max Speed : 448Km/h
Range : 1,052Km
Service Ceiling : 10,280m
Crew : 2
Armament : 20mm Machine Gun X 2, 13mm Machine Gun X 1
Bomb : 250Kg Bomb X 1 or 60Kg Bomb X 2
Kawanishi N1K1 "Kyofu" Model 11 Fighter Seaplane (Rex)
Length : 10.59m
Wing Span : 12.00m
Height : 4.75m
Wing Area : 23.5 Square Meter
All-Up Weight : 3,500Kg
Empty Weight : 2,700Kg
Main Engine : Mitsubishi Kasei 13 (1,460hp) X 1
Max Speed : 448Km/h
Service Ceiling : 10,560m
Range : 1,060Km
Crew : 1
Armament : 20mm Machine Gun X 2, 7.7mm Machine Gun X 2
Bomb : 30Kg X 2
