Naval Ground Bomber PAGE

2001 / 8 / 11 Update.

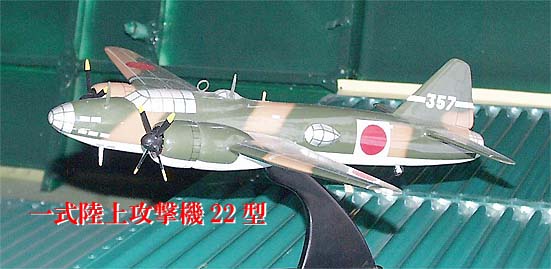

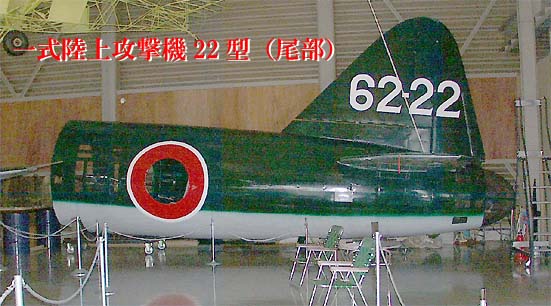

Mitsubishi G4M2 Type1 Grround Bomber Model 22 (Bety)
Length : 19.63m
Wing Span : 24.89m
Height : 4.80m
All-Up Weight : 12,500Kg
Empty Weight : 8,000Kg
Engine : Mitsubishi Kasei-21 (1,850hp) X 2
Max Speed : 437Km/h
Cluse Speed : 315Km/h
Range : 4,800Km
Service Ceiling : 8,950m
Crew : 7
Armament : 7.7mm Machine Gun X 3, 20mm Machine Gun X 2
Bomb : 60Kg X 12 or 500Kg X 2 or 250Kg X 4 or 800Kg X 1
None
Mitsubishi G7M1 "Taizan" Grround Bomber
(Type16 Experimental Ground Bomber "Taizan")
Length : 20.00m
Wing Span : 25.00m
All-Up Weight : 16,000Kg
Engine : Mitsubishi Ha42 Model 31 (2,400hp) X 4
Max Speed : 556Km/h
Range : 2,780Km
Crew : 5
Armament : 20mm Machine Gun X 2, 13mm Machine Gun X 6
Bomb : 800Kg X 1 or 500Kg X 2 or 250Kg X 6 or Torpedo X 1

This project was cancelled.
None
Kawanishi Type17 Experimental Ground Bomber
(Kawanishi k-100)
Length : 15.00m
Wing Span : 21.60m
Wing Area : 64 Square Meter
All-Up Weight : 13,500Kg
Empty Weight : 8,550Kg
Engine : Nakajima Mamoru-Kai (2,300hp) X 4
Max Speed : 606Km/h
Cruse Speed : 370Km/h
Range : 5,556Km
Service Ceiling : 11,200m
Crew : 4
Armament : 20mm Machine Gun X 3, Torpedo X 1

This project was cancelled.

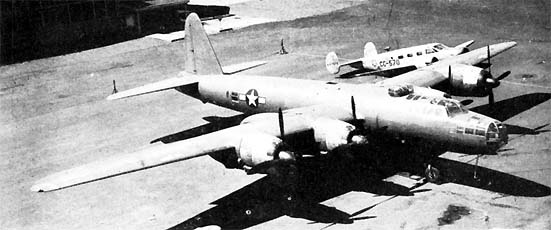

Nakajima G8N1 "Renzan" (Rita) Heavy Bomber
Length : 22.935m
Wing Span : 32.54m
Hight : 7.20m
Wing Area : 112 Square Meter
All-Up Weight : 26,800Kg
Empty Weight : 17,400Kg
Engine : Nakajima Homare24-Ru (1,850hp) X 4
Max Speed : 593Km/h
Cruse Speed : 370Km/h
Max Range : 6,480Km
Service Ceiling : 12,000m
Crew : 7
Armament : 20mm Machine Gun X 6, 13mm Machine Gun X 4
Max Bomb Load : 4,000Kg
