Imperial Japanese Naval Amphibious Vehicle PAGE

2000 / 11 / 12 Update.

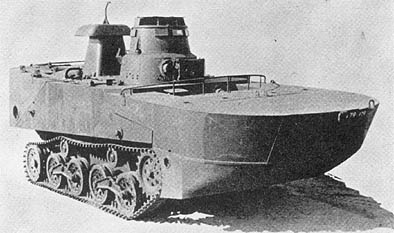

Amphibious Tank Special Type2 "Ka-Mi"
Length : 7.5m (with Float),
Width : 2.8m
Height : 2.3m
Weight : 12.5t
Engine : In-line Six-cylinder Air Cooling Diesel (115hp) X 1
Max Speed :
37Km/h (On the Ground)
9.5Km/h (On the Water)
Crew : 6
Armament : Type1 37mm Canon X 1, Type97 7.7mm Machine Gun X 2
Amphibious Tank Special Type3 "Ka-Chi"
Length : 10.300m (with Float),
Width : 3.000m
Height : 3.824m
Weight : 26.450t (Ground) / 28.750t (On the sea)
Engine : Dominion Model Type100 V12 Air Cooling Diesel (240hp) X 1
Max Speed :
32Km/h (On the Ground)
10.5Km/h (On the Water)
Crew : 7
Armament : Type1 47mm Canon X 1, Type97 7.7mm Machine Gun X 2
Amphibious Vehicle Special Type4 "Ka-Tsu"
Length : 11.000m
Width : 3.300m
Height : 2.800m
Own Weight : 16.060t
Engine : In-line Six-cylinder Air Cooling Diesel (120hp) X 1
Max Speed :
20Km/h (On the Ground)
8Km/h (On the Water)
Crew : 5
Armament : 13mm Machine Gun X 2, 45Cm Torpedo X 2(Option), Motor X 1(Option)
Amphibious Tank Special Type5 "To-Ku"
Length : 10.800m (with Float), / 7.100m (without Float)
Width : 3.000m
Height : 3.380m
Weight : 26.800t (Ground) / 29.100t (On the sea)
Engine : Dominion Model V12 Air Cooling Diesel (240hp) X 1
Max Speed :
32Km/h (On the Ground)
10.5Km/h (On the Water)
Crew : 7
Armament : Type1 47mm Canon X 1, 25mm Machine Gun X 1, Type97 7.7mm Heavy Machine Gun X 2
