Naval Reconnaissance Aircraft PAGE

2000 / 11 / 7 New.


None
Kugisho R1Y1 "Seiun" Long Range Reconnaissance Aircraft
(Type17 Experimental Reconnaisance Aircraft "Seiun")
Engine : Mitsubishi Ha42 Model 31 (2,400hp) X 2
Max Speed : 667Km/h
Service Ceiling : 11,700m
Range : 7,408Km
Crew : 3

Equipping of the Pressure Cabin was planned. This project was cancelled.

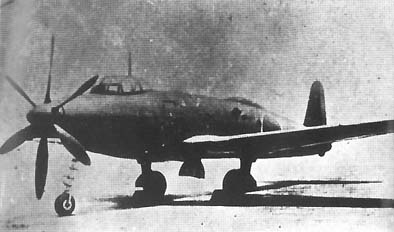

Kugisho R2Y1 "Keiun" Reconnaissance Aircraft
Length : 13.05m
Wing Span: 14.00m
Hight : 4.24m
Wing Area : 34.0 Square Meter
All-Up Weight : 8,100Kg
Empty Weight : 6,015Kg
Main Engine : Aichi Ha70 Watar Cooling Twin Engine (3,400hp) X 1
Max Speed : 741Km/h
Cruse Speed : 463Km/h
Service Ceiling : 11,700m
Range : 3,610Km
Crew : 2 - 3
Armament : None

The Exhaust Turbine, Pressure Cabin had equiped.
Now Printing
Kugisho R2Y2 "Keiun Kai" Turbojet Reconnaissance Aircraft / Attacker
Length : 9.25m
Wing Span: 14.00m
Wing Area : 34.0 Square Meter
All-Up Weight : 8,850Kg
Empty Weight : 5,700Kg
Main Engine : Ishikawajima Ne330 Turbojet (1,320hp) X 2
Max Speed : 796Km/h
Service Ceiling : 10,500m
Range : 1,269Km
Crew : 2 - 3
Armament : Torpedo or 800 Kg Bomb
