Transformer Offer
OutputTransformer

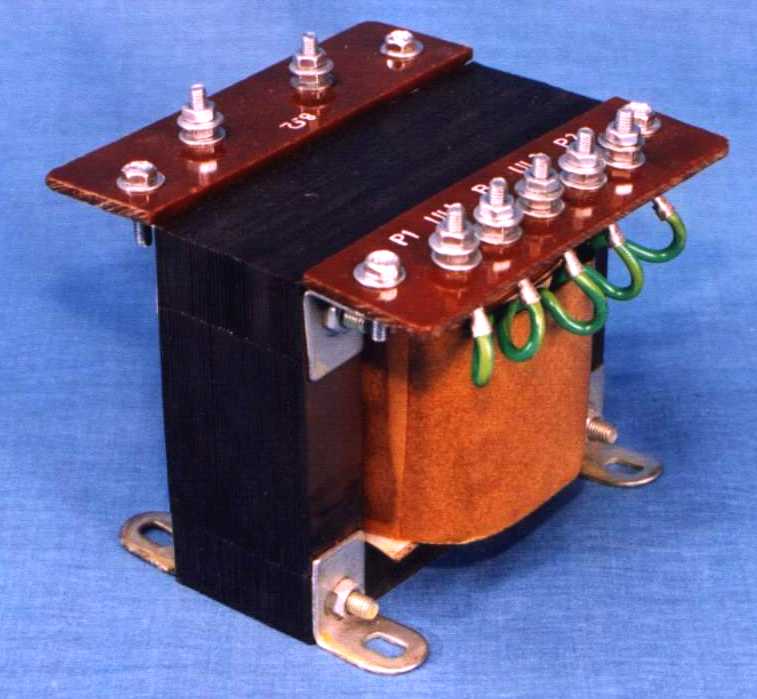

Push Pull Output Transformer
Single Ended Power Transformer

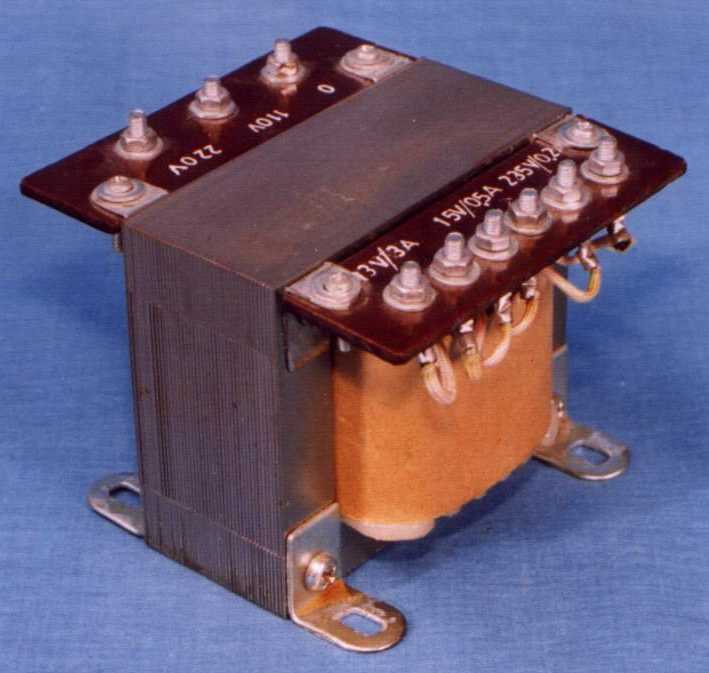

Power Transformer
Custom Made Power Transformer
Push Pull OPT Table :
| No | Type | Impedance | PowerRating (Watts) | Applications | Core Type | Freq. Response (Hz) |
App. weight (kg) | Price (USD) |
| 1 | 5000PP | 5kohm to 4 and 8 ohm + UltraLiniear taps 40% |
40 | 6L6, KT88, 807, KT66 | EI | 20 -26k | 2.7 | 35,- |
| 2 | 3000PP | 3kohm to 4 and 8 ohm + Ultraliniear taps 40% |
40 | EL34, KT88, 6V6, Etc | EI | 20-26k | 2.7 | 35,- |
| 3 | 3400PP | 3k4 ohm to 4 and 8ohm +Ultraliniear taps 40% |
40 | EL34 , 6CA7, KT77 Etc | EI | 20-26k | 2.7 | 35,- |
| 4 | 6600PP | 6600ohm to 4 and 8 ohm +Ultralinear taps | 40 | 6L6, KT66, Etc | EI | 20-26k | 2.7 | 35,- |
| 5 | 2000PP | 2kohm to 4 and 8 ohm +Ultraliniear taps
40% |
100 | PushPull paraleled | EI | 17-30k | 8 | 70,- |
| 6 | 1800PP | 1k8 ohm to 4 and 8 ohm +Ultralinier
taps 40% |
100 | Push-pullparaleled | EI | 17-30k | 8 | 70,- |
| 7 | 9000PP | 9kohm to 4 and 8 ohm +Ultralinear taps
40% |
100 | KT88, EL84, etc | EI | 17-30k | 8 | 70,- |
| 8 | 800PP | 800 ohm to 4 and 8 ohm | 100 | 6C33 PP Class A | EI | 17-30k | 8 | 70,- |
Single Ended Output Transformer
Pricing Table
| No | Type | Impedance | PowerRating (Watts) | Applications | Core Type | Freq Response (Hz) |
App. Weight (kg) | Price (USD) |
| 1 | 5000SE | 5kohm to 4 and 8 ohm | 10 | 300B, Etc | Air Gap EI |
20-27k | 2.6 | 40,- |
| 2 | 3500SE | 3k5ohm to 4 and 8 ohm | 10 | 300B, Etc | Air Gap EI | 20-27k | 2.6 | 40,- |
| 3 | 2500SE | 2k5ohm to 4 and 8 ohm | 10 | 2A3 | Air Gap EI |
20-27k | 2.6 | 40,- |
| 4 | 1750SE | 1750ohm to 4 and 8 ohm | 20 | 2x300B, 2x2A3 Etc | Air Gap EI | 20-27k | 7 | 60,- |
| 5 | 9600SE | 9k6 ohm to 4 and 8 ohm | 25 | 811-10, 811-3 Etc | Air Gap EI |
20-33k | 7 | 65,- |
| 6 | 5300SE | 5k3 ohm to 4 and 8 ohm | 25 | 845, 211 Etc | Air Gap EI | 20-33k | 7 | 65,- |
Custom Made Power Transformer
Pricing Table
| No | Power Rating (VA) | Price (USD) |
| 1. | 0-15 | 7.2 |
| 2. | 15-30 | 11 |
| 3. | 30-45 | 15 |
| 4. | 45-60 | 19 |
| 5. | 60-75 | 22 |
| 6. | 75-90 | 25 |
| 7. | 90-100 | 28 |
| 8. | 100-120 | 32 |
| 9. | 120-140 | 36 |
| 10. | 140-160 | 40 |
| 11. | 160-180 | 44 |
| 12. | 180-200 | 48 |
| 13. | 200-225 | 52 |
| 14. | 225-250 | 57 |
| 15. | 250-275 | 60 |
| 16. | 275-300 | 67 |
| 17. | 300-325 | 69 |
| 18. | 325-350 | 72 |
| 19. | 350-375 | 76 |
| 20. | 375-400 | 80 |
| 21. | 400-425 | 84 |
| 22. | 425-450 | 88 |
| 23. | 450-475 | 94 |
| 24. | 475-500 | 97 |
| 25. | 500-525 | 100 |
| 26. | 525-550 | 103 |
| 27. | 550-575 | 108 |
| 28. | 575-600 | 112 |
| 29. | 600-625 | 115 |
| 30. | 625-650 | 118 |
| 31. | 650-675 | 122 |
| 32. | 675-700 | 125 |
| 33. | 700-750 | 133 |
| 34. | 750-800 | 140 |
| 35. | 800-850 | 148 |
| 36. | 850-900 | 155 |
| 37. | 900-950 | 162 |
| 38. | 950-1000 | 175 |
Example for Power Transformer
rating calculation :
In order to make you understand how to calculate
the transformer rating here I provide you an example.

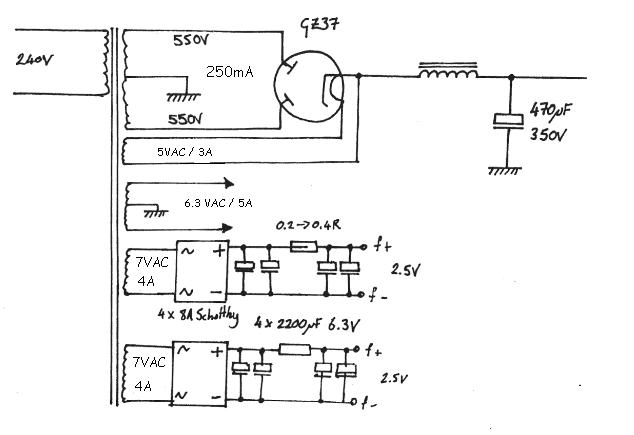

The picture above shows us and power supply circuit
for a an audio circuit ( SE, PP, Pre Amp, Etc)
Primary terminal connected to 240VAC/60Hz and
at the secundair terminal it produces 5 different type of voltage 550, 5,
6.3, 7, dan 7 VAC.
The Power calculations are as follows :
1) 2 x 550V x 250mA =
275 VA (multiply by 2 because
of Centre tap )
2) 5V x 3A
= 15 VA
3) 6.3V x 5A
= 31.5 VA
4) 7V x 4A
= 28 VA
5) 7V x 4A
= 28 VA
-----------------------------------------------
Total power output
= 377.5 VA
On the pricing table 377.5VA
stands on the range of power rating 375-400VA.
It means the price is USD 80,-
All the prices are subject
to Ex-Work Jakarta and in US Dollar currency
For further information about custom
made OPT, price, payment, order, delivery schedule , etc, please do not hesitate
to contact me at sap_or_id@yahoo.com
