Scrap
Computer Audio Source
Project (SCASP)
|
PURPOSE:
To develop a low cost, stand-alone, self contained audio
source for experimental broadacasting.
APPROACH: To use widely available, low cost, second hand and surplus
computer hardware in conjunction with shareware and freeware to keep the
project simple.
CRITERIA: A successful
SCASP unit will be inexpensive to build, use common parts, no special
skills required, will allow unattended operation and will provide useful
programming material, in quality, quantity and vartiety.
|
|
|
|
What's
this all about? Part 15 AM experimental broadcasters
need a cheap, automated audio source. I made DOS based WAV and MP3
players using old PCs with almost no parts left, available at no cost.
What hardware was used?Old PC chassis, 486 chips, 1 MB RAM modules, an ISA 256KB VGA video card, an AT power supply, floppy drive, a 15" monitor (640X480 std VGA - 256 colors) and keyboard. The speaker output was connected
ot the audio input of a part 15 AM transmitter.
What software was used? The approach was to use DOS freeware, bootable
floppies, audio files, a DOS batch file controlled event scheduler utility, and some neat DOS players (you can find the software used listed below).
|
|
What has been accomplished? Three different systems have been created during experimentation:
A basic floppy system, a RAM based approach, and a SCASP + Hardware system coordinating multiple audio units, described in more detail below:
Floppy system (limited programming material) First, created a bootable floppy with the DOS OS, Config.sys and Autoexec.bat files. Next, added a player called AB.exe and a couple of very short Station ID WAV files prepared as specified in the AB docs. The PC booted, AB.exe was called from the command prompt and run. The WAV file played throught the speaker output, and sound quality was more than adequate for AM. The speaker volume was adjusted using an L-Pad (8 Ohm volume knob) and played at a level that is compatible with the Weather Radio volume. During IDs, both play simultaneously.
Revision II - Modified the Config.sys file to create a RAM disk 4 meg in size, and after boot up had the Autoexec.bat file copy the ID audio files, AB.exe, the scheduler Bywhen.exe, and play.bat files to the RAM drive. Had the Autoexec.bat file call the play.bat file as its last command. The SCASP unit
played the audio files from RAM using Bywhen.exe to play one of three IDs every 10 minutes. This solution is 100% non-mechanical, and was used to broadcast periodic Station IDs under the NOAA WX material, as shown below:
Revision III - Added a basic ISA sound card, and replaced AB.exe with a command line MP3 player. Used Lame to encode WAVs to MP3s, so many more Station IDs will fit in RAM. Ran a total of 15 Station IDs in this mode.
|
Revision IV
Added an old Sound Blaster 16 sound card with a roland daughterboard. This provides the hardware support to play MIDI or MP3 audio files. Next, added a command line MIDI player that works well with the roland board, and kept the command line MP3 player. Using this approach, brief music interludes were possible if a method of switching audio sorurces was available.
Revision V

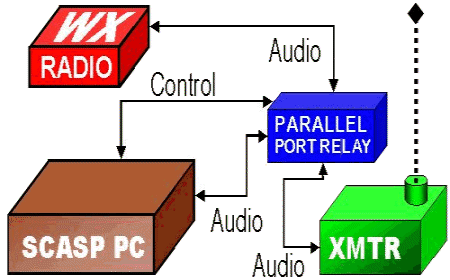

Added a parallel port controled audio relay circuit, and updated the batch file with a parallel port utility called LPTOUT.exe
Now the DOS box can run an MP3 bumper, play a couple of MIDI files, then instruct the parallel port to switch
the audio source to NOAA weather radio for 15 minutes. After the alloted time, the parallel port will switch back to the PC sound card as the audio source, play an MP3, play a few more midis, play an MP3 bumper,
back to NOAA weather, play an MP3 PSA, and continue perpetually - all on a DOS batch file with a few
utilities running.
| |
Revision IV

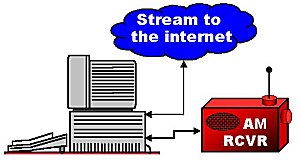

Unified the SCASP automated station audio and webcast by patching together a WIN 98 166 PC and an old windows media 7.1 encoder and server. An AM radio, tuned to SCWIS, is connected to the sound card input of the streaming PC and the encoder is configured to use the sound card line in connector as the audio source. | |
Part 15 content from the DOS box output to the transmitter, then to the radio and through the encoding PC to the web - total automation, total integration.
|
